FAW TIGER VH flathead single row driver cab,
3860mm wheelbase,
YC4D130-33 yuchai 130hp diesel engine, 96KW/130hp, 4214ml displacement, Euro 3 emission standard
6T115 wanliyang 6-speed manual gearbox, Φ330 clutch
GM-TRACAR25 diverter, jieman brand
GMFARQ25760-FAW jieman brand front drive steering axle(2.7T), 340 Punch welding bridge rear axle(7T),
7.50R16 tires, China-made ling long brand
Maintenance-free storage batteries, air cut braking,with PTO(flange), 80L steel oil tanker, leaf spring pieces 10/10+9
 |
 |
Description
| Main technical parameters | |||

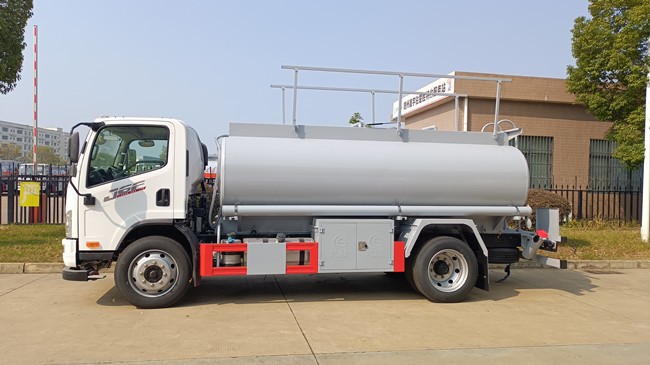

| Faw 4*2 LHD/RHD 6000Liters fuel tanker truck for sale | |||
| Total mass(Kg) | 8495 | Tank volume(Liters) | 6000 |
| Rated mass(Kg) | 3800 | Overall dimension(mm) | 6900×2250×2900 |
| Curb mass(Kg) | 4500 | Driver cab person | 3 |
| Approach/departure angle(°) | 17/14(°) | Front/rear suspension(mm) | 1330/1820(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3860 |
| axle load (Kg) | 2890/5605 | Max speed (Km/h) | 79 |
| Chassis main parameters | |||
| Chassis model | CA1080 | Chassis manufacturer | FAW Company |
| Tyre specification | 7.50R16 rail tires | Tyre nos. | 6+1 |
| leaf spring | 10/10+9 | Front tread(mm) | 1810(mm) |
| Fuel type | Diesel | Rear tread(mm) | 1740(mm) |
| Transmission | 6T115 Wanliyang 6-speed manual gearbox | Air-conditioner | Yes, |
| Power steering | Yes | Front/rear bridge | 2.7tons/7tons |
| Clutch model | Ф330 | Truck frame | 237×65×7 |
| brake | Air brake | Driver cab | FAW VH flat-head single-row driver cab |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| YC4D130-33 | Yuchai | 4214 | 96 |
| Engine type | 4cylinders in line inter-cooled diesel engine | ||
| other Equipment or performances | 1 The fuel tanker shape is an ellipse, adopts high-quality GB carbon steel material, and the oil tanker volume is 8000 liters. | ||
|
1, 1* compartment and several anti-wave sheets 2, 1* carbon steel oil pump (pump-in and pump-out) 3, 1* Euro standard manhole, 4, 1*sub-sea valve(aluminum ally emergency shutoff device) 5, 1*oil unloading valve(without eyepiece) 6, 1*oil-gas recovery system 7, 1*anti-overflow probe pedestal 8, Tanker top-mounted manual folded carbon steel guardrail/top-mounted anti-slide sidewalk, 9,2* firefighting extinguishers 10, Sound and light alarm system 11,1* toolbox, 1*unloading box,1* fuel dispensing machine cabinet(below 15cbm) 12, Stainless steel hose box, Male and female plug lamps and lanterns, Plastic barrel cover and fire extinguisher cover, Punch the ladder step 13, simple reflective logo
|
|||
| 15, The truck is painted metallic coating. | |||
