Chassis Truck: FAW 4X2
Vaccum Tank: 5,000 Liters volume
Engine: DACHAI/CA498E3-12/120HP/Euro 3
Transmission: WLY5-35/5+1 Gears Manual
Size: 6,500*2,300*2,570mm
Shipping Weight: 4390kg
Wheelbase: 3mm
 |
 |
 |
 |
Description

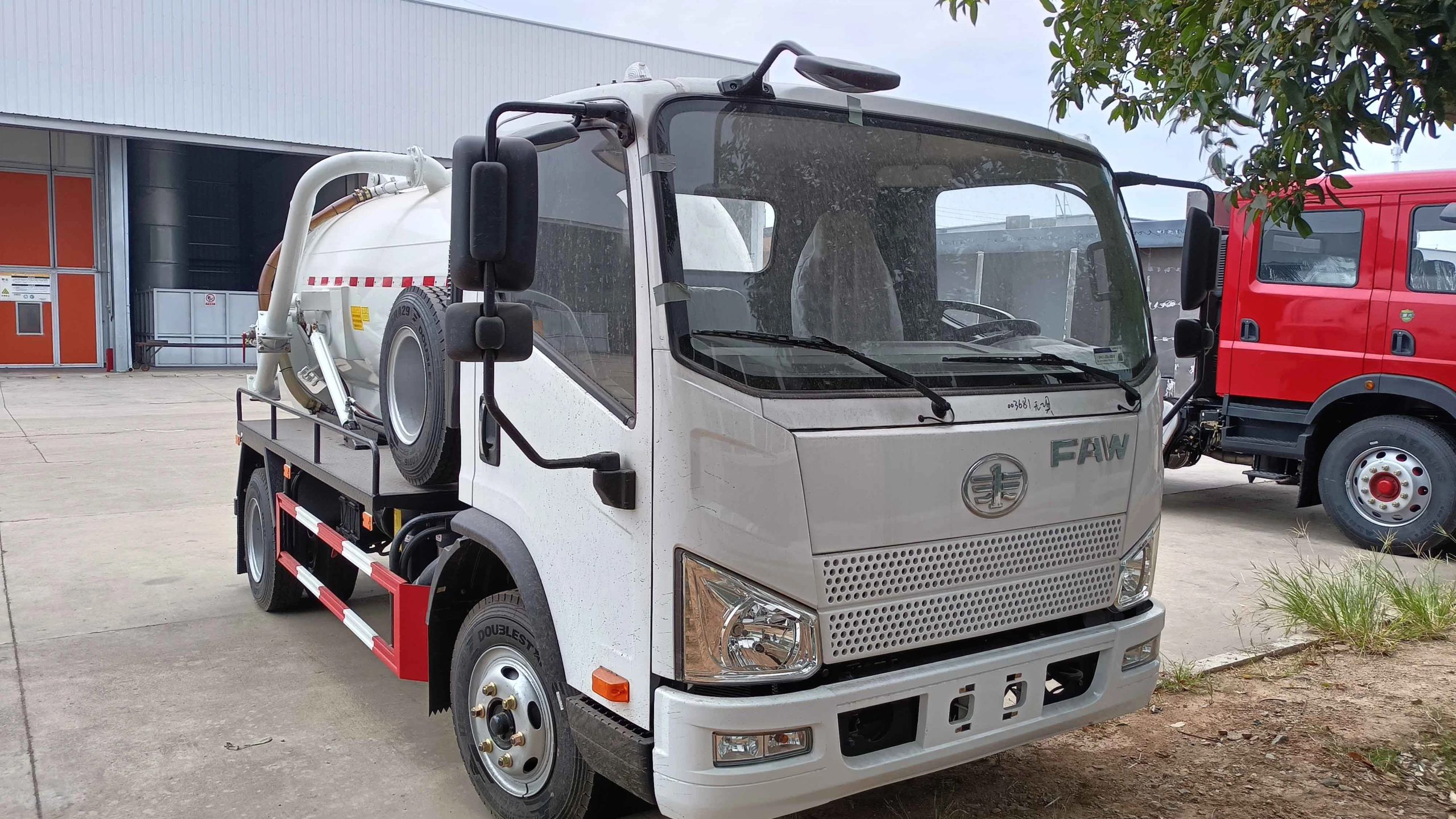

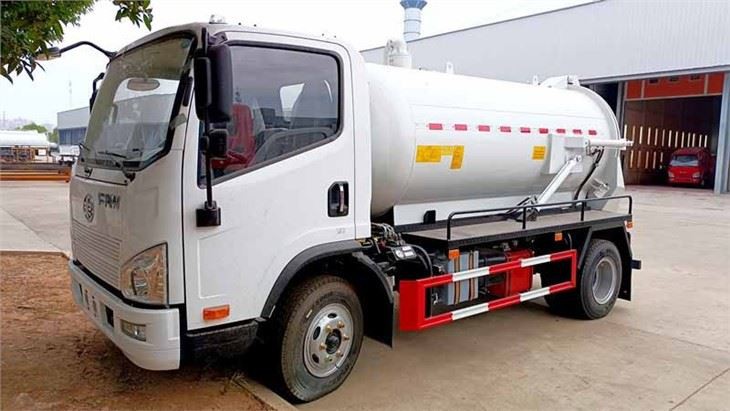

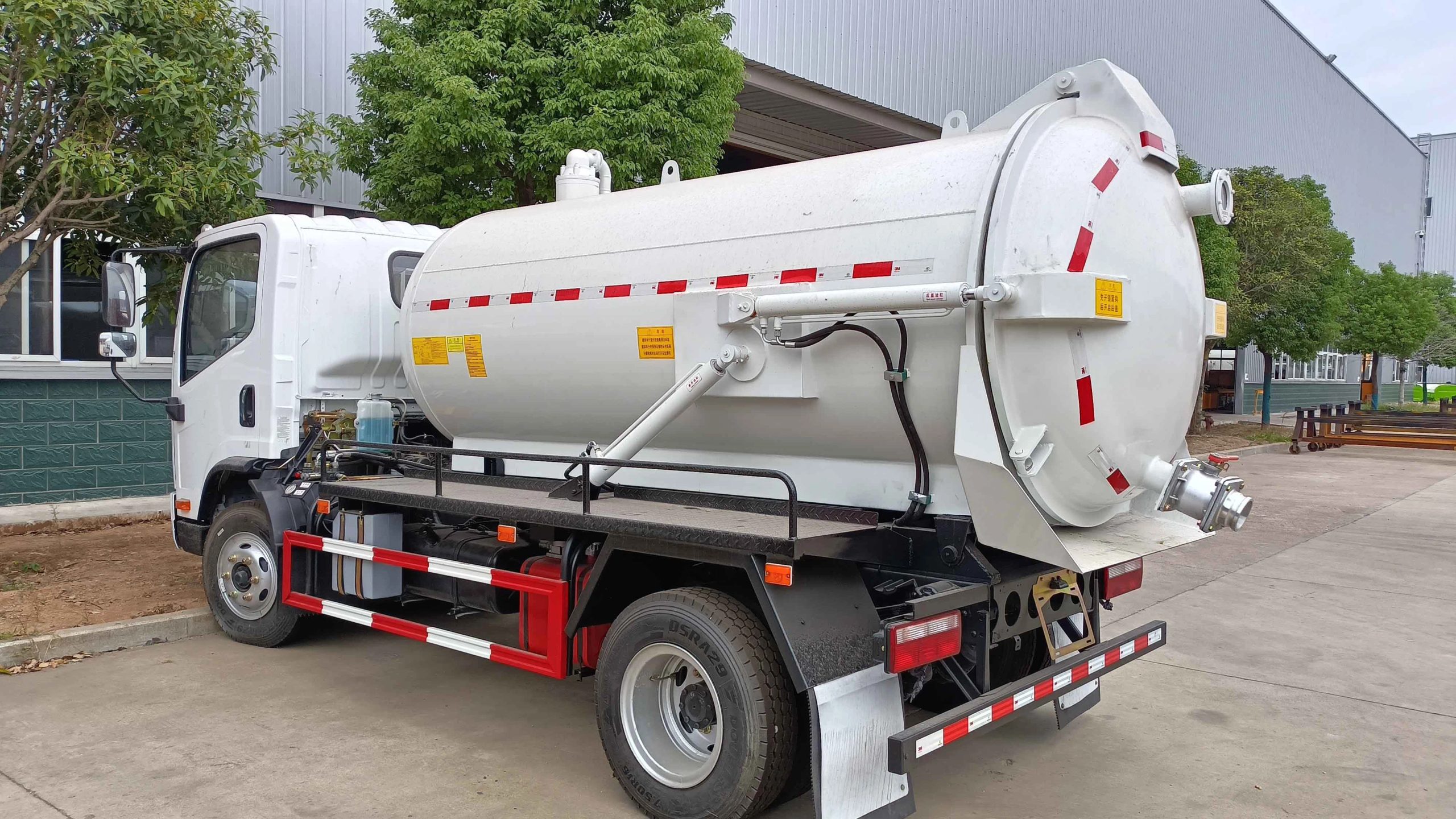

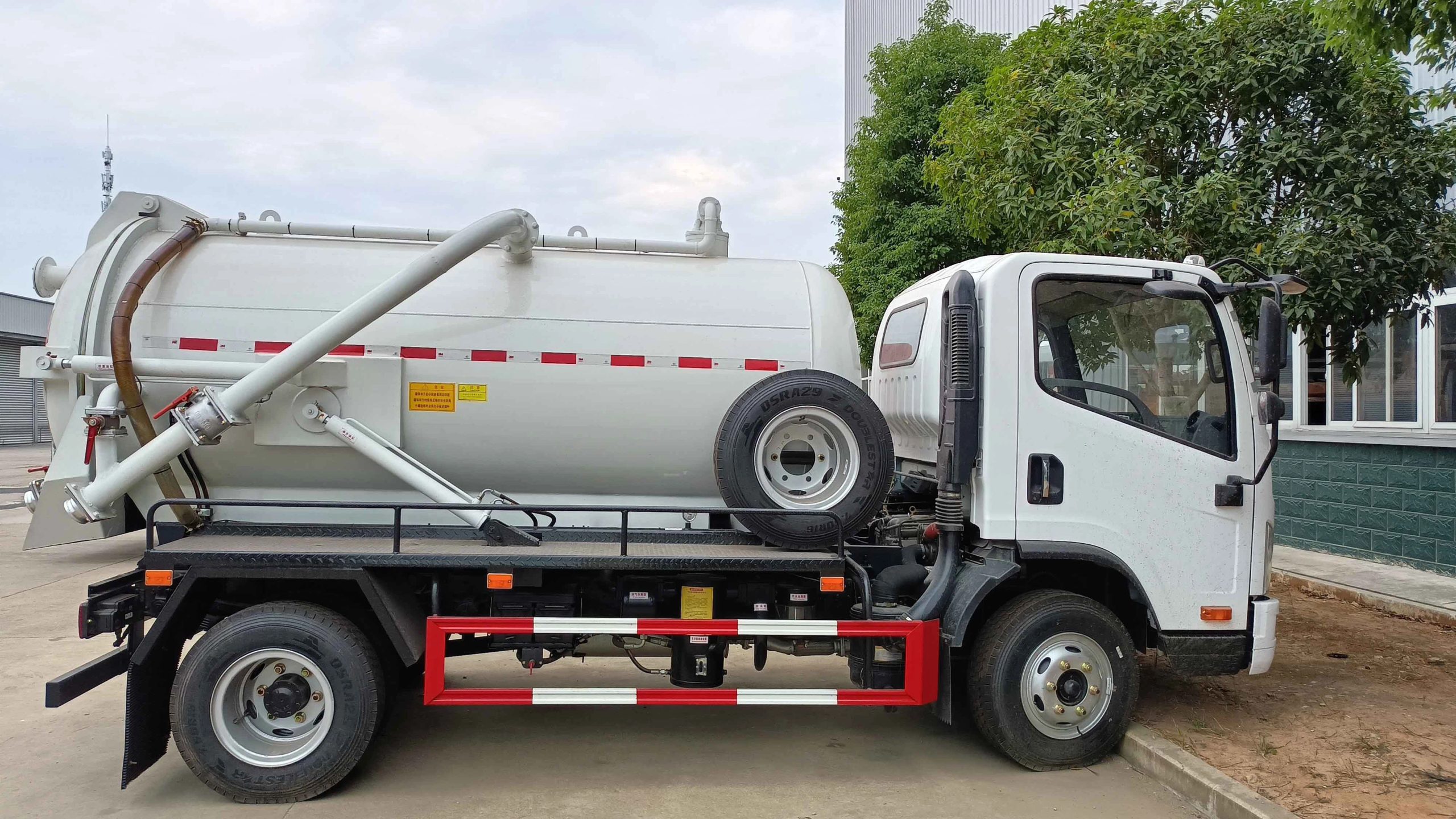

The FAW Liquid Waste Removal Sewer Truck is suitable for human waste & sewage sucking. The round sewer tanker shape has strong pressure resistance than the oval sewer tanker shape. The vacuum pump is specialized for suitable in clients’ using environments, very durable. And the anti-flow system was installed to protect the complete vacuum pump system on the sewer truck.
Capacity: 5,000 liters
Shape: Round Cylindrical
Material: High quality mild steel
Thickness: 6mm tank, 8mm head, 4mm partition
Reinforcing Ribs: installed on surface of sewer tanker to increase the strength of the tank
Tank Testing: The tank is hydrostatically tested.
The hydraulic cylinder is made of high-pressure galvanized steel, with good hardness and pressure resistance, anti-corrosion and rust resistance,
durable. Double oil cylinder self-unloading, which is more convenient and faster to dump sewage without fear of blockage by large pieces of dirt.
Strictly set secondary protection for the vacuum pump to prevent pollution from immersing in the pump body to ensure sufficient vacuum
degree for sewage suction. The drive adopts manual operation, The hydraulic oil pump and the vacuum pump act synchronously, and the work is stable and reliable.

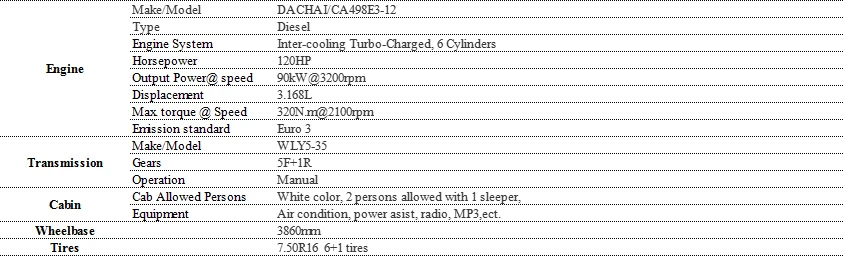

SPECIFICATION
