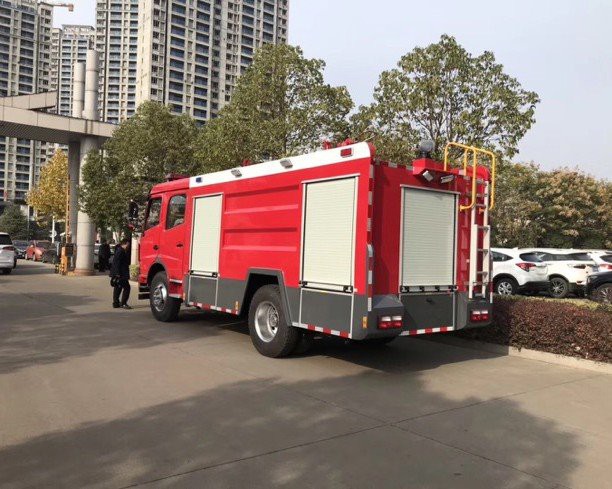

Model Number: CSC5180GXFPM60
Chassis Available for 4×4, RHD
5000 lit water, 500 lit foam 500kg powder
CB40.10 fire pump
PF30 Monitor
 |
 |
 |
Description
5.2 Foam proportioning system
Brand
China Fire
Model
PHA125B
Capacity
1200~7500l/min
Pressure
0.6~1.2Mpa
Rato rate
1%~10%
Type
Electrical auto (with manual emergency)
Design
Automatic type making it possible to induct foam to the water at the correct Proportioning ratio, independent of pump pressure and discharge
5. Frame body
|
Overall layout |
The front and two sides of the middle of the body are storage compartments. The aluminum alloy shutters are installed at both sides of the body and the back of the pump compartment. Ladder installed location based on client’s requirement. |
|
Technological requirements |
All welding panels and skeleton steels are through strict process of anti-rust and anti-corrosion. After completing welding of the tank, the tank will be clear up and removed possible defects such as empty solder. And then it will be through 24-hour hydrostatic test to assure no leakage. |
|
Material |
The outer frame of the body are all high quality Q235A(while water tank and foam tanks are stainless steel), the inner frame use high strength aluminum alloy, the bottom panel adopt aluminum panels with anodic oxidation treatment. |
|
Door |
The doors are aluminum alloy structure with locks which are good sealing and dustproof. |
|

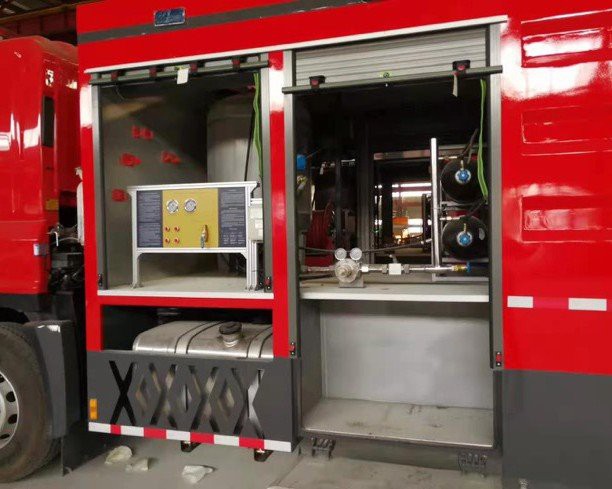

Equipment/devices/parts inside of frame |
The frame of equipment frame is used aluminum alloy material with inner-connecting technique to improve space utilization efficiency and changeability. According to the necessary of firefighting maneuver and operating procedure, all the accessory equipment are anti-corrosion，shockproof, anti-drop, anti-scratch with push or pull special fixture and in reasonable space arrangement, compact, solid fixture, bold marks, convenient access. |
6. Piping system
|
Suction piping |
1pc DN135 quick suction hole at the rear of the pump room with filter screen and pneumatic Butterfly valve switch |
|
Injection pipeline |
2pc DN65 injection holes on both sides, 1 DN80 injection hole inside pump room |
|
Outlet pipeline |
4pc DN80 normal pressure outlets at the rear,2 DN65 medium pressure outlets at both side,1 DN135 pipeline in the pump room |
|
Cooling pipeline |
Cooling pipeline, control valve to cooling PTO |
|
Cover |
All inlet and outlet holes with covers |
7. Fire control system dashboard
|
Display and control |
Marks on all operation buttons, with pipeline layout and operation/maintenance illustration. Dashboard lays upper-left in the pump room with RPM/Vacuum/water pressure/liquid level indicator and lighting/valves control switches |
|
PRM control of pump |
Control in the drive cabin Remote manual control in the pump room |
|
Operation panel |
Consist of fire pump, fire monitor ,pipeline system, system operation panel |
8. Electrical & communication system
|
Traffic installation |
In compliance with Pakistan highway codes, comprising head lights, brake / stop lights, traffic indicators, reverse lights and license plate lights |
|
Illumination lights |
Automatic switching on lighting system for the interior of cab, pump compartment and storage lockers when doors are opened. Headlamps are installed in the pump compartment and storage compartment. operating dashboard is equipped with lighting switch, indicator light.etc. It is convenient for observation. |
|
Signal system |
Two red rotating beacons on the cab roof, integrated public address system and siren. Long red light 1 piece, which is installed on the top of the cabin; Electronic alarm 1 piece, which is installed in the cabin; The control box is installed below in front of the driver |
|
Search light |
Two search lights with 70 watt halogen bulb, one in front of the cabin and one on the rear of the vehicle |
|
Side flashing light |
A set of red and blue flashing lights are installed on both sides of the vehicle body. |
|
Main power |
The vehicle battery is installed battery main switch. |
9. Painting
|
Finish |
The overall appearance is sprayed with fire-fighting red (R03) baking paint, consistent with the chassis |
|
Color |
Chassis and body color are red. It meets the national standard GB/T3181. |
|
Marking |
3M reflective marking strips are added; 3M reflective marking strips are added around the body and pedals |
11.The accessories equipment list
|
Item |
Item |
unit |
quantity |
|
1 |
sucking hose |
piece |
4 |
|
2 |
water filter |
piece |
1 |
|
3 |
Water collector |
piece |
1 |
|
4 |
Adapter |
piece |
2 |
|
5 |
Adapter |
piece |
1 |
|
6 |
sucking pipe wrench |
piece |
2 |
|
7 |
fire hydrant wrench |
piece |
1 |
|
8 |
underground fire hydrant wrench |
piece |
1 |
|
9 |
water hose |
disc |
8 |
|
10 |
water hose |
disc |
4 |
|
11 |
straight stream nozzle |
piece |
1 |
|
12 |
diversion spray nozzle |
piece |
1 |
|
13 |
Foam nozzle |
Piece |
1 |
|
14 |
Foam nozzle |
piece |
1 |
|
15 |
Water distributor |
piece |
1 |
|
16 |
hose protector |
pair |
2 |
|
17 |
Fire spade |
1 |
|
|
18 |
Fire crowbar |
1 |
|
|
19 |
hose hook |
piece |
2 |
|
20 |
hose gaiter |
piece |
4 |
|
21 |
fire axe |
piece |
1 |
|
22 |
pickax |
piece |
1 |
