FOTON AUMAN 4×2 Chassis Truck
WEICHAI 270HP Diesel Engine
9F+1R Manual Transmission
10,000L Capacity Tank
Weilong/JUROP/MORO/BP Vacuum Pump
PINFL/Pratissoli High-Pressure Jetting Pump
 |
 |
 |
 |
Description
DESCRIPTION

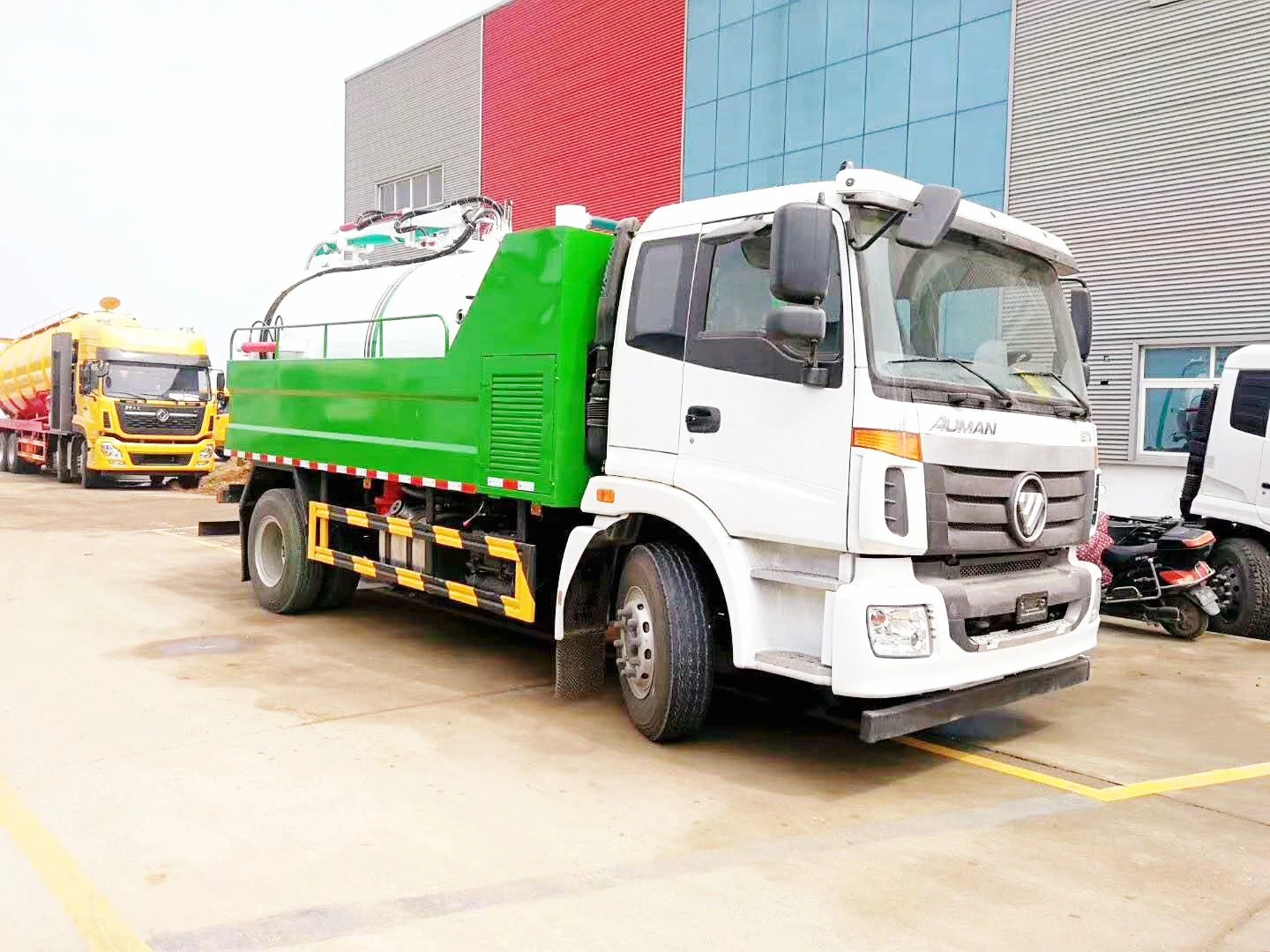

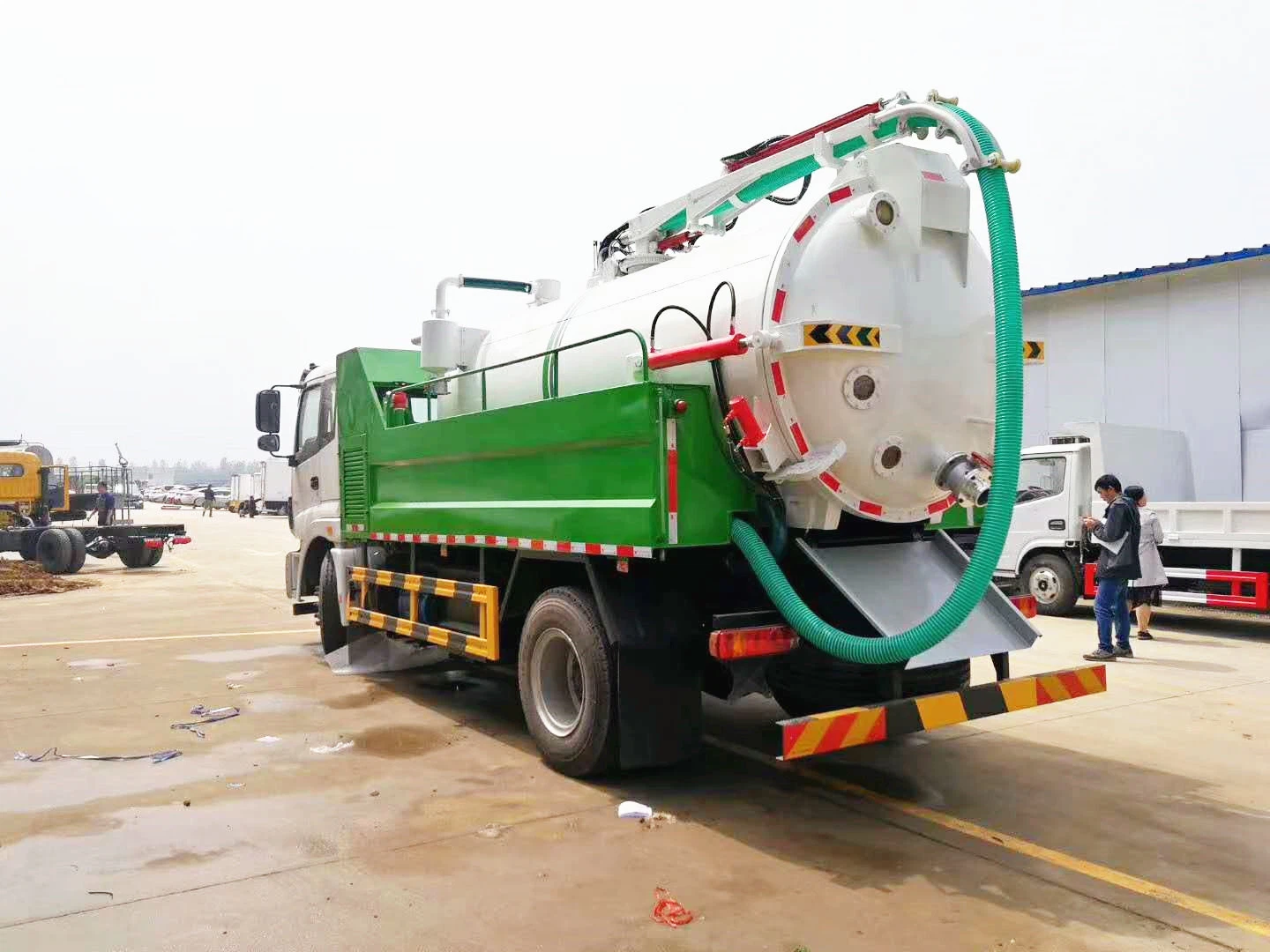

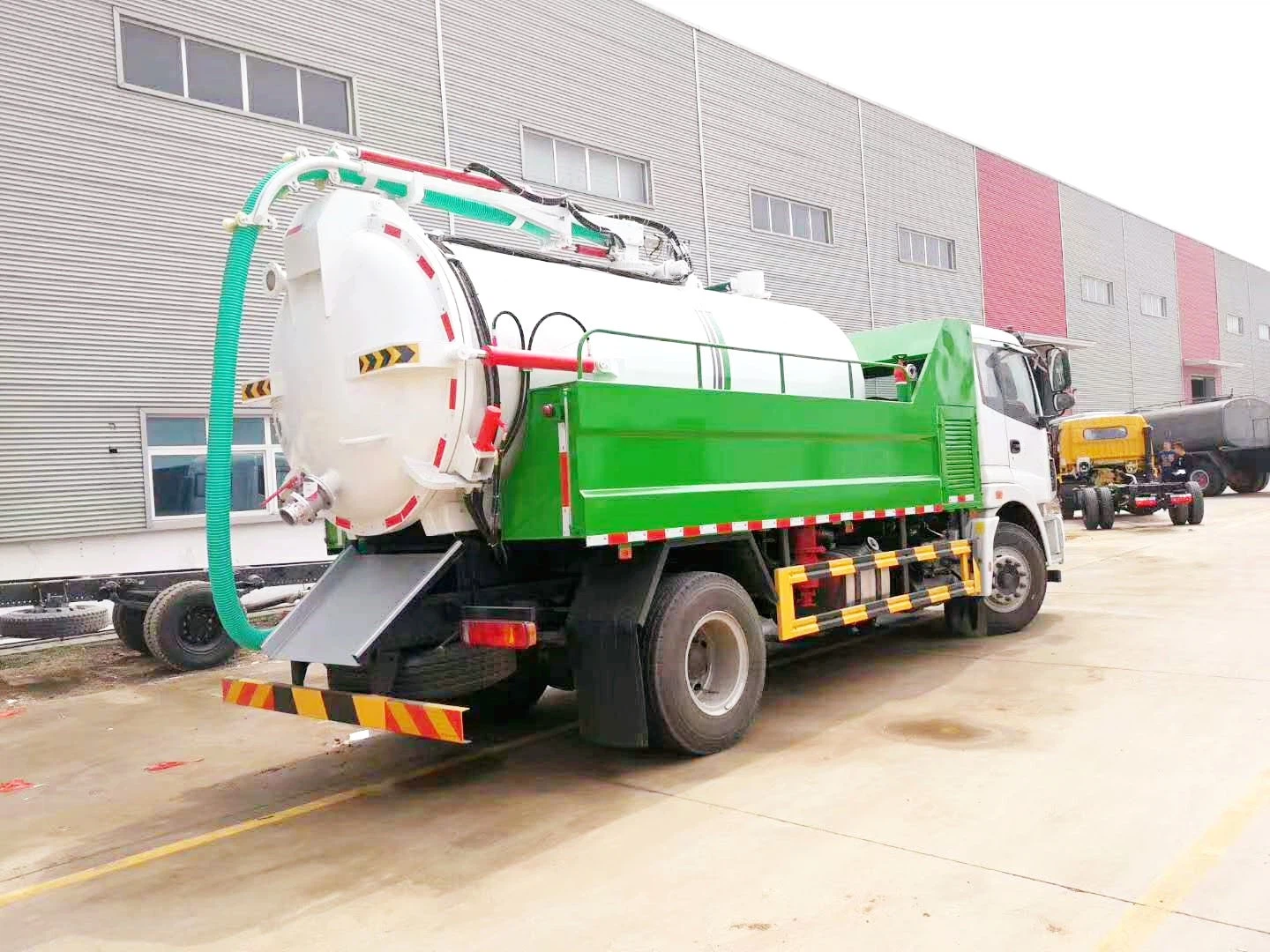

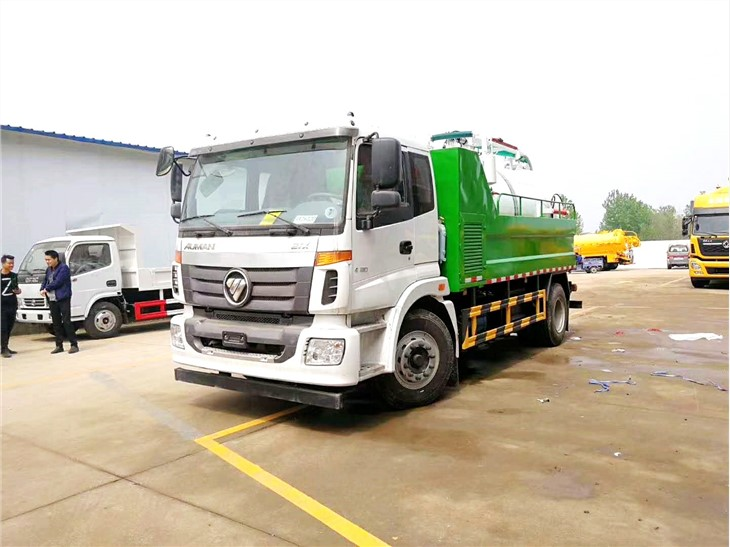

The FOTON 10,000L Combined Sewer Jetting Truck is mounted on the FOTON AUMAN chassis. Combined Jet-Vac truck works by the principle of trusting and breaking effects of high pressured water for opening any blockage shutting the sewer system and after destroying the blockage; all the remaining sludge, wastewater, and half of the solid waste is collected inside the sludge tank by the strong vacuum force created by means of the vacuum pump.
FEATURES
Construction
All steel electric welded construction from 6 mm steel plate.
ASTM A-36/S275JR with 8mm dished and flanged ends.
6mm internal baffle plates
Vacuum Pump
8,100-lit/min free air delivery, vacuum pump. Integral changeover valve allowing selection of “vacuum” to draw air out of the tanker “pressure” to blow air into the tank.
– Max capacity 8,100lts/min.
– Max. Vacuum: -95% (28” Hg)
– Max. Speed (R.P.M): 1400
Safety Devices
-Automatic air cutout valve protection to prevent tank contents from entering the pump. (Primary cutoff)
-Pressure relief valve
-Vacuum relief valve
-Vacuum/Pressure Gauge
-Sludge indicator
-Safety pot with ball valve (secondary cutoff)
-Silencer
SPECIFICATION
| Chassis | |
| Size | 8,110×2,500×3,160mm |
| GVW/Curb Weight | 1,800kg/8,400kg |
| Wheelbase | 4,600mm |
| Front/Rear Axle | 6.5T/11.5T |
| Tire | 11.00R20, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP10.270E32/270hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/9JS119T-B |
| Gears | 9F+1R |
| Operation | Manual |
| Cabin | |
| Driving | FOTON AUMAN 4×2 Day Cab, Left/Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Capacity | 10,000L |
| Shape | Cylindrical |
| Material | Q235B Carbon Steel |
| Thickness | Shell Cover 8mm, Tank Body 6mm |
| Vacuum Pump | |
| Type | Water Cooling or Air Cooling |
| Brand | Weilong, JUROP, MORO, BP |
| Flow Rate | 6,000~35,000LPM |
| Ultimate Pressure | -97000Pa |
| Suction Hose Length | 8 meters + optional 4 meters |
| High-Pressure Jetting Pump | |
| Drive-By | PTO |
| Working Pressure | 16-24Mpa |
| Water Flow Rate | 75~275LPM |
| Reel Hose | 80 meters + optional 40 meters |
| Water Tank | Front or side installed |
| Basic Equipment |
Vacuum pump, ball valve, suction pipe, pressure meter, inspect windows, cleaning system, hoist base, oil-water separators, overflow valve, etc. |
| Optional Equipment | Tanker material: stainless steel. Vacuum pump: Italy or Spain vacuum pumps. Anti-rust coating inside tankAnti-flow devices |
