Product performance characteristics ●Walking system: The chassis of the Foton era small truck is used as the chassis of the whole machine. Bodywork power system: diesel engine, water cooling, electric start. ●Control system: mainly consists of power assembly switch, heat conduction oil, sealant,…
 |
 |
 |
Description
Product performance characteristics

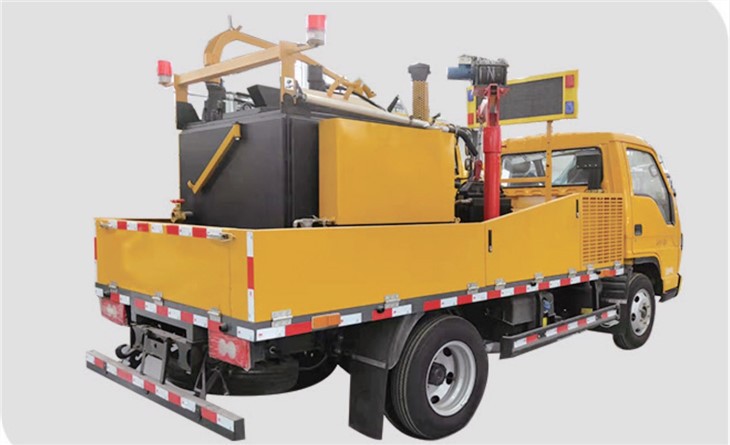

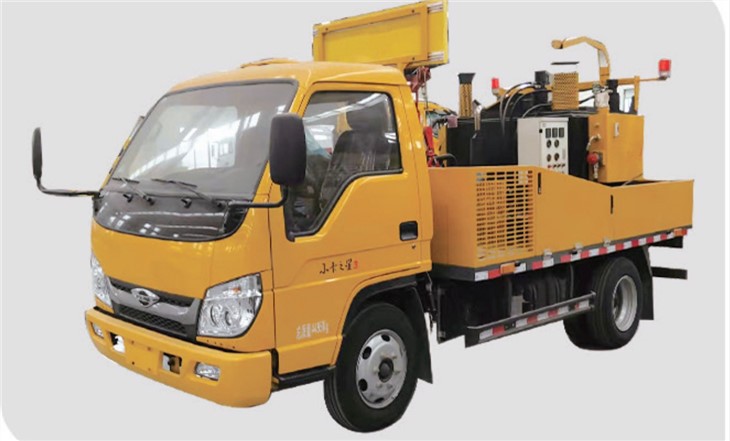

●Walking System: The chassis of the Foton era small truck serves as the chassis for the entire machine.
●Bodywork Power System: diesel engine with water cooling and electric start.
●Control System: Consisting mainly of a power assembly switch, heat conduction oil, sealant, electric heating hose, heating temperature control display, material pump switch, air compressor, and other components.
●Hydraulic System: Made up of a hydraulic valve group and other components, with power derived from the engine.
●Heating System: Composed of two main parts: a melting pot and a burner.
●Pumping System: Comprised mainly of a pumping system, material pump, rotating device, and electric components, including a heating hose, electric control for conveying material, and a road brush.
|
Name |
Description |
Specification |
|
Cab Truck |
Cab Truck Brand / Model |
FOTON BJ1045 |
|
GVW |
4495kg |
|
|
Heating Container |
Capacity |
800L |
|
Heating Way |
Diesel heating |
|
|
Structure |
Jacketed type |
|
|
Heat Conduction Method |
Heat conduction oil indirect heat transfer |
|
|
Mixing Way |
Vertical two-way horizontal stirring |
|
|
Electric heating hose |
Length |
6m |
|
temperature control |
40-200°C adjustable |
