Capacity 4CBM+1.5CBM

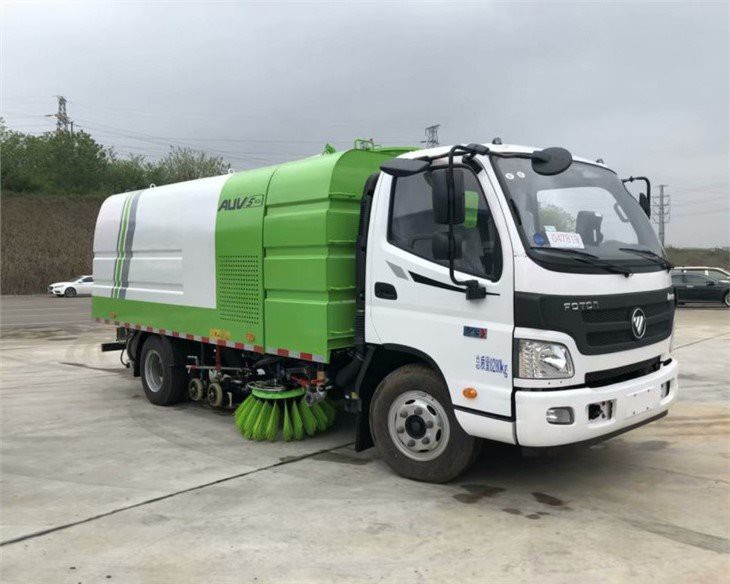

Model AUMARK-C33
Cummins 141hp Engine
Truck Size 5875×2030×2230mm
Wheelbase 3360 mm
 |
 |
Description
Tanks
volume
Water tank volume: 1.5 square dustbin volume: 4 square
Box body material
Material of tank: stainless steel
Dash material: stainless steel
Sub-engine brand and power
Isuzu Engine Co. Ltd
Cleaning the width
2.8-3.0m
Operation ability
38000(m2/h)
Cleaning speed (km/h)
15-20
Cleaning speed (km/h)
3-15
Suction capacity
Density (g/cm3) : 2.0 mass (kg) : 1.5 suction particle size (mm) : ≥100
Garbage box tipping Angle
≥45°
Cleaning efficiency
≥96%
The fan system
Special high pressure centrifugal fan, desktop fan (maintenance free) rated working speed 2700r/min
Suction nozzle device
The suction nozzle is suspended between the rear wheels of the chassis car, which is composed of a suction nozzle, a roller and a straw. The suction nozzle body can be moved along with the suction nozzle, and the suction nozzle lifting oil cylinder is controlled.
Scanning plate Angle adjustment
Forward scanning plate: forward 5°~15° outward 5°~10° rear scanning plate: forward 5°~10° inward 5°~10
Single sweep plate with the number of brushes
22
Vice frame
Vice beam at the tank bottom
Q345 carbon steel plate
