Truck Model: CSC5180ZYSD6
Garbage container volume: 15CBM
Hopper material: Q345
Compression ratio: up to 1/5
 |
 |
 |
 |
Description
garbage compactor 15CBM
Brief
Truck Model: CSC5180ZYSD6
Garbage container volume: 15CBM
Hopper material: Q345
Compression ratio: up to 1/5
Description: The CSC high-performance garbage compactor truck is a garbage compression vehicle with high compression rate, large loading capacity, fast operation efficiency, and low noise. Garbage thrown into the hopper is first crushed by the press plate and then compressed and compacted by the ejection plate inside the body. Collected garbage can be easily discharged from the body by operation of the ejection plate. The refuse compactor can comprehensively solve the common problems such as small capacity, small compression force, and low operating efficiency of compression vehicles. The advanced level of features for loading, compacting and transportation are sure to meet clients’ need. CSC has developed over decades of experience for truck manufacturing.

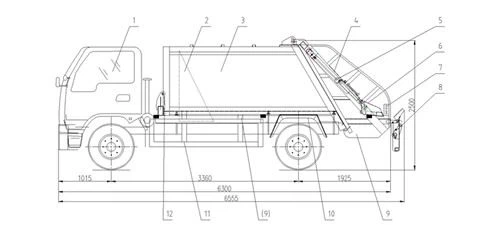

3.3 Structure:
 |
1: chassis | 2: box body |
| 3: discharging mechanism | 4: hopper | |
| 5: lift mechanism | 6: compressionmechanism | |
| 7: flex mechanism | 8: charger mechanism | |
| 9: hydraulic system | ||
Parts of Structure
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Garbage compactor Parameters
|
General |
|
|
Truck Model |
CSC5180ZYSD6 |
|
Chassis Brand |
Dongfeng |
|
Driving type |
According to customer’s request |
|
GVW |
18000kg |
|
Curb weight |
11200kg |
|
Axle No. |
2 |
|
Wheelbase |
5000mm |
|
Approach / Departure angle |
17 / 10° |
|
Tire No. |
6+1spare tire |
|
Tire Specs. |
10.00R20 |
|
Max. Speed |
90km/h |
|
Front axle capacity |
5000kg |
|
Rear axle capacity |
10000kg |
|
Engine |
|
|
Brand |
YUCHAI |
|
Horsepower |
260HP |
|
Emissions standard |
Euro3 |
|
Type |
4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
|
Transmission |
|
|
Brand |
FAST |
|
Model |
MLD |
|
Forward/reverse |
10F/2R |
|
Type |
Manual |
|
Cab |
|
|
Type |
Single-Row Cab with Air Conditioner |
|
Color |
Usually white |
|
Garbage compactor upper structure |
|
|
Garbage container volume |
15CBM |
|
Garbage container material |
16Mn Manganese steel |
|
Hopper material |
Q345 |
|
Hydraulic system pressure |
18MPa |
|
Compression ratio: |
up to 1/5 |
|
Feeding cycle time |
≤25s |
|
Unloading cycle time |
≤40s |
|
PLC brand |
Germany Siemens |
|
Hydraulic cylinder control way |
Manual mechanical control and Electrical auto control |
|
Unloading cylinder |
1set Control push shovel’s push off and retraction |
|
Lifting cylinder |
2sets Control recompression’s lifting and down |
|
Up & down cylinder |
2sets Control slider’s moving up and down |
|
Scraper cylinder |
2sets Control scraper’s retraction and strengthen |
|
Hopper cylinder |
2ets control hopper’s open and close |
|
Safety valve |
Equipped on tailgate to prevent sudden fall during maintenance |
