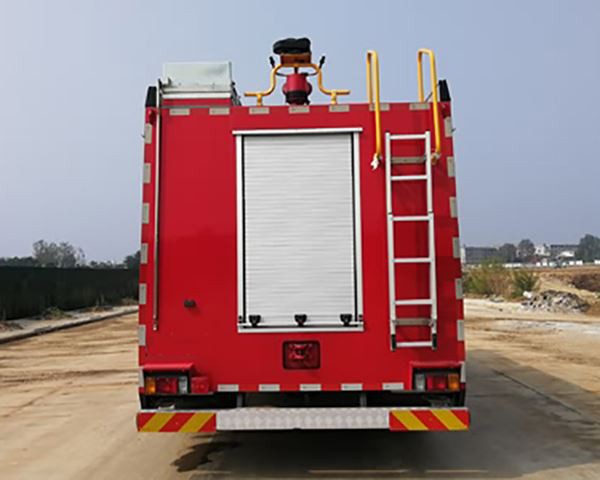

GIGA 8 CBM Water Foam Unit Fire Truck 6,000L water tank & 2,000L foam tank fire fighting truck Model Number: CSC5172GXFPM60 1. Description ☆ CHASSIS: CSC5172GXFPM60 Water & Foam Fire Truck mounted base on the ISUZU GIGA 4×2 fire vehicle chassis, original 2 doors open. The chassis engine power is…
 |
 |
Description
4 DN80 normal pressure outlets at the rear
Cooling pipeline、control valve to cooling PTO
To raise temperature in pump room(optional)
☆ ELECTRIC
|
Additional electrical |
Independent circuit |
|
Auxiliary lighting |
Headlamps are installed in the pump compartment and storage compartment. operating dashboard is equipped with lighting switch, indicator light.etc. It is convenient for observation. |
|
Side flashing light |
A set of red and blue flashing lights are installed on both sides of the vehicle body. |
|
The warning device of the cabin |
Long red light 1 piece, which is installed on the top of the cabin; Electronic alarm 1 piece, which is installed in the cabin; The control box is installed below in front of the driver |
|
The fire lighting |
The fire lighting 1 piece remote omni-directional rotation fire lighting |
|
The main power |
The vehicle battery is installed battery main switch. |
☆ PAINTING
|
1. Finish: The overall appearance is sprayed with fire-fighting red (R03) baking paint, consistent with the chassis. |
|
2. Color: The cab and truck body are fire-fighting red, the interior of the equipment room is light gray, the aluminum color of the aluminum rolling door, the chassis frame and the wheel hub are phosphate black bottom, the rim is silver, fenders, fenders, and bumpers It is dark gray. 3. 3M reflective marking strips are added; 3M reflective marking strips are added around the body and pedals; 4. The color standard of the paint film meets the requirements of R03 red in the national standard GB/T3181. |
☆ On-board equipment
|

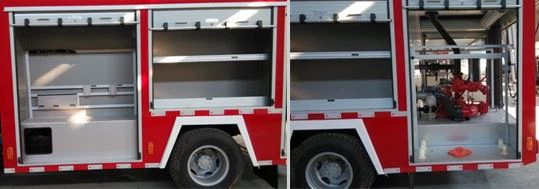

The frame of equipment frame is used aluminum alloy material with inner-connecting technique to improve space utilization efficiency and changeability. According to the necessary of fir fighting man oeuvre and operating procedure, all the accessory equipment’s are anti-corrosion，shockproof ,anti-drop, anti-scratch with push or pull special fixture and in reasonable space arrangement, compact, solid fixture, bold marks, convenient access.
|
☆ The accessories equipment list
|
Item |
Item |
parameters |
unit |
quantity |
|
1 |
sucking hose |
Φ150×2ｍ |
piece |
4 |
|
2 |
water filter |
Φ150 |
piece |
1 |
|
3 |
water collector |
Φ150mm×Φ65mm |
piece |
1 |
|
4 |
sucking pipe wrench |
Φ150ｍｍ |
piece |
2 |
|
5 |
fire hydrant wrench |
FB450 |
piece |
1 |
|
6 |
underground fire hydrantwrench |
FBA800 |
piece |
1 |
|
7 |
13 type water hose |
Φ80ｍｍ×20ｍ |
disc |
4 |
|
8 |
20 type water hose |
Φ80ｍｍ×20ｍ |
disc |
4 |
|
9 |
20 type water hose |
Φ65ｍｍ×20ｍ |
disc |
4 |
|
10 |
13 type water hose |
Φ65ｍｍ×5ｍ |
disc |
2 |
|
11 |
adapter |
Φ80ｍｍ×Φ65ｍｍ |
set |
4 |
|
12 |
straight stream nozzle |
piece |
1 |
|
|
13 |
diversion spray nozzle |
piece |
1 |
|
|
14 |
Foam nozzle |
PQ4 |
piece |
1 |
|
15 |
Foam nozzle |
PQ8 |
piece |
1 |
|
16 |
Out-sucking foam hose |
Φ40 |
set |
1 |
|
17 |
triple head distributor |
Φ80 inlet Φ65 outlet |
piece |
2 |
|
18 |
rubber hammer |
piece |
1 |
|
|
19 |
extension ladder |
6m |
piece |
1 |
|
20 |
hose protector |
rubber |
pair |
2 |
|
21 |
hose hook |
piece |
8 |
|
|
22 |
hose gaiter |
piece |
8 |
|
|
23 |
fire axe |
piece |
1 |
|
|
24 |
fire extinguisher |
2kgABC |
piece |
1 |
