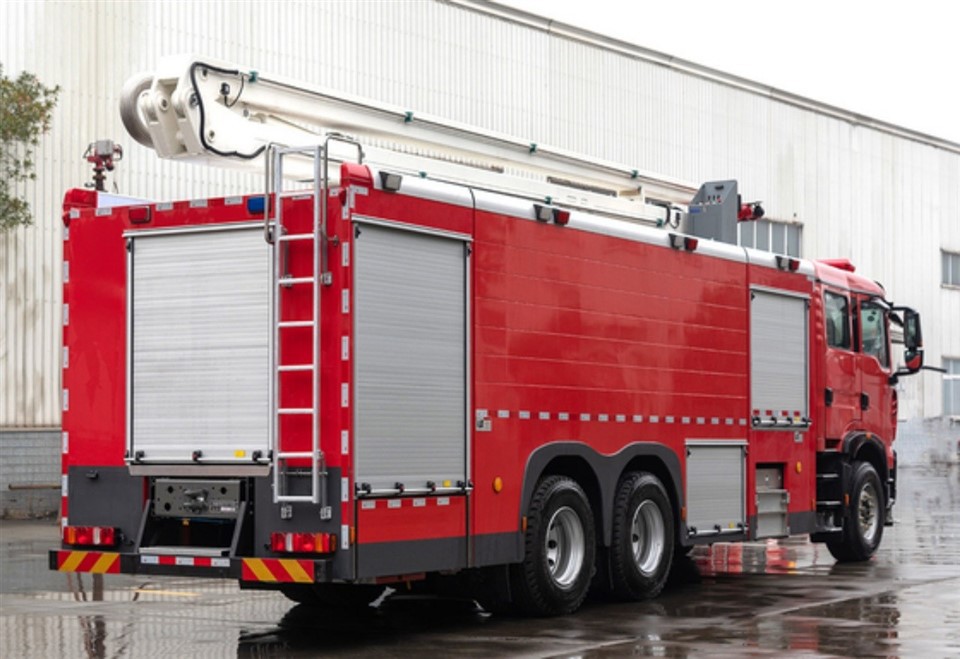

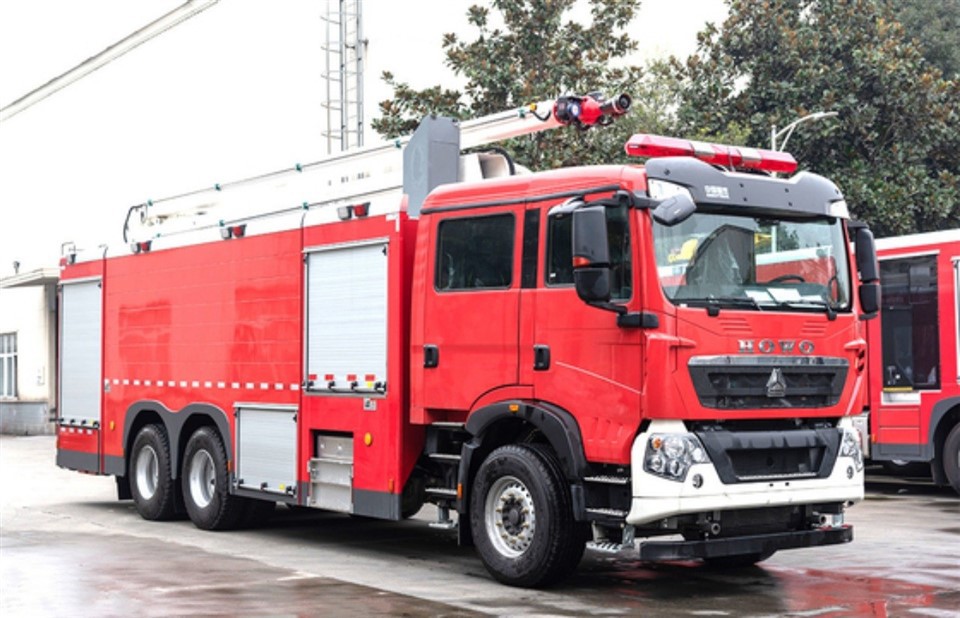

HOWO 20M Water Tower Fire Apparatus

Model No.: CSCWTFA020.
Max. working height: 20m.
18,000L Water and 2,000L Foam Tank.
Overall Dimensions(LxWxH): 11,980×2,540×3,990mm.
Chassis Brand: Sinotruk Sitrak.
Drive Type: 6×4.
Emission Standard: Euro 6.
Max. Speed: 85km/h.
Full Load Weight: Approx. 42,000kg.
Fire pump model: CB10/170-C.
Rated pressure: 1.0MPa.
Rated flow: 167L/s.
Fire monitor model: PLKD10/120-C.
Rated flow: 120L/s.
Shooting Range: Water≥95m, foam≥90m.
Tank Material: PP composite material.

BRIEF

The HOWO 20M water tower fire apparatus, produced by CSCTRUCK, is a high-performance fire-fighting vehicle designed for rapid response and efficient fire suppression in various environments. Built on the Sinotruk Sitrak chassis with a 6×4 drive type, the vehicle is powered by a Euro 6-compliant engine, ensuring both environmental responsibility and high power output. It has a maximum driving speed of 85km/h, allowing for swift movement across diverse terrains. The fire apparatus has a full loading weight of approximately 42,000 kg, which supports its heavy-duty construction and water/foam delivery capacity.

Equipped with a 20-meter water tower, this water tower fire apparatus is capable of reaching a working height of up to 20 meters, offering an effective aerial firefighting solution. The system features an 18,000L water tank and a 2,000L foam tank, ensuring a substantial supply for sustained operations. The fire pump, CB10/170-C, provides a rated flow of 167L/s at a pressure of 1.0MPa, offering robust firefighting performance. The PLKD10/120-C fire monitor has a rated flow of 120L/s and can project water up to 95 meters and foam up to 90 meters, enabling long-range suppression.

The tank is constructed from durable PP composite materials, ensuring longevity and resistance to corrosion. This water tower fire apparatus combines reliability, power, and efficiency, making it ideal for urban and industrial firefighting operations.

FEATURES

1. High Reach & Water Delivery Capacity: Equipped with a 20-meter maximum working height, the apparatus features a CB10/170-C fire pump with a rated flow of 167 L/s and a 1.0 MPa rated pressure, ensuring efficient firefighting capabilities at high altitudes.

2. Advanced Firefighting Tools: The vehicle includes a PLKD10/120-C fire monitor with a 120 L/s rated flow and a shooting range of 95 meters for water and 90 meters for foam, enabling versatile firefighting operations in various conditions.

3. Large Water & Foam Capacity: The fire truck comes with an 18,000L water tank and a 2,000L foam tank, providing a significant amount of extinguishing agents for extended firefighting operations.

4. Robust & Efficient Chassis: The truck is built on a Sinotruk Sitrak 6×4 chassis, offering durability and reliability with a Euro 6 emission standard, ensuring a balance between power, efficiency, and environmental compliance.

5. Heavy-Duty & Fast: With a full loading weight of approximately 42,000 kg and a maximum driving speed of 85 km/h, the vehicle is designed for rapid deployment to firefighting sites while maintaining stability and handling even with a full load.

SPECIFICATION

1. Model: CSCWTFA020
2. Overall Dimensions(LxWxH): Approx. 11,980X2,540X3,990mm
3. Full Load Weight: Approx. 42,000kgs
4. Number of the Crew: 2(including driver)
5. Max. Speed: 85km/h
6. Compartment: Complete Aluminum Material and Never Rust
7. Capacity: 18,000L Water and 2,000L Foam. PP composite material liquid tank and Never Rust
8. Outrigger extending time: ≤30S
9. Arm operating time: ≤90S
10. Max. working height: 20m
11. Painting: Red Color or Others
