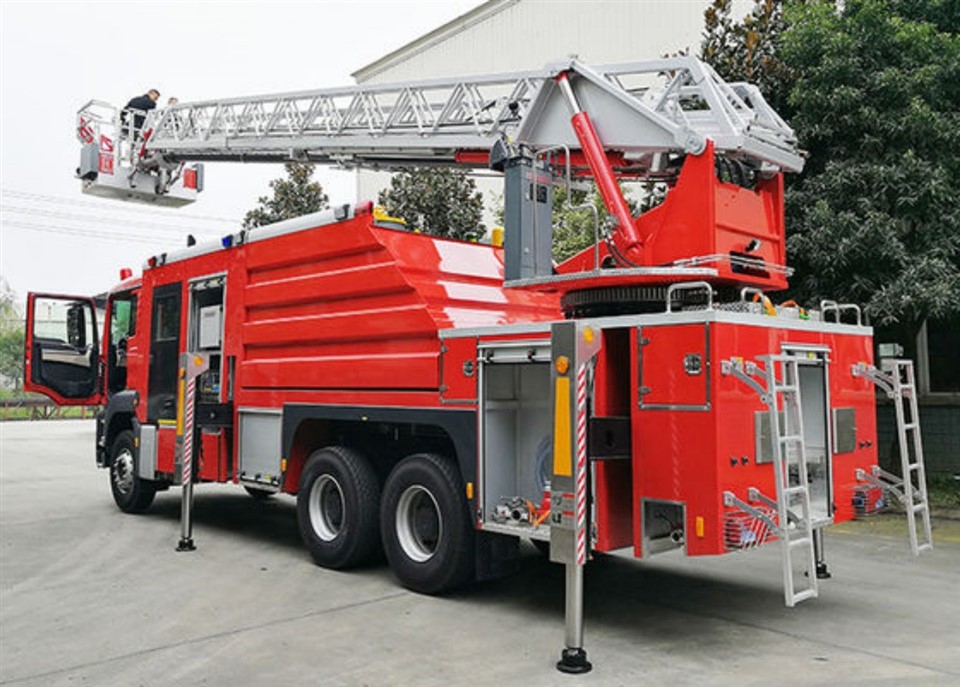

HOWO 32M Aerial Ladder Fire Truck

Model No.: CSCALFT032.
4,000L Water Tank & 1,000L Foam Tank.
Max. working height: 32M.
Overall Dimensions(LxWxH): 12,000×2,500×4,000mm.
Chassis Brand: Sinotruk HOWO T.
Drive Type: 6×4.
Engine Power: 327kW.
Full Load Weight: 34,000kgs.
Max. Driving Speed: 90km/h.
Fire Pump Brand/Model: CXFIRE/ CB10/100.
Rated Flow Rate: 100L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 950-5700L/min.
Shoot Range: Water≥70m, Foam≥60m.
Tank Material: PP composite material.

BRIEF

The HOWO 32M aerial ladder fire truck, manufactured by CSCTRUCK, is a robust and versatile firefighting vehicle designed to meet the demanding requirements of modern fire rescue operations. Built on the reliable Sinotruk HOWO T chassis, this truck is equipped with a 6×4 drive type and powered by a 327kW engine, ensuring reliable performance even in the most challenging conditions. With a full loading weight of 34,000 kg, it offers a high payload capacity to carry essential firefighting equipment and personnel.

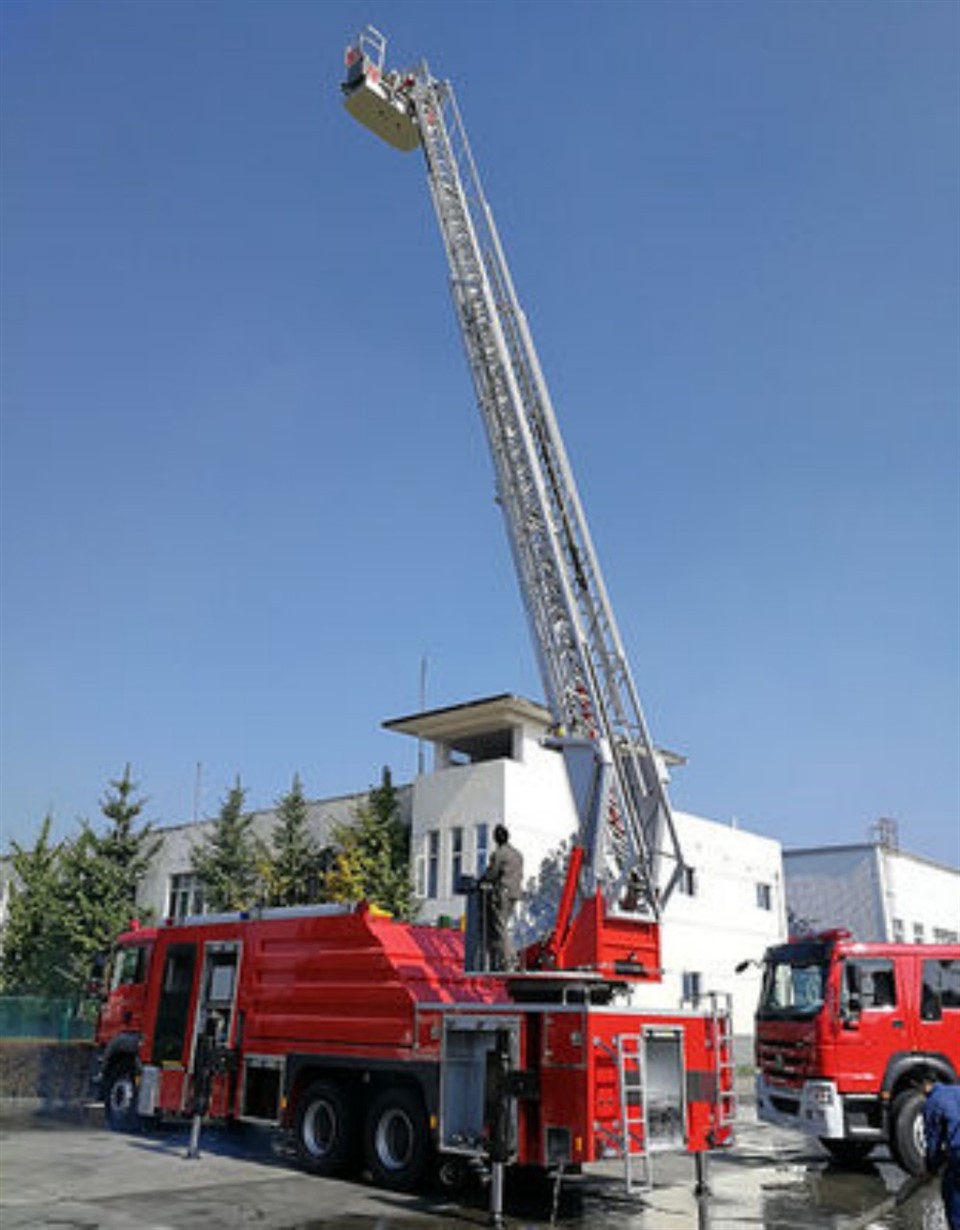

One of its standout features is the 32-meter maximum working height provided by its aerial ladder, allowing for efficient rescue and firefighting operations at significant heights. The ladder system is complemented by a powerful CB10/100 fire pump, with a rated flow rate of 100L/s at 10 bar, delivering ample water pressure to tackle fires effectively. The fire pump supports a wide flow range of 950-5,700L/min, catering to various firefighting needs.

The fire truck is also equipped with a 4,000-liter water tank and a 1,000-liter foam tank, both housed in a durable PP composite material tank. This large water and foam capacity ensures prolonged firefighting capability in large-scale incidents. Additionally, the fire monitor has an impressive shooting range: up to 70 meters with water and 60 meters with foam, enabling precise and long-distance firefighting. The truck’s maximum driving speed is 90 km/h, ensuring quick deployment to emergency sites.

For suction, the HOWO 32M aerial ladder fire truck offers a 7-meter suction height, allowing for efficient water sourcing from nearby bodies of water. This truck combines high performance, safety, and versatility, making it an invaluable asset for fire departments and rescue teams.

FEATURES

1. Advanced Aerial Ladder System: The fire truck is equipped with a 32-meter maximum working height aerial ladder, enabling effective firefighting and rescue operations at great heights, ideal for high-rise buildings or large structures.

2. Dual Water & Foam Tanks: The fire truck has a 4,000L water tank and a 1,000L foam tank, providing a versatile and long-lasting firefighting capability. The foam system is especially useful for fighting chemical or fuel-based fires.

3. Powerful Fire Pump and Flow Rates: It features a CB10/100 fire pump with a rated flow rate of 100L/s at 10 bar, ensuring high-pressure water discharge. The fire monitor supports flow rates from 950-5,700L/min with a maximum water shooting range of 70 meters and foam range of 60 meters.

4. Heavy-Duty Chassis and Engine: Built on a Sinotruk HOWO T chassis, the truck operates with a 6×4 drive type, powered by a 327kW engine. This robust configuration allows the fire truck to handle tough terrain and demanding firefighting conditions, with a full loading weight of 34,000 kg.

5. Reliable Performance and Durability: The truck can achieve a maximum driving speed of 90 km/h and is equipped with a PP composite material tank for enhanced durability, ensuring both longevity and resistance to harsh firefighting conditions.

These features combine to make the HOWO 32M aerial ladder fire truck an excellent choice for modern firefighting and rescue operations.

SPECIFICATION

2. Aluminum Superstructure

2.1 Cabin

Structure: Single row cabin with 2 doors.

Seats: 1+1, with a 3-point safety belt.

2.2 Standardized Sub-frame

Material: High-strength rectangular tube made of special steel

Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.

2.3 Compartment

Material: High-strength aluminum alloy profiles (Never Rust)

Structure: Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear.

2.4 Roller Shutter Door

Material: Aluminum alloy profiles with anodized surface.

Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, 2-point fixed seat, LED light, and sensors.

2.5 Foot Pedals

Material: High-quality aluminum alloy.

Structure: 50cm width, bearing more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment.

3. Fire Fighting System
