Water Tank Capacity: 6000L
Foam Tank Capacity: 450L
Driving type: 6×6, LHD
Engine: SINOTRUK,6 Cylinders
Wheelabse: 4600mm
Cab: Crew, 3+1 passengers seats
Transmission: 10F+2R,Manual
Fire Pump: CASC™ Capacity 3600LPM
Fire Monitor: WST™ Capacity 2880LPM
G.V.W: 14550kg
Overall size: 9.475×2.5×3.6m
 |
 |
 |
Description
Description:
Fire trucks, including water and foam fire trucks, are equipped with various essential firefighting tools and equipment. They typically feature steel ladders, water tanks, handheld fire extinguishers, self-contained breathing apparatus, protective gear, rescue tools, and first-aid supplies. In addition, these fire trucks are equipped with advanced firefighting equipment such as large water tanks, water pumps, and foam fire extinguishers to ensure maximum fire suppression capabilities.
Advantages
•The fire truck is equipped with a SINOTRUCK brand chassis, known for its perfect performance and powerful Cummins engine.
•The engine provides reliable performance and requires no overhaul for 100,000 km.
•The main frame structure is constructed with high-quality square tubes and features a non-slip roof that allows for safe walking.
•The sides of the equipment box are fitted with aluminum alloy rolling shutters and include lighting.
•For visibility during operations, a row of warning lights is installed on the top of the cab, each with a power of 100w. Additionally, there is one light above the rear of the vehicle.
The crew room and equipment box as well as the pump room are equipped with lighting for added convenience.
TECHNICAL SPECIFICATION:
| FF04ZZ270L3 | 6000L Water Foam Fire Truck | ||||
| HS Code | 8705309000 | ||||
| Overall Size | 9.475×2.5×3.6m | ||||
| Total Weight | 14550kg | ||||
| Brand new made in the year 2022 | |||||
| ZZ2167M4627C1 | Cab Truck | HOWO 6×6 Fire Truck | |||
| Wheelbase | 4600+1400mm | ||||
| HW76 | Cab | Crew Cab, 3+1 passengers seats | |||
| WD615.92C | Engine | SINOTRUK,6 Cylinders, Diesel, Turbocharge | |||
| HW15710 | Transmission | SINOTRUK 10F+2R,Manual | |||
| STR | Front Axle | Steering & driving axle, drum brake | |||
| ST16 | Rear Axle | 16 Ton Driving axle, Ratio 5.73 | |||
| Steering | Left Hand Drive | ||||
| 12.00R20 | Tires | 10+1 spare tire | |||
| Specific | Offroad bumper, Locking differential axle | ||||
| WT04 | Water Tank | SUS304, 6000 liters | |||
| FT304 | Foam Tank | SUS304 , 450liters | |||
| CB10/60-TB | Fire Pump | CASC™ Capacity 3600LPM | |||
| PLKD8/48 | Fire Monitor | WST™ Capacity 2880LPM ,Automatic control | |||
| Powder Tank | 100kg with Powder Dispenser | ||||
| Self-protection | Self-protection devise with activation from the driver’s cab. | ||||
| Refrigerator | Cab-in Equipped | ||||
| Specific | 230V Socket cab-in, body-in equipped | ||||

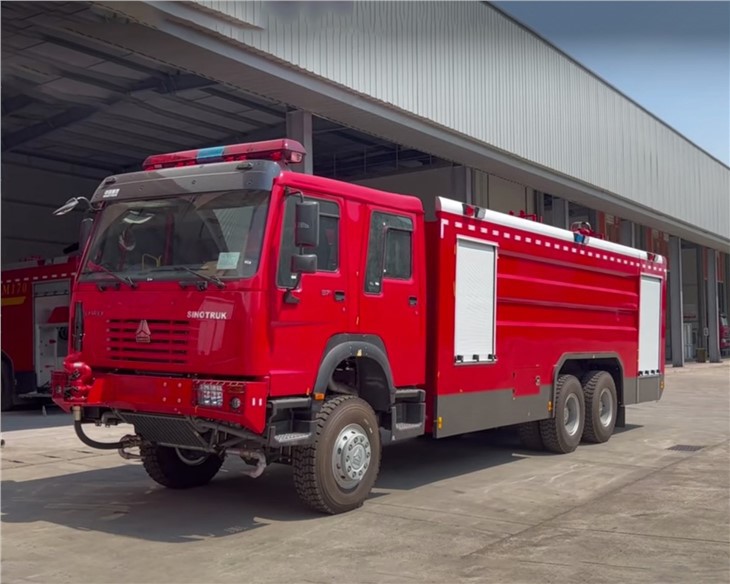

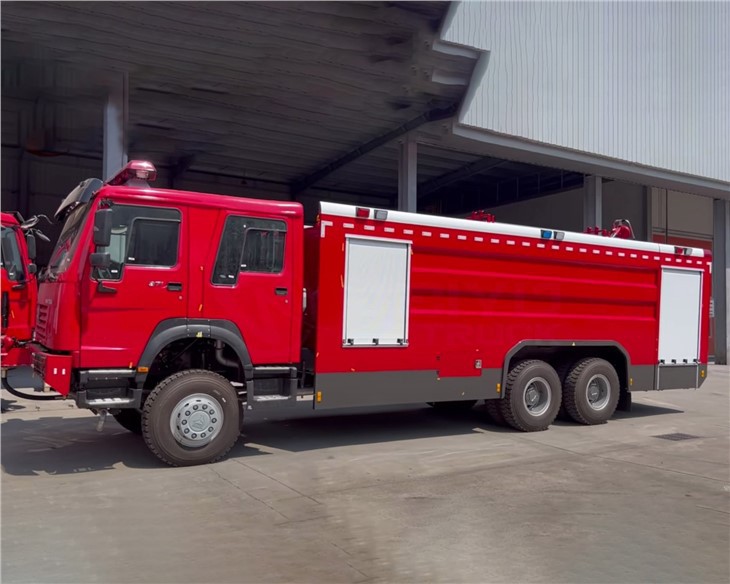

Product Details
Tools & Accessories

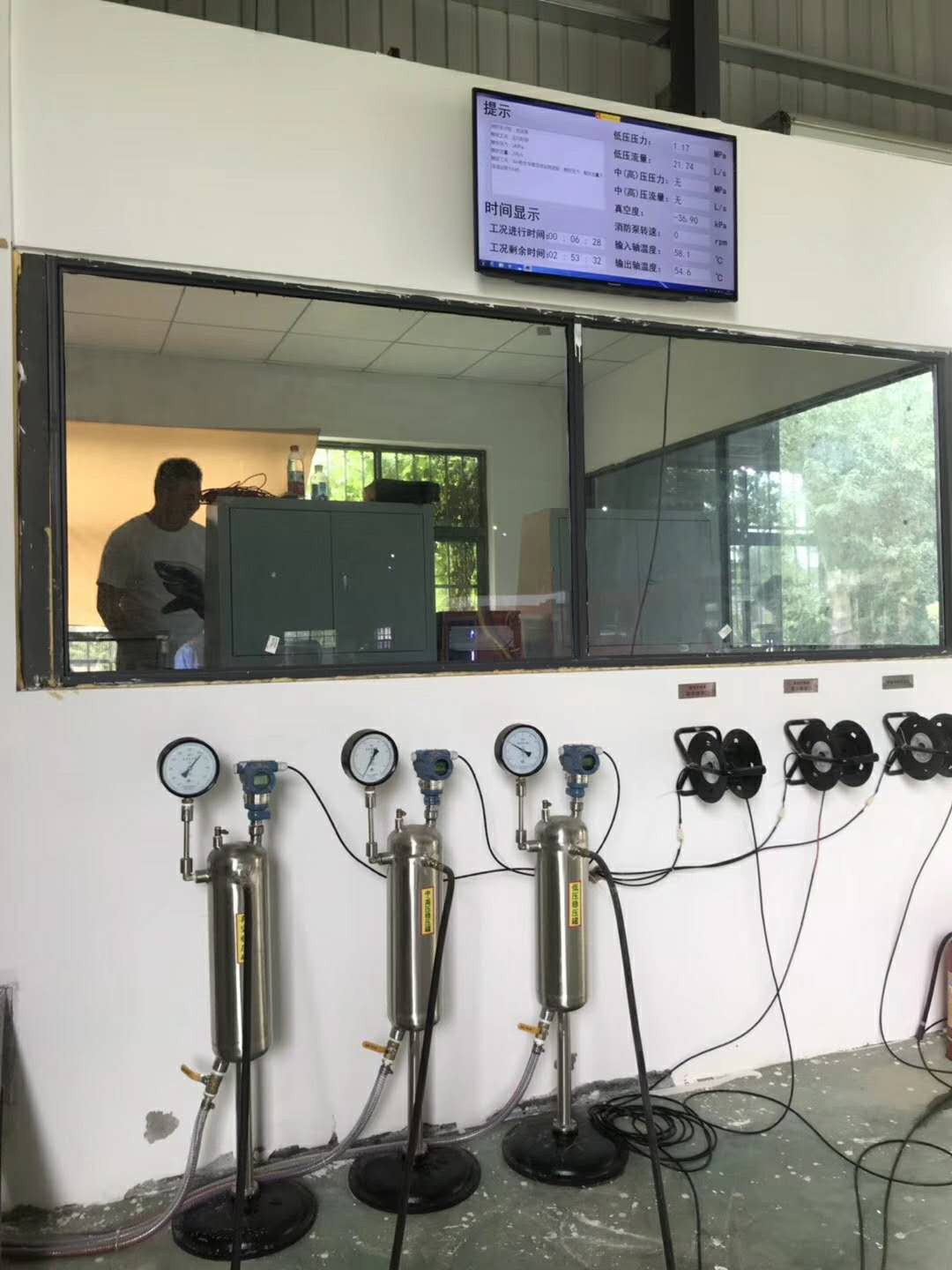

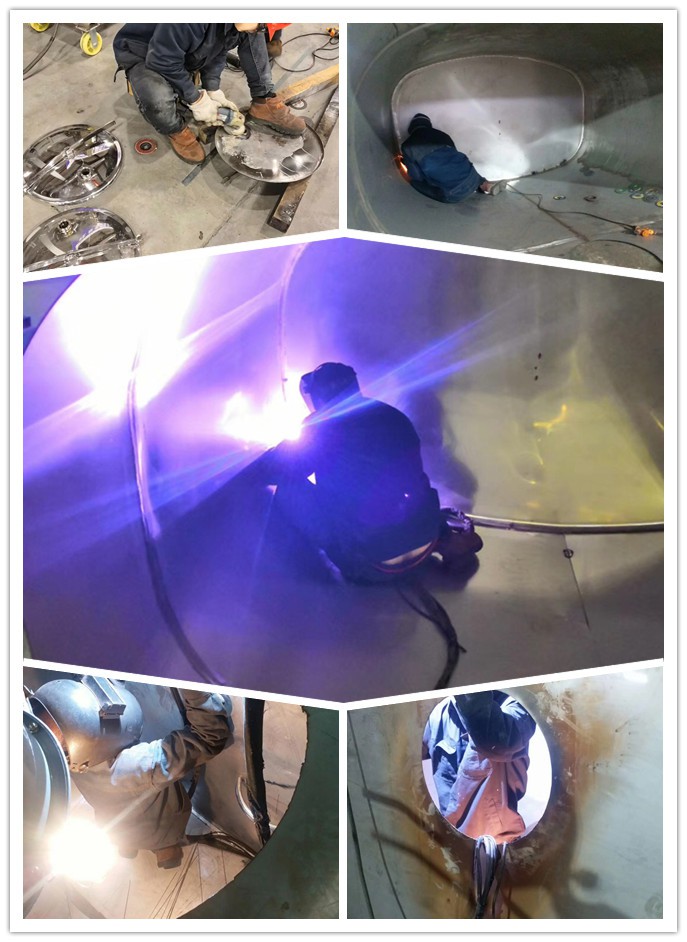

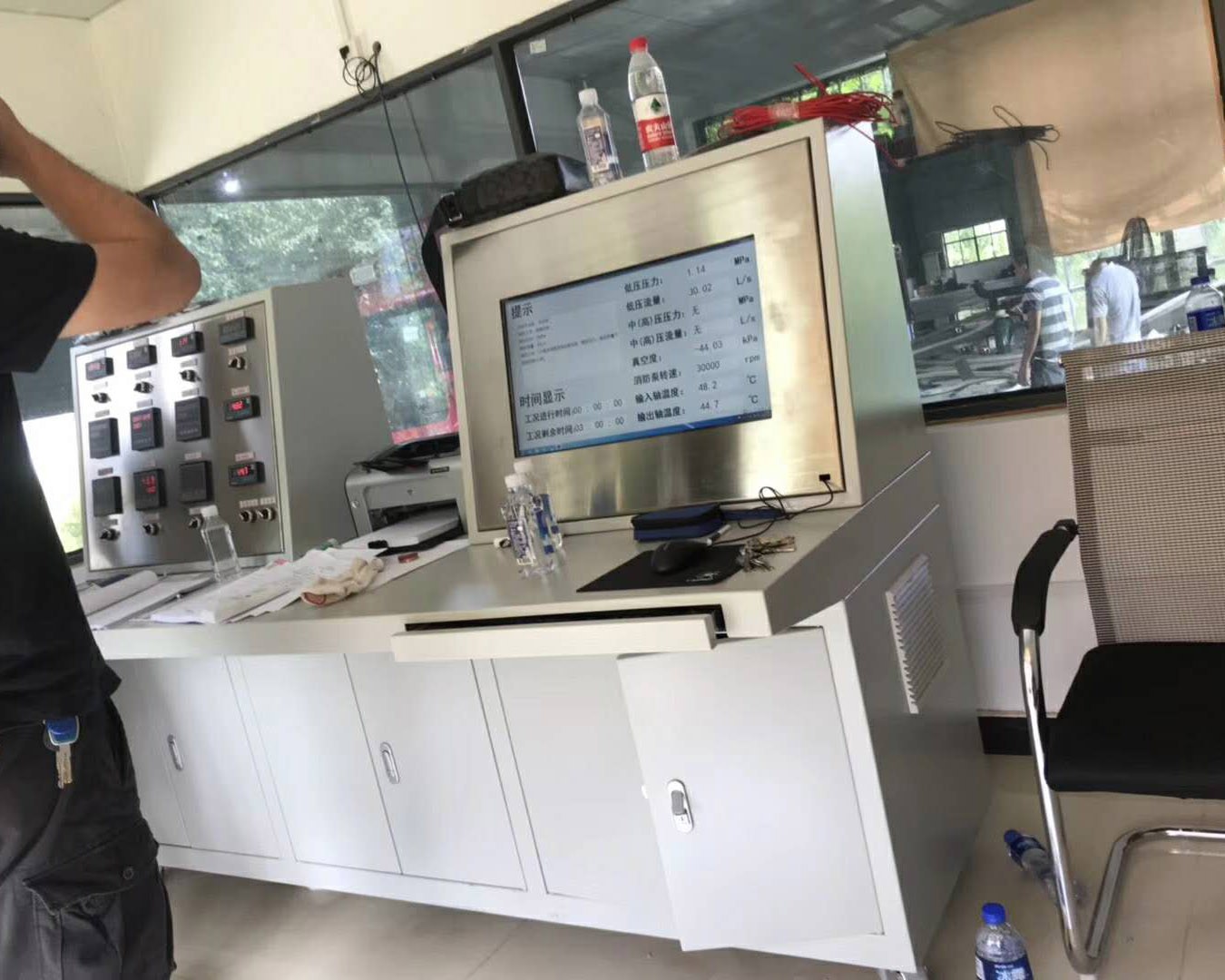

Stainless steel test:
TECHNICAL SPECIFICATION
|
Engine |
|
|
Make/Model |
ISUZU/ 6WG1-TCG51 |
|
Type |
Diesel Engine |
|
Engine System |
4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
|
Output Power@ speed |
460hp@2060rpm |
|
Displacement |
15.681L |
|
Max. torque @ Speed |
2060N.m |
|
Emission standard |
Euro 5 |
|
Transmission |
|
|
Make/Model |
ZF |
|
Gears |
12F+2R |
|
Operation |
Manual |
|
Cabin |
|
|
Type |
Steel construction, Flat, 4 doors Crew cab |
|
Passenger No. |
2+4 persons allowed |
|
Water /Foam Tank |
|
|
Capacity |
Optional |
|
Fittings |
1 X 3 ” water tank to fire pump suction connection with butterfly valve 1 X Ø 2 ½ ” hydrant filling connection with male instantaneous connection 1 X Ø 2 ½ ” Overflow and breather line, design to minimize water loss and discharge away from the chassis 2 X Ø 2 ½ fire pump to water tank filling connection, with ball valves 1 X Manhole of Ø500mm each with cap 1 X Electric level gauge |
|
Fire Pump |
|
|
Flow |
6000LPM |
|
Outlet pressure |
1.0MPa |
|
Max. depth of sucking water |
7m |
|
Rated Speed |
2270±50r/min |
|
Fire Hose & Reel |
|
|
Diameter |
25mm |
|
Length |
40m |
|
Max. working pressure |
3MPA |
|
Rewinding system |
It is electrical rewinding system and manual emergency rewinding by gear |
|
Equipped |
quick coupling |
|
Nozzles |
variable flow rate and fog-jet-type |
|
Water Monitor |
|
|
Capacity |
2880LPM |
|
Control |
Manual |
|
Range |
≥60 |
|
Elevation angle |
≤60° |
|
Depression angle |
≥-40° |
|
Rotation angle |
≥360° |
|
Foam Admixing System |
|
|
Make/Model |
CHINAFIRE/ PHA125B |
|
Capacity |
1200~7500 l/min |
|
Pressure |
0.6~1.2Mpa |
|
Mixing Rate |
1%~10%(The maximum proportioning rated output is 3000 l/min and up to 6% foam concentrate can be admixed to the extinguishing water). |
|
Type |
Automatic / electrical control (with manual emergency) |
|
Design |
The foam concentrate is sucked from the tank and mixed with the extinguishing water according the ejector pump principle. By the control cock at the pump proportional the suction quantity of the foam concentrate can adjust. |
