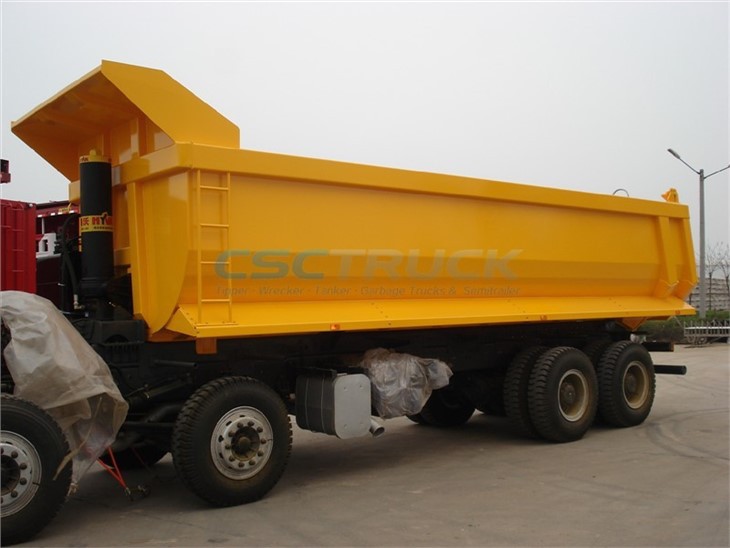

Rear tipping trailers are commonly used for carrying bulk materials, such as sand and stones, on construction sites. These trailers come in both normal and pool types (U), with the option of hydraulic tailgates. The tipper body is typically made of either steel material or HARDOX, providing durability and strength.
 |
 |
 |
 |
Description
APPLICATION
Rear tipping trailers are designed for carrying bulk materials, such as sand and stone, frequently used on building sites. They come in both normal and pool-type (U) configurations with the option of hydraulic tailgates. The tipper body is constructed from either steel material or HARDOX, and all bodies and gates are reinforced with vertical steel “u” type profiles.
SPECIFICATION
|
CHASSIS FRAME |
Heavy duty design, Through type, Rear tipper semitrailer special use |
|
Material |
High strength Q345B |
|
Structure |
I beam with a horizontal beam, a straight-through structure |
|
Frame Sectional Modulus |
140 (16)×600 (8)×140(20) flange(thickness) |
|
AXLES |
3 Units of L1 (Brand) |
|
Rear Axle Rating |
12,000kg; Hub reduction drum axle, Rigid I beam |
|
Middle Axle Rating |
12,000kg; Hub reduction drum axle, Rigid I beam |
|
Front Axle Rating |
12,000kg; Hub reduction drum axle, Rigid I beam |
|
SUSPENSION |
Leaf Spring Type, Mechanical |
|
Front |
2 Sets of Germanic type suspension(spring 8pcs thickness 12mm) |
|
Middle |
2 Sets of Germanic type suspension(spring 8pcs thickness 12mm) |
|
Rear |
2 Sets of Germanic type suspension(spring 8pcs thickness 12mm) |
|
KING PIN |
Mushroom Type; Skid plate welded |
|
Size |
One unit of 3 1/2″welded |
|
Thickness |
10mm plate |
|
LANDING GEAR |
JOST C200 |
|
Numbers |
2units (left & right) |
|
Type |
Two-speed manually operating, heavy duty |
|
BRAKES |
Dual line Drum Brakes Pneumatic Braking |
|
Relay Valve |
Two units |
|
Spring Brake |
Four units of T30/30 |
|
Brake Chamber |
Four units of T30 |
|
Air Tank |
Three units of reliable 45L( local brand) |
|
Air-Connector |
Two units of reliable local brand standard coppery |
|
ELECTRICAL SYSTEM |
|
|
Socket |
One unit of jaeger Poway, 24v 7-pin ISO1185 |
|
Tail lamp |
Turn signal, brake light, reverse & reflector, side lamp, etc. |
|
Cable |
One set of DAFA (brand) 6-core Standard Cable |
|
WHEELS |
|
|
Quantity |
12 spare |
|
Tire Size |
12.00R22.5, (ALL WHEELS) |
|
Ply Rating |
16PR |
|

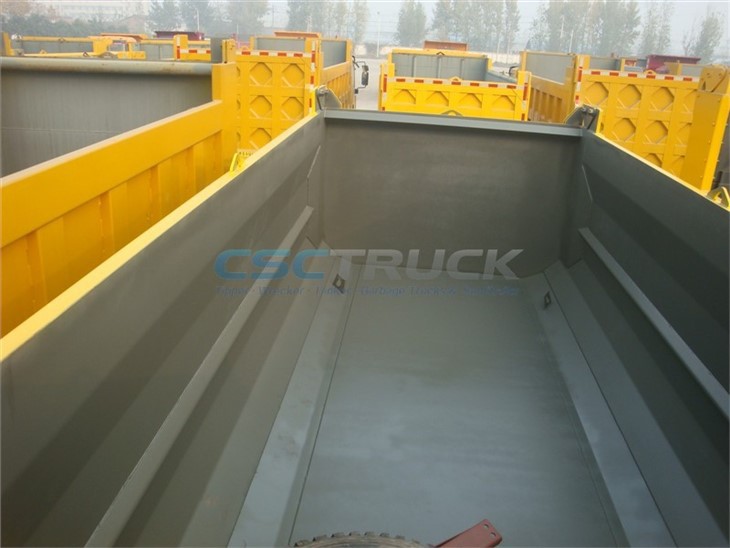

TIPPER |
Sidewall Shape “U “Style mine special design |
|
Loading Capacity |
23.5 m3 |
|
Nominal Payload |
45 Tones |
|
Length(Inner Size) |
10000mm |
|
Width(Inner Size) |
2150mm |
|
Height(Inner Size) |
1200mm |
|
Side Thickness |
8mm |
|
Floor Thickness |
10mm |
|
Bulkhead Thickness |
8mm |
|
Rear Wall Thickness |
8mm |
|
Tipping Position |
Front |
|
Tipping Type |
Telescopic Rear-end Tipping |
|
Material |
Carbon steel, Q345 from WISCO |
|
Tool Box |
1unit /steel |
|
Tarpaulin |
1 pcs for covering the dumper body. |
|
HYDRAULIC SYSTEM |
HYVA (Brand) |
|
Lift Cylinder Type |
Front-end cylinders |
|
Bore |
214mm |
|
Max. Slope Angle |
30° |
|
Stroke |
7130mm total |
|
Pressure |
190bar |
|
PAINTING |
|
|
Protective Provision |
Anti-corrosion provisions for the semitrailer for corrosion resistance are coated with 2 coats of oxide primer (or similar) on the inner and outer sides of the bodies,2 coats of synthetic enamel orange painting (or similar) on the outside, and 2 coats of black epoxy paint (or similar)on the inner side. Paint is resistant to abrasion and aggressive environments. |
|
Finishing Color |
Color as a customer choice |
