Water Tank Volume 5.5CBM
Hopper Volume 4.1CBM
Max Sweeping Width 3.2m
Sweeping Capacity 65000sqm/h
Max Operation Speed 20km/h
HYUNDAI Chassis Truck
 |
 |
 |
 |
Description

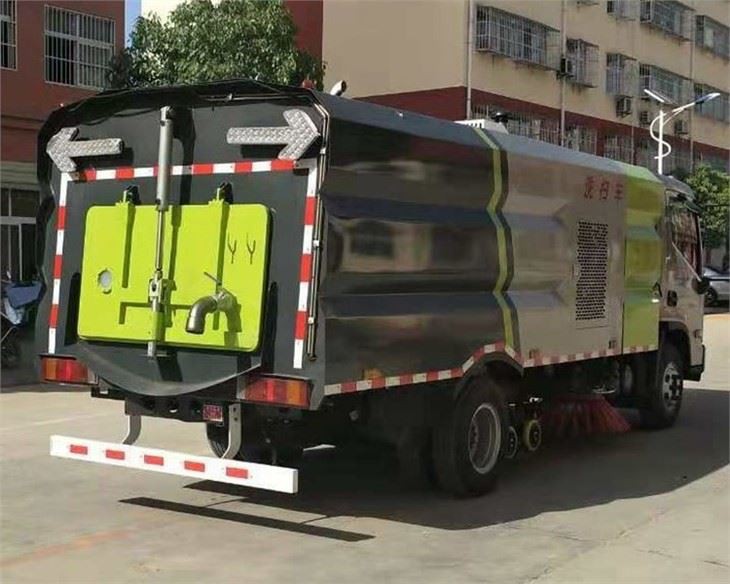

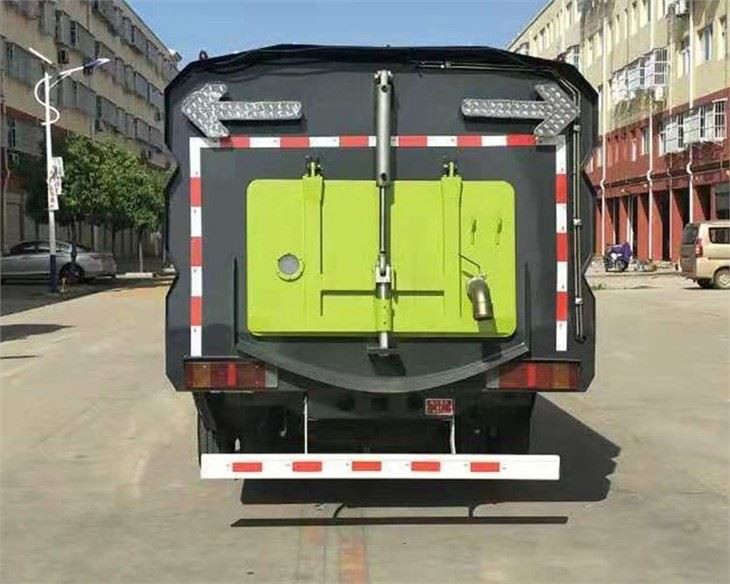

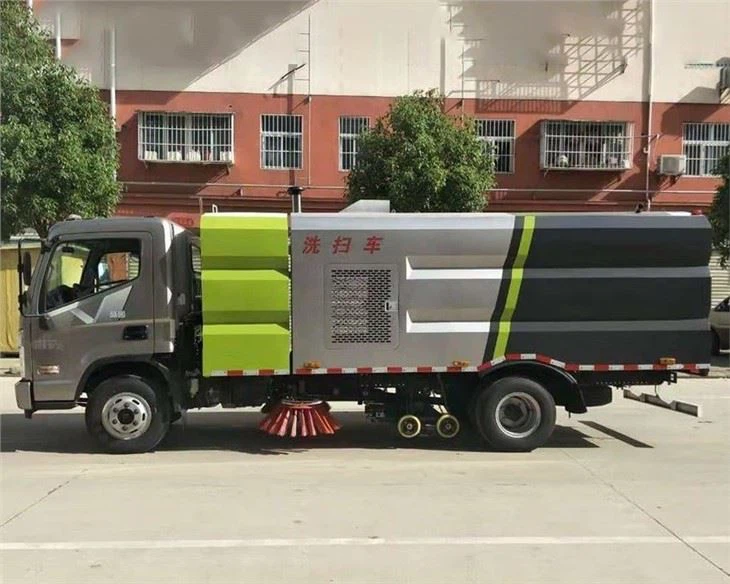

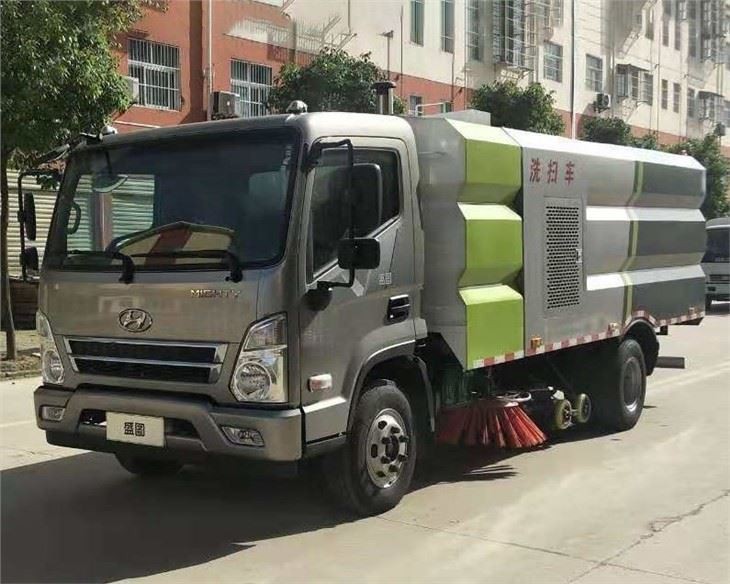

Hyundai Street Washing Sweeper Truck can be used as a road sweeper for road sweeping and dust suction operation and it can also be used as a high-pressure washing & jetting truck for road washing and flushing operation.
Hyundai Street Washing Sweeper Truck is a comination truck with sweeper high-pressure jetter to achieve a variety of combinations for cleaning, flushing, pumping and washing, it can be performanced in various needs by different users, the truck can be widely used in urban trunk roads and flushing and cleaning operations.

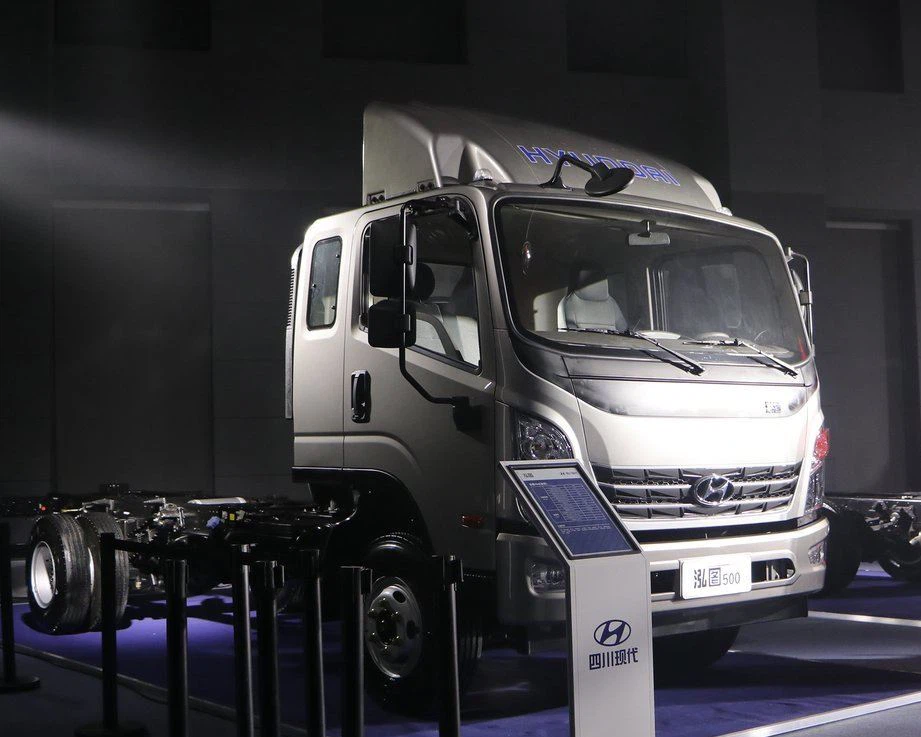

Special Chassis
Hyundai & China Joint Venture built a Special Shassis
Hyundai MIGHTY 4×2 chassis with high standard configuration, stylish design, and beautiful interior configuration.

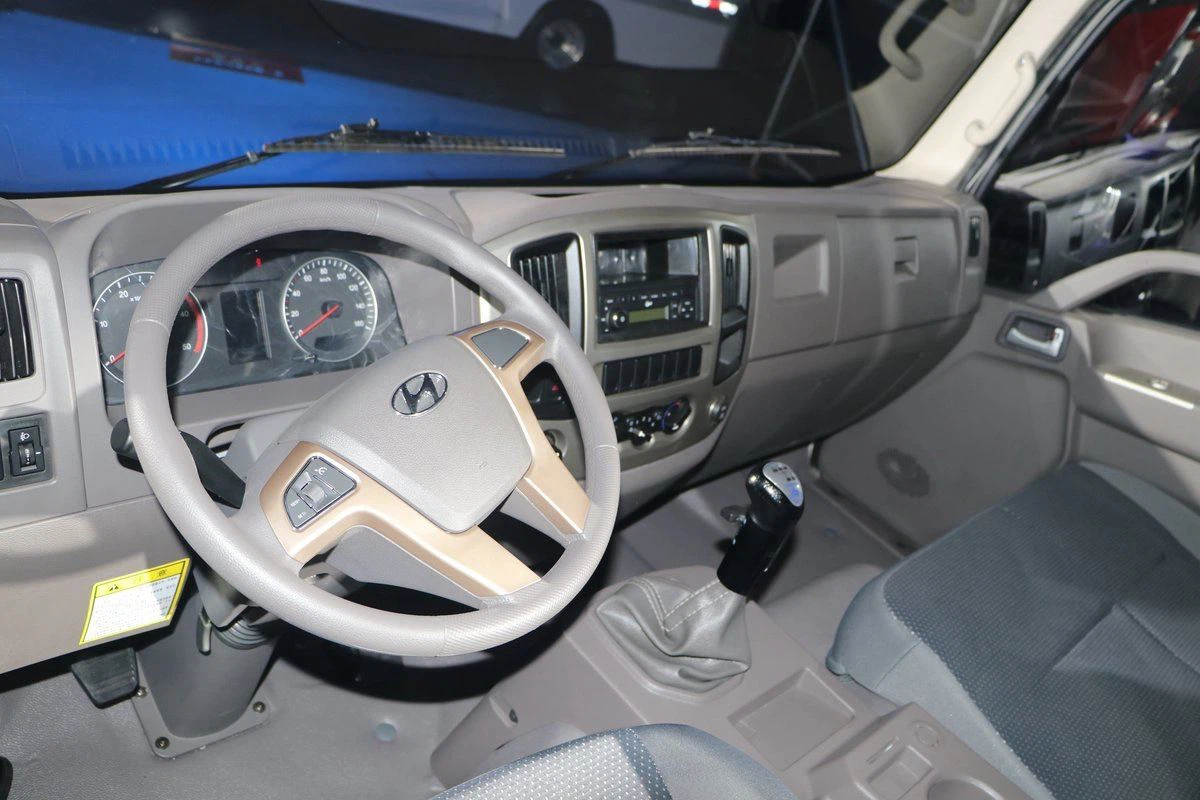

Comfortable Cab
Cab Safe and comfortable fashion and classic
Comfortable modern cab, mechanical suspension shock-absorbing seat, large storage space,

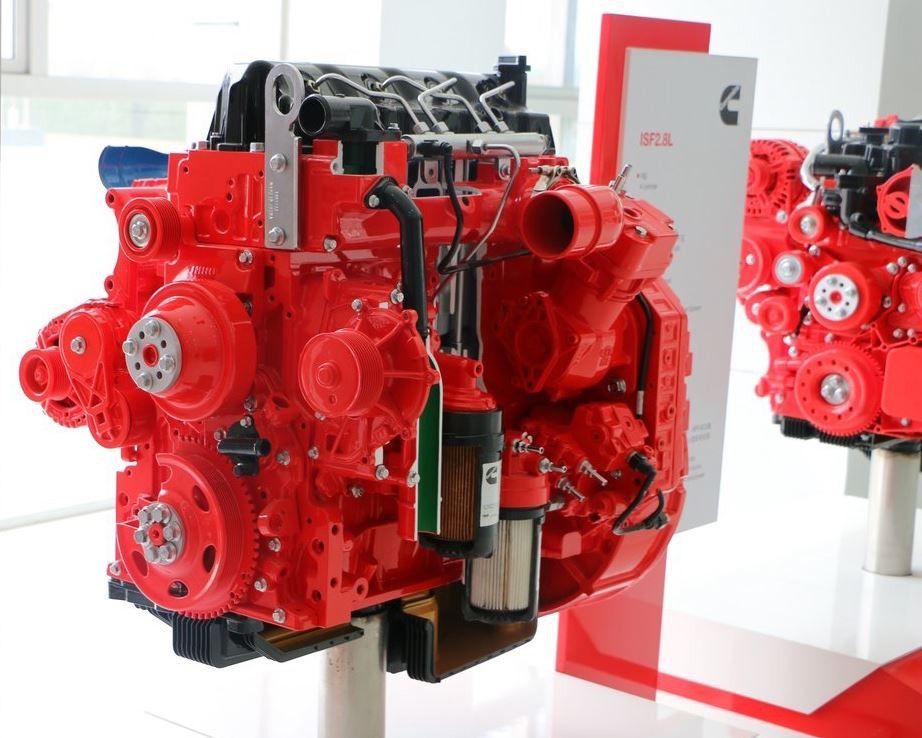

Cummins Engine
Foton Cummins ISF3.8s5154 diesel engine
Fuel Type: Diesel Emission Standard: EURO V
Maximum power: 115kw (156ps) Displacement: 3760 (ml)

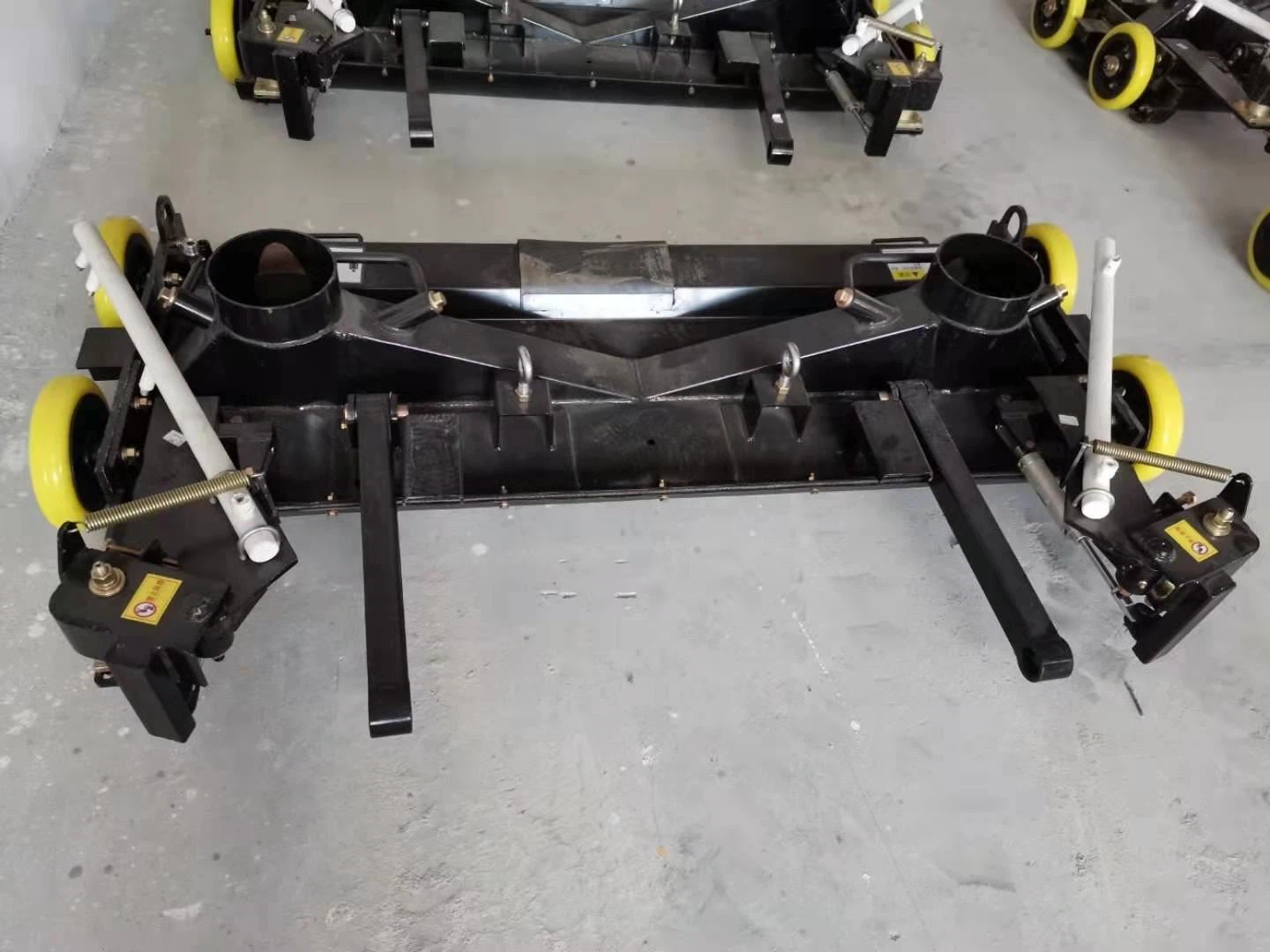

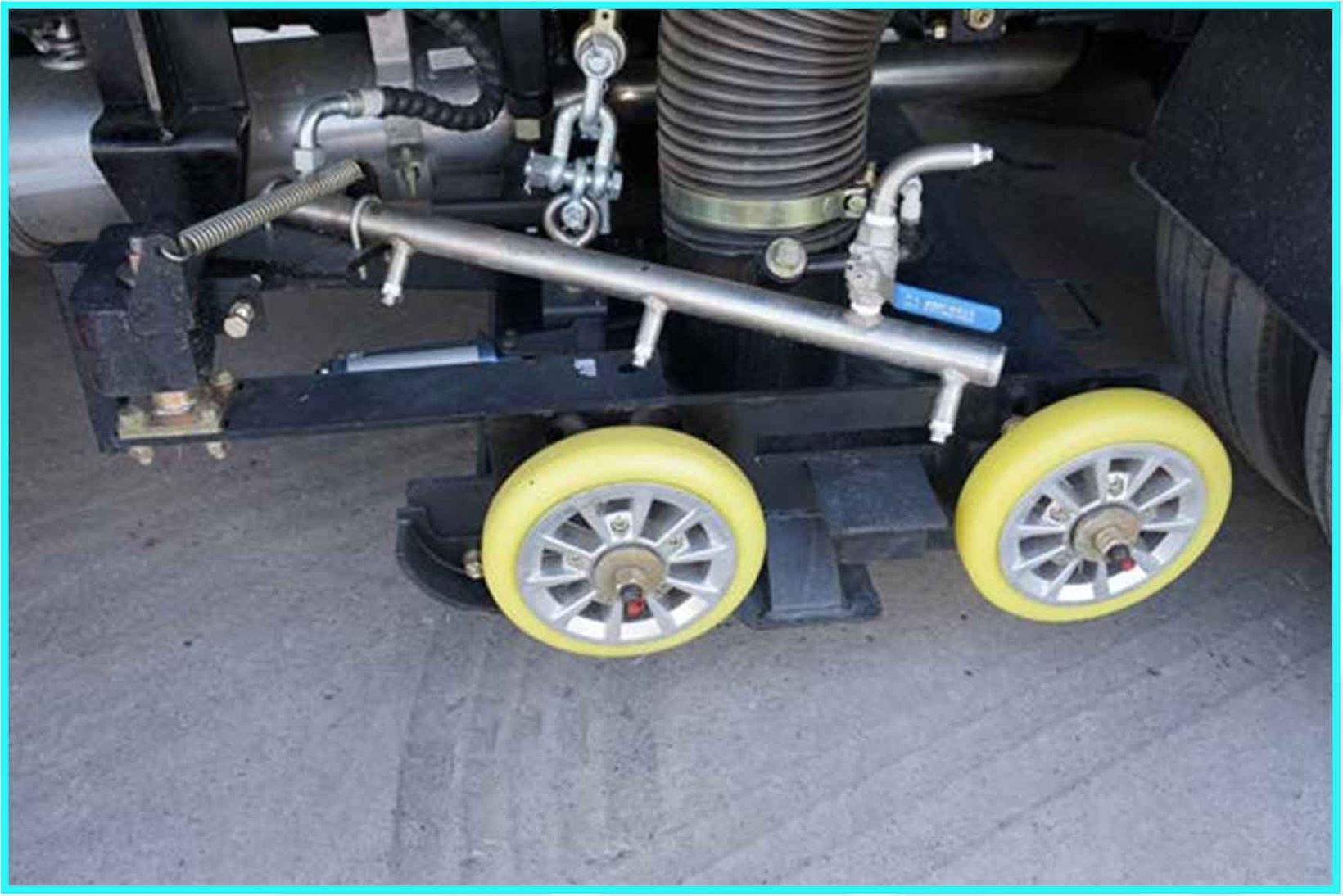

Pickup Head
Excellent structure and easy to suction dust
The pickup head of the sweeper is generally surrounded by four metal plates, in a flat shape. The sweep path picks up debris close to the curb and across a wide area. A 90 in. (2286 mm) wide pick-up head and hydraulically driven 42 in. (1067 mm) dual side brooms provide a 10 ft. (3208 mm) wide sweep path. Work with brooms fully extended, or add the optional full broom retract feature for powerful scrubbing action in front of the pick-up head. The top opening is connected with the debris hopper body through a rubber straw.
Blower
Special high-efficiency centrifugal blower for sweeper, adopts imported FGA bearing, life longer 3 years than our competitors. High volume air flow at high velocity results in exceptional one-pass pickup while reducing plugging that can occur in similar type sweepers.
Nozzle, Spray Bar
Central mounted integral double suction port, CSCTRUCK is standard to use 6mm thick material (others use 4mm thick material), which can effectively prevent deformation caused by the impact of large particles sucked in by the suction port, and the suction hose is imported good quality, which is more wear-resistant.
Combined high-pressure cleaning spray bar, the cleaning width is wider than 3.2 meters.

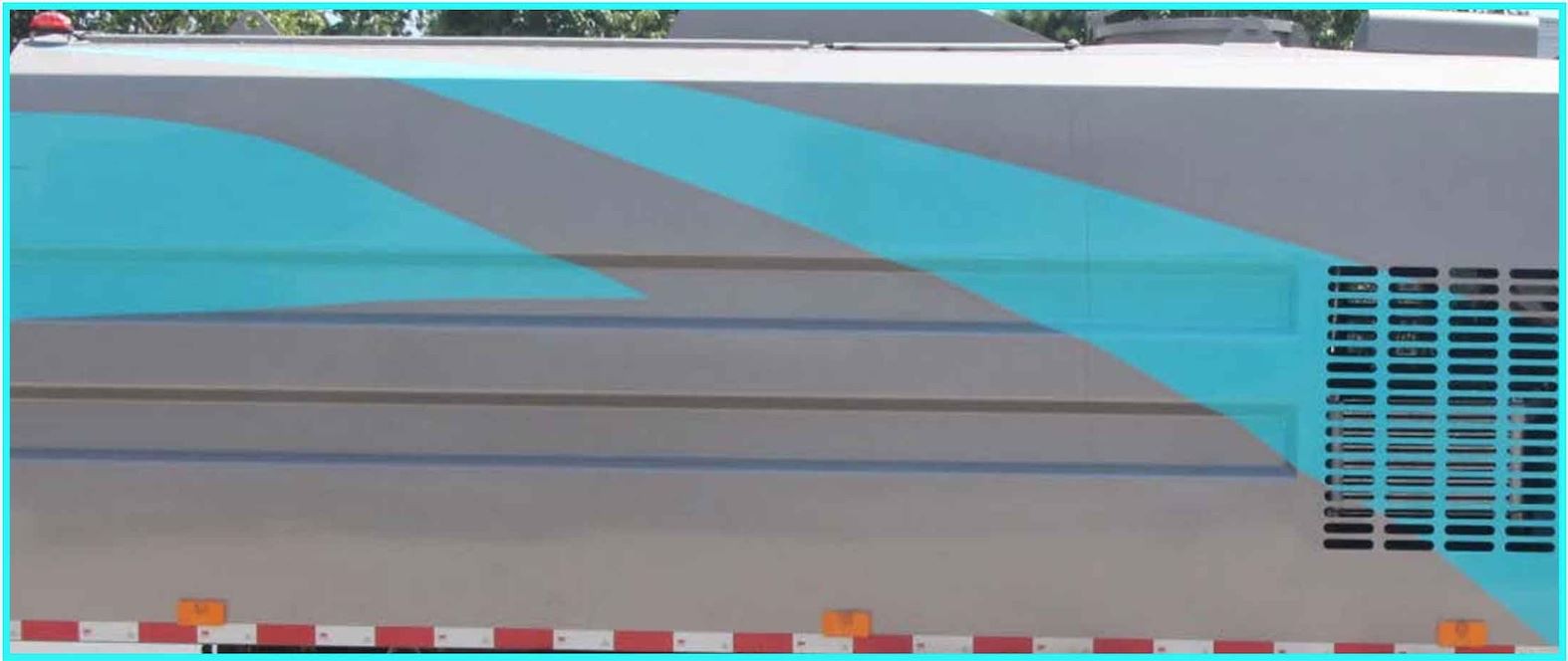

Trash Hopper
The hopper fabricated from 4mm thick 304 stainless steel material, corrugated structure design.

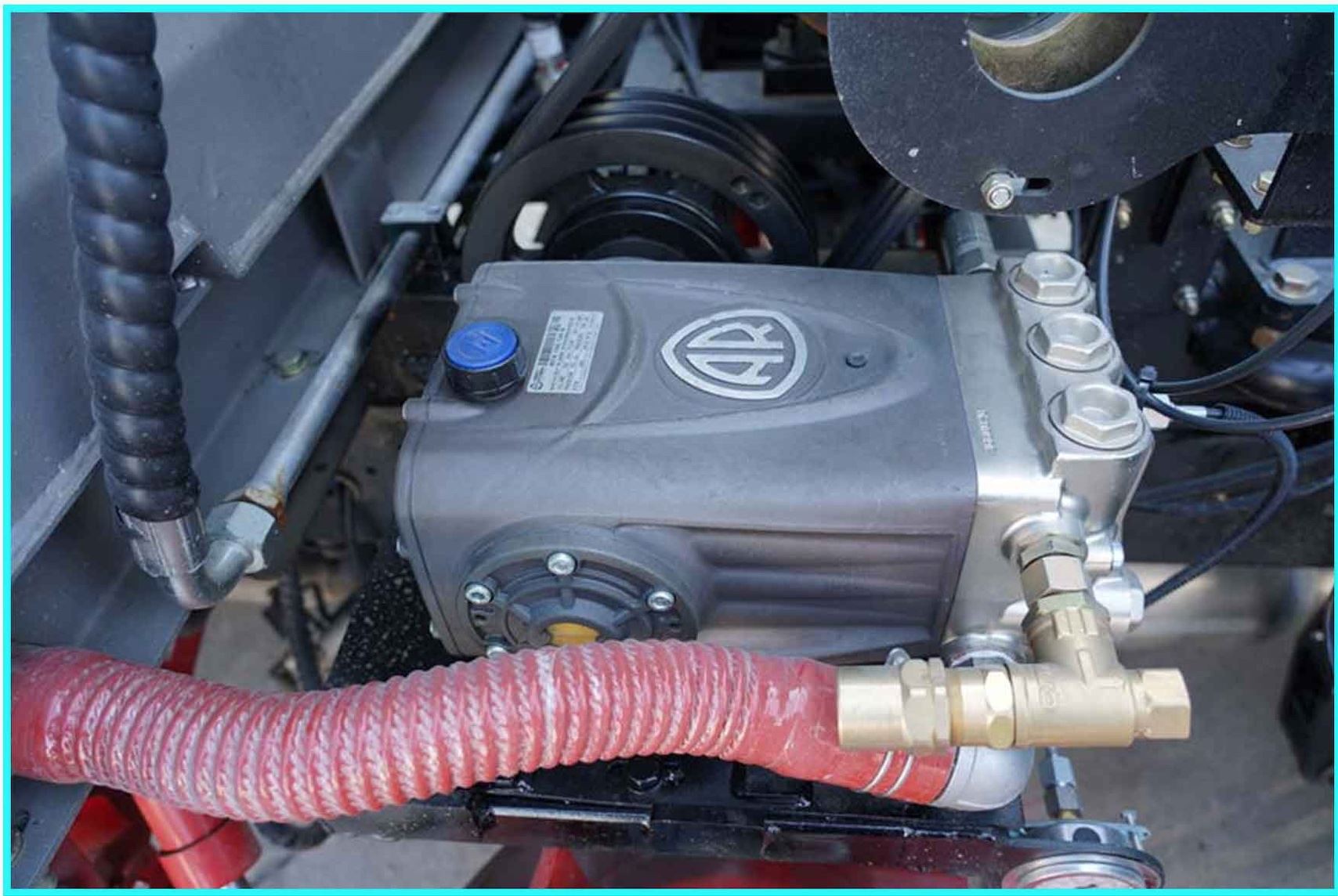

High pressure pumps
Original imported high-pressure water pump for washing and sweeping vehicle, the rated pressure reaches 12Mpa.

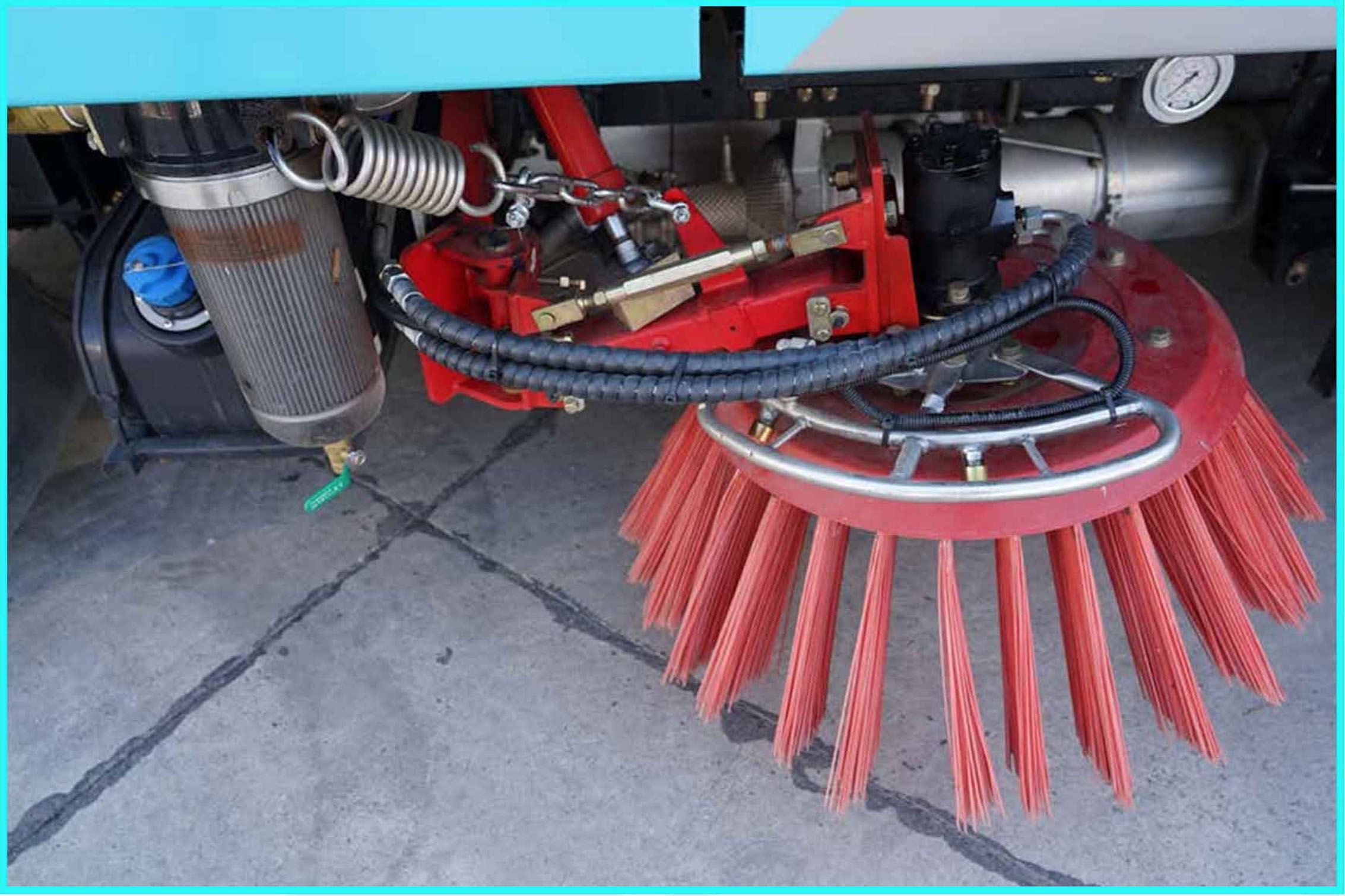

Side Sweep Broom
The independent cylinder is used to control the lifting and swinging, with the function of anti-collision and avoidance.
Automatic Winded Hose Reel
Equipped with a 20-meter high-pressure hose, it is easy to pull out and retract, and can be used to clean the vehicle itself or other equipment.

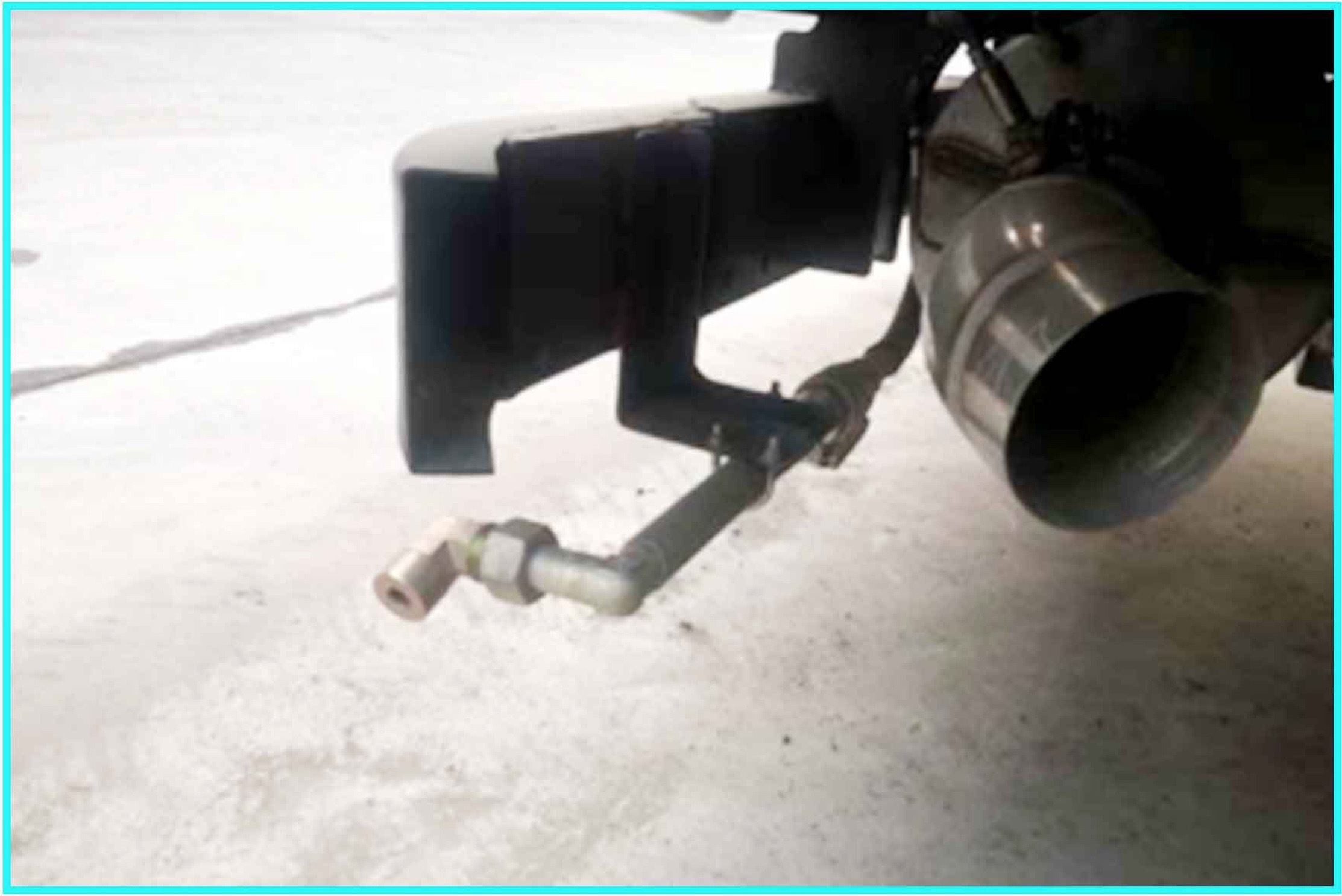

High pressure jetting device and front high-pressure flushing
Road spray for dust suppression, cool down the road in summer, and clean the road surface.
High pressure hand-held water spray nozzel
The hand hold water spray nozzel it can use for washing road post, billboards, etc.
Control
It adopts the control mode of display + controller + CAN bus control panel, one key to start, one key to shut down.
Camera
You can check the cleaning effect in the cab, and you can navigate when reversing to prevent rear-end collisions.
