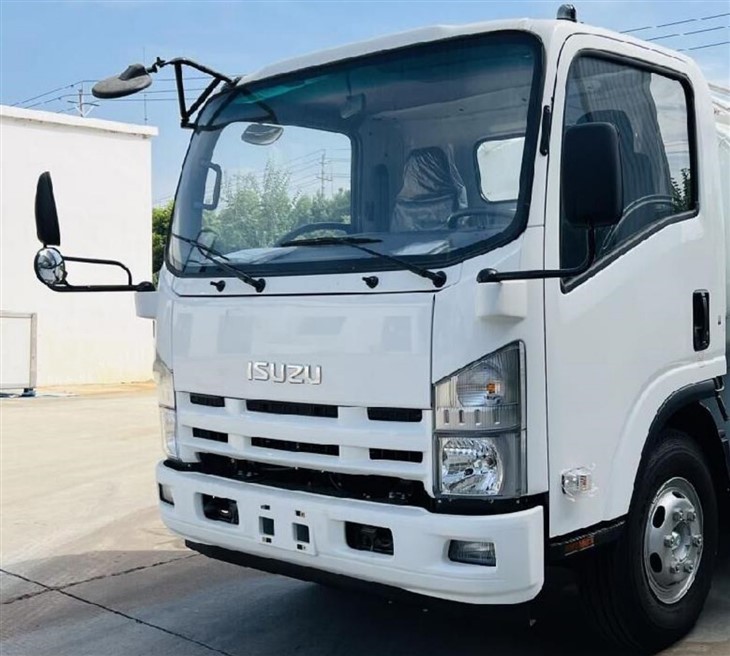

ISUZU 5CBM LPG Dispenser Tank Truck

Model No.: CSCLDTT005.
Tank Body Volume: 5CBM.
Overall Dimensions(LxWxH): 5,900×2,045×2,600mm.
Chassis Brand: ISUZU.
Drive Type: 4×2.
Wheelbase: 3,360mm.
Engine Make/Model: ISUZU/4HK1-TCG61.
Engine Power: 190HP/2,600rpm/507N·m.
Emission Standard: EURO 6.
Electrical System: 24volts.
Pump Type: YQB15-5 gas pump.
Flow rate: 15m³/h.
Ultimate pressure: 1.6MPa.
LPG tank material: Q345R.
Designed Pressure: 1.77Mpa.
Working Temperature: 50℃.

Description

BRIEF



The ISUZU 5CBM LPG dispenser tank truck, produced by CSCTRUCK, is a specialized vehicle designed to efficiently and safely distribute liquefied petroleum gas (LPG). Built on a robust ISUZU chassis with a 4×2 drive type, it is powered by the ISUZU 4HK1-TCG61 engine, which delivers an impressive 190 horsepower and complies with EURO 6 emission standards, ensuring high performance and environmental compliance.

The truck features a 5-cubic-meter LPG tank constructed from Q345R steel, known for its excellent strength and pressure resistance. The tank is engineered with a design pressure of 1.77 MPa and operates safely within a working temperature of 50°C, making it reliable under varying conditions.

Equipped with a YQB15-5 gas pump, the truck offers a flow rate of 15 cubic meters per hour and can handle an ultimate pressure of 1.6 MPa, enabling efficient and controlled LPG dispensing. The truck operates on a 24-volt electrical system, enhancing reliability and ensuring smooth operation of its electrical components.

See also  Commercial Water Truck 5000 Liters

This dispenser tank truck is ideal for LPG delivery and on-site refueling. It combines advanced engineering, safety, and convenience. Its compact design, coupled with advanced performance features, makes it a trusted solution for industries requiring safe and efficient LPG handling and transportation.



FEATURES



1. Tank Specifications

    Volume: 5 cubic meters (CBM).

    Material: Made of Q345R steel for durability and safety.

    Design Pressure: 1.77 MPa, with a working temperature of up to 50°C.

2. Chassis and Drive

    Built on an ISUZU chassis.

    Drive Type: 4×2 configuration for excellent maneuverability.

3. Engine and Power

    Engine Model: ISUZU 4HK1-TCG61.

    Power Output: 190 HP with an EURO 6 emission standard, ensuring eco-friendliness and compliance with modern regulations.

4. Pump and Flow Rate

    Equipped with a YQB15-5 gas pump.

    Flow Rate: 15m³/h with an ultimate pressure of 1.6 MPa, enabling efficient LPG dispensing.

5. Electrical System

    Operates on a 24-volt electrical system, providing reliable and consistent performance for onboard equipment.



SPECIFICATION



PARTS

ITEM

DESCRIPTION

General Information

Make & Model

CSCTRUCK/CSCLDTT005

1.2 General

Brand new(2024), unused

1.4 Steering

Left-hand drive

1.5 Body Volume

5CBM

1.6 Make of Truck

ISUZU

1.7 Drive Model

4×2

Engine

2.1 Make / Model

ISUZU / 4HK1-TCG61

2.2 Type

Diesel, 4 cylinders, turbocharged, intercooler

2.3 HP

190HP / 2,600rpm / 507N·m

2.4 Emission Standard

Euro 6 Standards

2.5 Displacement

5.193L

Transmission

3.1 Operation

Mechanical, Manual

3.2 Fuel Type

Diesel

3.3 Forward & Reverse

6 Forward & 1 Reverses

3.4 Model / Make

ISUZU / MLD6

Axles

4.1 Front Axle Loading

4T

4.2 Rear Axle Loading

7T

Wheels & Tires

5.1 Specs. Of Tires

235/75R17.5

5.2 Drive Wheel (Tires)

6+1spare tire

Major Dimension

7.1 Overall Dimension

(LxWxH)

5,900×2,045×2,600(mm)(approx.)

7.2 Wheelbase

3,360(mm)

CAB

8.1 General

White color, flat-top cab, air conditioner, Power steering, central locking, electric glass, multi-function steering wheel.

8.2 Air Conditioner

Installed

Electrical

9.1 Electrical System l

24 Volts electrical system

Brake

10.1 Type l

Air Brake with ABS

LPG Tank

11.1 Volume

5CBM

11.2 Density

0.42T/CBM

11.3 Designed Pressure

1.77Mpa

11.4 Testing Pressure

2.1Mpa

11.5 Working Temperature

50℃

11.6 Material

Q345R

11.7 Thickness

10mm

11.8 Tank Shape

Horizontal Cylinder Shape

Hose reel and gun

13.1 General

Length 15m gas reel with gas gun system

Flow Meter

15.1 General

1pc volumetric flow meter installed

Pump

16.1 Type

YQB15-5 gas pump

16.2 Flow rate

15m³/h

16.3 Outlet diameter

50mm

16.4 Drive mode

Electric‌

16.5 Ultimate pressure

1.6MPa

Painting

17.1 General

CSCTRUCK standard Top 1. Painting

Color & LOGO on requirement.
