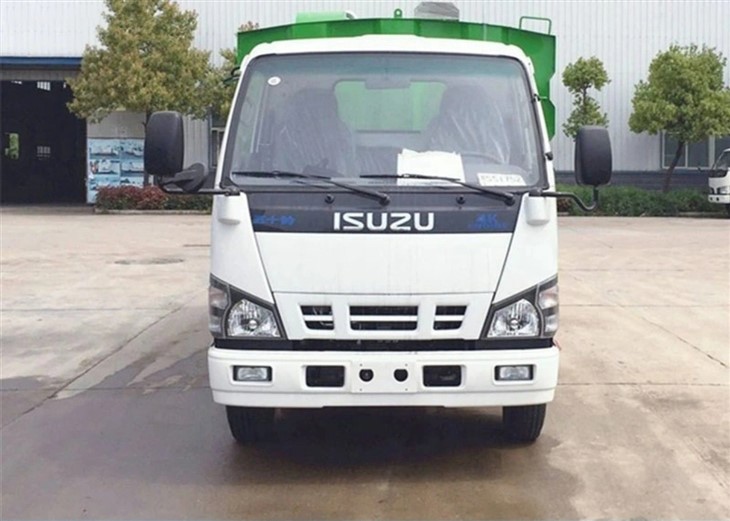

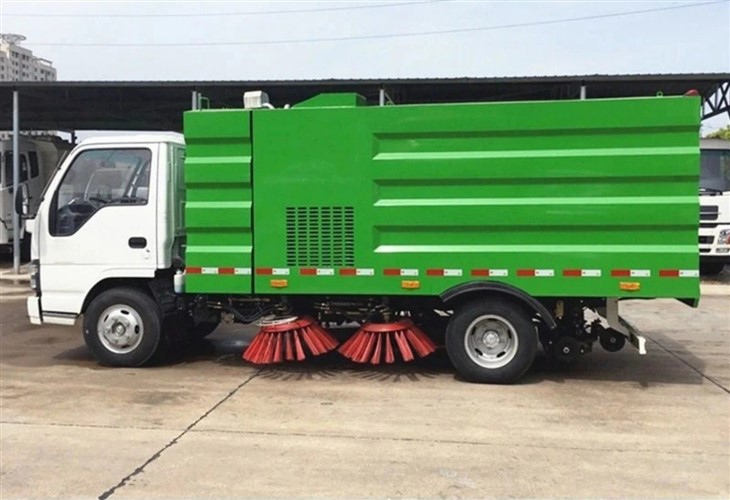

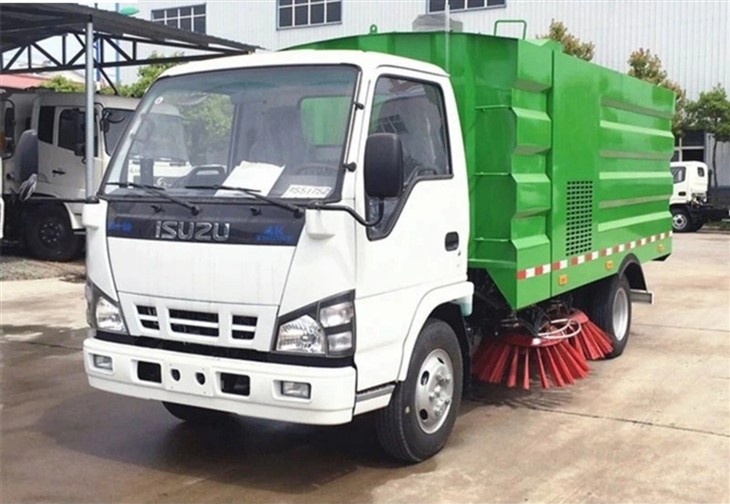

ISUZU 6 CBM Dustless Sweeper Truck

Model No.: ISUZU 6 CBM Dustless Sweeper Truck.
Water tanker: 2CBM + Garbage tanker: 4CBM.
Overall Dimensions(LxWxH): 6,400×2,100×2,640mm.
Chassis Brand: ISUZU 600P.
Drive Type: 4×2.
Wheelbase: 3,815mm.
Engine model: ISUZU 4KH1-CN5HD.
Emission Standard: Euro V.
Displacement/output: 3,000ml/96kw.
Engine Power: 130hp.

Description

BRIEF



The road sweeper truck, known by various names such as road cleaning truck, vacuum road sweeper, street sweeper, street cleaner, and road washing truck, is a specialized vehicle designed to clean urban thoroughfares. This dustless sweeper truck is constructed on a sturdy chassis, with popular choices including renowned brands like ISUZU, Dongfeng, JAC, and Foton. Its upper body is meticulously assembled, featuring essential components such as a power system, cleaning system, suction system, and hydraulic system.

The primary function of the road sweeper truck is to maintain cleanliness across a diverse range of urban environments. Its deployment is widespread, encompassing city streets, roads, stations, squares, and other public spaces. The integration of a powerful power system ensures efficient and reliable operation, while the cleaning system is designed to remove debris, dust, and other contaminants effectively from the road surface.

The suction system plays a crucial role in the road sweeper truck‘s functionality, utilizing advanced technology to vacuum and collect various types of waste. This capability makes it particularly adept at handling different sizes of debris, contributing to a thorough cleaning process. The hydraulic system, an integral part of the truck’s design, facilitates smooth and precise control of its cleaning mechanisms.

See also  Small Street Sweeping Truck

Due to its adaptability and effectiveness, the road sweeper truck serves as an indispensable asset in municipal maintenance and sanitation efforts. Whether navigating through bustling city streets or cleaning expansive public squares, this specialized vehicle plays a vital role in enhancing the overall cleanliness and aesthetic appeal of urban spaces. With its comprehensive features and diverse applications, the road sweeper truck stands as a key component in the ongoing effort to create and maintain cleaner, more livable urban environments.



FEATURES



1. Versatile Cleaning Capabilities:
The ISUZU 6 CBM dustless sweeper truck by CSCTRUCK is designed for efficient and versatile cleaning operations. With a 6 cubic meter dustless sweeper capacity, it can sweep and collect various types of debris and dust effectively, making it suitable for urban streets, residential areas, and commercial spaces.

2. Dual-Tank System:
Equipped with a 2 CBM water tanker and a 4 CBM garbage tanker, this road sweeper truck offers a dual-tank system that enhances its functionality. The 2 CBM water tanker facilitates dust suppression during the sweeping process, ensuring a cleaner and dust-free environment. Meanwhile, the 4 CBM garbage tanker provides ample space for collecting and transporting solid waste.

See also  HOWO Truck Mounted City Sweeper

3. Reliable ISUZU 600P Chassis:
Built on the sturdy ISUZU 600P chassis, this sweeper truck boasts a robust and reliable foundation for heavy-duty operations. The 4×2 drive type ensures excellent maneuverability, making it suitable for navigating through urban areas with ease. The chassis design contributes to the overall durability and stability of the vehicle.

4. Efficient Engine Performance:
Powered by the ISUZU 4KH1-CN5HD engine model, the road sweeper truck delivers efficient and consistent performance. With a Euro V emission standard, it meets stringent environmental regulations, reducing harmful emissions. The 130hp engine power provides ample strength to drive the sweeper and handle the demanding tasks associated with waste collection and street cleaning.

5. Environmentally Friendly Operation:
The adherence to Euro V emission standards and the integration of environmentally conscious features make this dustless sweeper truck an eco-friendly option for municipalities and organizations. The combination of efficient dust suppression, waste collection capabilities, and low-emission technology aligns with modern environmental standards and regulations.



SPECIFICATION



Vehicle Description
Overall dimensions(LxWxH) 6,400×2,100×2,640mm
GVW 7,300kg
Mass in working order 5,880kg
Chassis brand ISUZU 600P
Traction type 4×2, left-hand drive.
See also  ISUZU 6 CBM Dry Sweeping Truck
Chassis Description
Chassis model QL1070A5KAY
Cab Single cabin with flat roof, 2 seats with AC.
Wheelbase 3,815mm
Tire specification 7.00R20
Tire quantity 6+1 units
Engine Engine model ISUZU 4KH1-CN5HD
Emission level Euro V
Displacement/output 3,000ml/96kw
Horsepower 130hp
Gearbox Type ISUZU – MSB
Number of gears 5 forward gears& 1 reverse
Brake system Oil brake and vacuum booster pump.
Axle Front 2.5T
Rear 4.8T
Suspension Front 7- Leaf spring with shock absorber.
Rear 9+6-Leaf spring.
Fuel tanker Type Steel fuel tank, with lockable cap.
Capacity 160L
Up-part Description
Tanker capacity Water tanker 2CBM
Garbage tanker 4CBM
Standard configuration Equipped with auxiliary engine, sub-frame, and fan.
Equipped with water tanker, and garbage tanker.
Equipped with 4 sweeping brushes on each side and a suction nozzle on the rear.
Equipped with a dust suppression system.
Equipped with a hydraulic system.
Equipped with an electrical system.
Optional configuration Snow shovel, foggy gun, front spray, rear sprinkler.
