Model No.: ISUZU 7 CBM Dry Sweeper Truck.
Garbage tank capacity: 5.8 CBM + Water tank volume: 0.42 CBM.
Overall Dimensions(LxWxH)mm: 6,125×1,950×2,550.
Drive Type: 4×2.
Wheelbase: 3,360mm.
Engine Model: ISUZU 600.
Engine Power: 130HP.
Emission Standard: Euro IV.
Max operation range: 40,000m2/h.
Max sucking dimensions: 50mm.
Blower Power: 18kW.
Blower Speed: 2,900r/min.
Vacuum cleaner max. working width(mm): 2,400mm.
 |
 |
 |
 |
Description
BRIEF
Road sweeper truck, also known as street sweeper trucks, sweeper vehicles, road cleaner trucks, street cleaner trucks, road sweeper machines, street sweeper machines, sweeping trucks, road cleaning vehicles, municipal sweeper trucks, pavement sweeper trucks, plays a vital role in today’s municipal service!

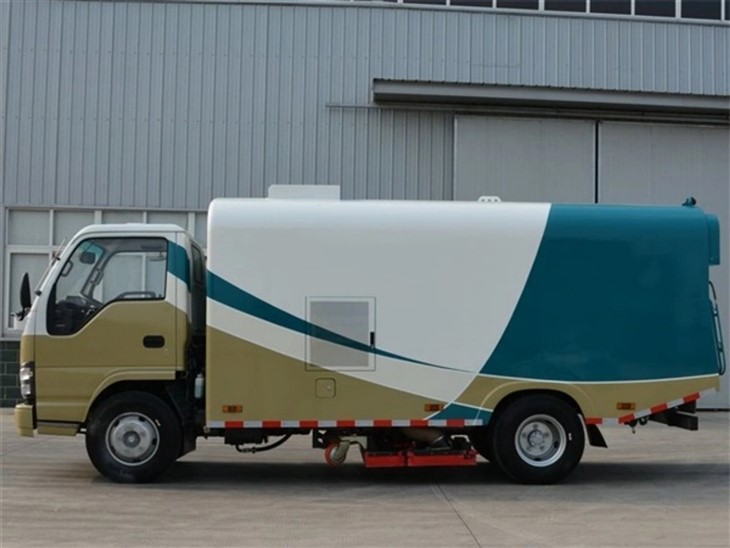

The ISUZU 7 CBM dry sweeper truck, manufactured by CSCTRUCK, stands as a formidable solution in the realm of waste management and urban cleanliness. With a garbage tank capacity of 5.8 cubic meters and a water tank volume of 0.42 cubic meters, this vehicle is specifically designed for efficient and thorough street sweeping operations. Operating on a 4×2 drive type, it boasts a 130HP engine, adhering to the Euro IV emission standard for reduced environmental impact.
Equipped with a powerful 18kW blower, the sweeper truck delivers a maximum operation range of 40,000 square meters per hour, making it well-suited for both urban and suburban cleaning tasks. The 2,900 revolutions per minute (r/min) blower speed ensures effective suction and debris collection, while the 2,400mm vacuum cleaner’s max working width enhances its coverage and efficiency.
The utilization of advanced technology and adherence to stringent emission standards not only make the ISUZU 7 CBM dry sweeper truck an environmentally friendly choice but also a high-performance asset for municipalities and waste management authorities. Its robust construction and powerful specifications enable it to tackle diverse terrains and cleanliness challenges with ease.
Moreover, the incorporation of a 4×2 drive type provides the necessary maneuverability for navigating through urban landscapes. The Euro IV emission standard compliance aligns with global efforts to reduce pollution and promote sustainable practices in the automotive industry.
In summary, the ISUZU 7 CBM dry sweeper truck by CSCTRUCK combines cutting-edge technology, environmental consciousness, and powerful performance, making it an ideal choice for organizations committed to maintaining clean and hygienic public spaces.
FEATURES
1. Achieve thorough cleaning with full suction power, eliminating the need for brush replacement and ensuring easy maintenance without dust accumulation.
2. Attain impeccable cleaning results, removing debris effectively ranging from tiny dust particles to common pebbles and leaves.
3. Equipped with a highly efficient filtration system.
4. Enhance cleaning productivity and cut down on maintenance expenses: A single vacuum cleaner equals the labor efficiency of more than 30 cleaners.
5. Ideal for various industrial settings, including coal plants, power plants, cement plants, steel plants, and mining pavements.
SPECIFICATION
| Chassis | |||||
| Drive Model | 4X2, Left-hand drive. (Optional) | ||||
| Vehicle Main Dimensions | Overall Dimensions(LxWxH)(mm) | 6,125×1,950×2,550 | |||
| Wheelbase (mm) | 3,360 | ||||
| Overhang (front/rear) (mm) | 1,015/1,815 | ||||
| Wheel track (front/rear) (mm) | 1,504/1,425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 5,500 | |||
| Front/Rear axle loading(kg) | 2,400/4,800 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Model | ISUZU 600 | |||
| Horse Power(HP) | 130 | ||||
| Emission standard | EURO IV | ||||
| Gearbox | 5 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance. | ||||
| Brakes | Air brake | ||||
| Tire | 7.00R16 tire, 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(CBM) | 5.8 CBM | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(CBM) | 0.42 CBM | ||||
| Operation detail | Max operation range | 40,000m2/h | |||
| Max sucking dimensions | 50mm | ||||
| Auxiliary engine | Model | ISUZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kW/HP) | 68/92 | ||||
| Blower | Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kW) | 18 | ||||
| Speed(r/min) | 2,900 | ||||
| Filter barrel | Quantity(No.) | 8 | |||
| Size(mm) | 350*240*900 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1,800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working Width(mm) | 2,400 | ||||
| Sucking Nozzle Wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
Rear LED pilot lamp. Self-unloading box body. The color will be designed based on your requirements. |
||||
