Make/Model: CSCTRUCK/MT04QL190L6.
Mixing Drum Volume: 4CBM.
Overall Dimensions(LxWxH): 7,600×2,350×3,600mm.
Chassis: ISUZU 700P.
Wheelbase(mm): 3,815.
Drive Type: 4×2, Left Hand Drive.
Gross Vehicle Weight(kg): 10,550.
Engine Model: ISUZU 4HK1-TCG61.
Emission Standard: Euro 6.
Rated power(kW/rpm): 190HP(139kW)@2,600rpm.
Max.torque(N·m/rpm): 507.
Electrical System: 24V.
Feed Speed (m3/min): ≥4.
Discharge Speed (m3/min): ≥3.
Rotating Speed (r/min): 2～14.
Mixing Drum Material: Q355 high-strength wear-resistant steel.
Hydraulic Pump Make/Model: Danfoss/70-90.
 |
 |
 |
Description
BRIEF

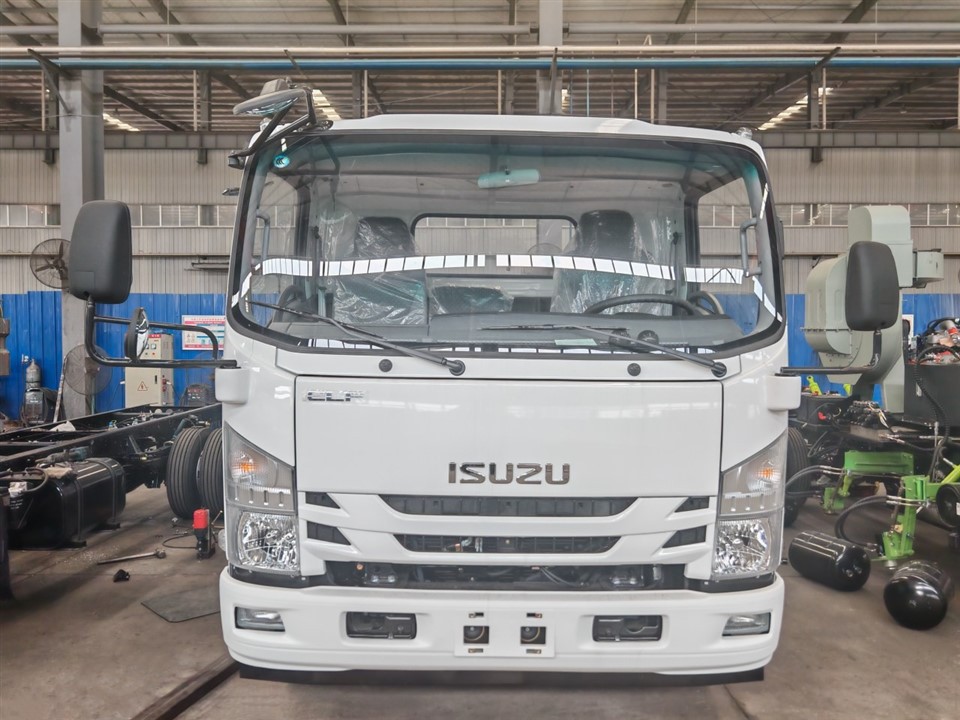

The ISUZU 700P 4CBM mixer truck, manufactured by CSCTRUCK, combines robust engineering with efficient performance tailored for construction needs. Built on an ISUZU 700P chassis with a 4×2 drive configuration, this truck features a 4CBM mixing drum crafted from Q355 high-strength, wear-resistant steel. Powered by an ISUZU 4HK1-TCG61 engine meeting Euro 6 emission standards, it delivers 190HP (139kW) at 2,600rpm, coupled with a maximum torque of 507N·m/rpm.
The truck’s design includes a 24V electrical system and utilizes a Danfoss/70-90 hydraulic pump for reliable operation. It achieves a feed speed of ≥4m3/min and a discharge speed of ≥3m3/min, ensuring efficient mixing and delivery of concrete. The mixing drum rotates at speeds ranging from 2 to 14 revolutions per minute (r/min), optimizing the blending process for various construction applications.
With its sturdy construction and advanced components, the ISUZU 700P 4CBM mixer truck stands out as a dependable choice for concrete transportation on construction sites, combining durability, high performance, and environmental compliance in one versatile package.
FEATURES
| 1. The tank adopts a pear-shaped structure, with a small tilt angle, low center of gravity, and safe and stable driving. |
| 2. The hydraulic rotation system adopts world-renowned brands in the field, allowing high-quality reliability. |
| 3. The mixer drum and blades are made of special wear-resistant steel, which has good wear resistance and long service life. |
| 4. The control system is accurately positioned and adopts a reliable lever control system. The control points are in the cab and both sides of the rear of the vehicle. |
| 5. The longitudinal and transverse beams of the subframe are made of rectangular tubes and are made of assembled cable-stayed structures, with strong torsion resistance. |
| 6. A 350-liter large water tank is assembled, and the main water pipe is made of galvanized pipe, which improves the anti-freeze and anti-aging capabilities of the waterway. |
| 7. The feeding hopper has a large space and fast feeding speed; the discharge chute is equipped with a locking device to ensure safe and reliable driving. |
SPECIFICATION
| Technical Specification | |||||
| Vehicle Parameters | Make/Model | CSCTRUCK / MT04QL190L6 | |||
| Chassis | ISUZU 700P | ||||
| Date of Manufacturing | 2024 | ||||
| Country of Origin | China | ||||
| Most Suitable for Operating | On both “on and off” road conditions | ||||
| Truck Unit’s Status | Brand new | ||||
| Drive Type | 4×2, Left Hand Drive | ||||
| Dimension L*W*H (mm) | 7,600*2,350*3,600 | ||||
| Gross Vehicle Weight (kg) | 10,550 | ||||
| Curb Weight (kg) | 6,600 | ||||
| Capacity Weight (kg) | 3,800 | ||||
| Wheelbase (mm) | 3,815 | ||||
| Chassis Parameters | |||||
| Engine | Make/Model | ISUZU 4HK1-TCG61 | |||
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooler Turbocharged. | ||||
| Emission | Euro 6 | ||||
| Displacement (L) | 5.193 | ||||
| Rated power (kW/rpm) | 190HP (139kW) @2,600rpm | ||||
| Max. torque (N·m/rpm) | 507N·m | ||||
| Gearbox | Make/Model | ISUZU MLD-6Q | |||
| Speed | 6 Forwards+1 Reverse | ||||
| Operation | Manual | ||||
| Suspension | Front Type | Semi-elliptical leaf springs | |||
| Rear Type | Springs Suspension | ||||
| Axle | Front | 3,500kg | |||
| Rear | 7,000KG | ||||
| Brakes | Air/Oil | Air Brake | |||
| Service Brake | Drum brake, vacuum servo hydraulic | ||||
| Parking Brake | Mechanical parking brake | ||||
| Auxiliary brake | Exhaust valve braking(EVB) | ||||
| Tyre | Size | 235/75R17.5 | |||
| Numbers | 6 tires and 1 spare | ||||
| Cab | Type | ISUZU 700 cab (single-row air-conditioner and 2 new-style seats) | |||
| Installed | Air-conditioned, audio system | ||||
| Passengers Allowed | 2 persons | ||||
| Color | Based on requirement | ||||
| Electrical System | Voltage | 24V | |||
| Mixer Truck Body Parameters | |||||
| Mixer Drum | Direction of rotation | Clockwise | |||
| Mixing Drum Volume | 4m3 | ||||
| Diameter (mm) | ≤2,180 | ||||
| Tilt Angle (°) | 14.5 | ||||
| Mixing Drum Length (mm) | 6,050 | ||||
| Feed Port Diameter (mm) | 600 | ||||
| Feed Speed (m3/min) | ≥4 | ||||
| Discharge Speed (m3/min) | ≥3 | ||||
| Rotating Speed (r/min) | 2～14 | ||||
| Discharge Residue (%) | 0.7%≤ | ||||
| Allowable Range of Slump (mm) | 40～210 | ||||
| Mixing Drum Material | Q355 high-strength wear-resistant steel; head 6mm, drum 5mm thickness | ||||
| Blade Material | Q345B high-strength wear-resistant steel; 5mm thickness | ||||
| Welding | Carbon dioxide gas-shielded welding | ||||
| Inlet and Outlet Device | Maximum Particle Size (mm) | 80 | |||
| Hopper (length × width) (mm) | 900×800 | ||||
| Main Groove Length (mm) | 1200 | ||||
| Extended Groove Length (mm) | 500 | ||||
| Hydraulic Pump | Make/Model | Danfoss /70-90 | |||
| Origin | Denmark | ||||
| Displacement (ml/rpm) | 90 | ||||
| Hydraulic Motor | Make/Model | Danfoss /70-90 | |||
| Displacement (ml/rpm) | 80 | ||||
| Origin | Denmark | ||||
| Maximum Torque (Nm/rpm) | 559 | ||||
| Reducer | Make/Model | PMP 90 | |||
| Origin | Italy | ||||
| Reduction ratio | 1:141 | ||||
| Water Supply | Type | Air pressure control | |||
| Capacity (L) | 350 | ||||
| Painting | Both Painted | The exterior and interior are spray painted with high-quality paint. | |||
| Exterior | Spray-painted with 2 coats of superior quality anti-corrosive primer and 2 coats of enamel metal paint of a reputed make. | ||||
