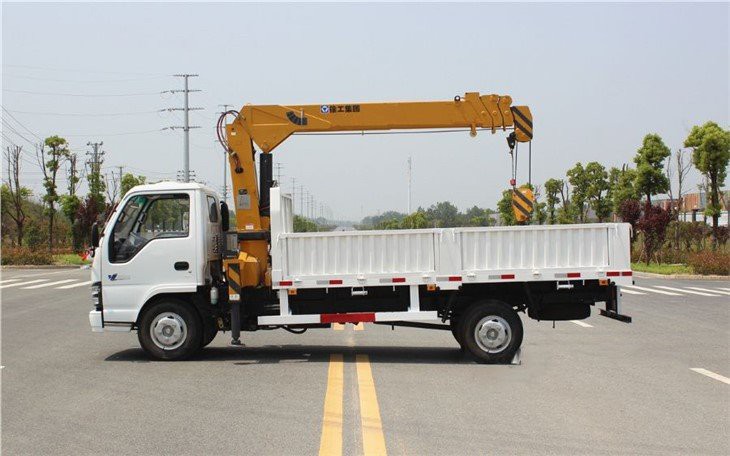

● Chassis Model ISUZU 600P 4×2

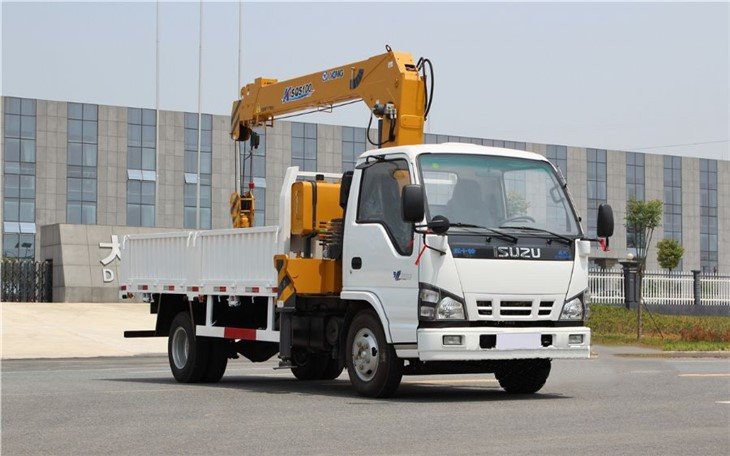

● Crane Model XCMG 3.2T
● 4KH1 120ps Engine
● GVW 7.5Ton
 |
 |
 |
 |
Description
APPLICATION
ISUZU 600P truck crane manipulator is mounted with a XCMG telescopic jib boom crane ,as designed for loading and unloading of goods as well as its transportation on different distances. Specified in handling concrete block for building, projects through rotary brick clamp .General materials lifting of various size and load with standard hook arrangement for construction sites,mines, projects , logistics requirements.
ENGINE
Model
ISUZU 4KH1-TC
Type
Diesel Engine,in line, water cooling, common rail
Fuel Injection
Direct injection.
Horsepower
130hp(96kw) @3400rpm;
Torque
280 N.m @1700 /r/min
Displacement
2.999L / 4 cylinders
Emission Standard
Euro 3
Fuel Tank Capacity
100liters
CAB& ACCESSORIES
Structurer
Day cab-steel cabin , Hardtop,60° tiltable
Cabin
3 seats, with seat belts
Instrumentation
i.Fuel gauge, oil level gauge, oil pressure gauge, speed tachometer
ii.Engine Coolant temperature gauge
iii.Battery charging indicator
iv.Parking brake light ,Reversing alarm
v.Filters and fuel-water separator service indicators
vi.Speedometer and Odometer
vii. A/C,CD,Radio ; Cigar Lighter
CLUTCH
Type
Push type, dry single plate; hydraulic actuation
Disc
Φ325mm
TRANSMISSION
Gearbox Model
MSB-5M
Type
Floor-mounted, manual shift gear lever
Torque of Gearbox
230 N.m
Speed
5+1
Max. Geared Speed
100km/h
Power Take Off
Manufacturer’s standard PTO box is provided
Wheel Drive
Rear two wheels drive with 4×2 wheel formula
CHASSIS FRAME
Structuer
Electrophoresis ;Heavy-duty double all steel constructed frame to be reinforced with cross members.
Frame Sectional Modulus
172mm×65mm×4+3mm
STEERING BOX
Type
Hydraulic power assistance steering
Drive Mode
Left hand steering control
SUSPENSION
Front
Double acting telescopic shock absorbers ,8pcs spring
Rear
Second stage helper spring,6+5 pcs
AXLES
Rear Axle Rating
4,800kg; Hub reduction floating rear axle
Front Axle Rating
2,500kg; Rigid I beam
BRAKES
Parking
Mechanical release parking brakes
Engine
Foot-operated engine brake
Service
Power assisted hydraulic actuation service brakes built into all four wheels
WHEELS
Quantity
6+1spare
Tire Size
7.50R15, (ALL WHEELS)
Ply Rating
12PR
SUPERSTRUCTUER
TRUCK MOUNTED WITH XGMC CRANE MANIPULATOR
CARGO BOX
Material
Carbon steel Q235A; Corrugated steel sheet
Frames
H beam strengthed box frame.
Side Board Thickness
3mm
Bottom Board Thickness
3mm
Box Size
3460mm x 1790mm x 380mm
CRANE
Principal Features
i. Crane Manupulator XCMG(brand). Single cable synchronous expansion technology, higher work efficiency
ii. Of the advanced research means, ensure that the design reliability.
iii. Pentagon and hexagon suspension arm technology, to neutral good, cross section bending ability.
iv. Compact hinged point design, occupy the space is little.
v. And with standard anti overwinding alarm device, assignments, more safety.
vi. Integral lifting winch mechanism, the working efficiency is higher, the hydraulic system to live longer.
vii. Unique floating three bridge structure design, effectively reduce the vehicle chassis girder are under additional force.
viii. Independent research and development of slewing mechanism, with a strong driving force, can meet more condition need.
ix. Anti rotary impact device, and effectively protect vehicle safety.
Crane Type
Telescopic Jib /Boom
Boom Section Nos.
2
Max. Lifting Capacity
3,200kg
Max. Lifting Moment
6.72 T.M
Recommended Power
14kw
Max Oil Flow Of Hydraulic System
25L/min
Max. Pressure Of Hydraulic System
20Mpa
Oil Tank Capacity
30L
Rotary Angle
360° All Ratation
Max. Lifting Height
9m
Max.Lifting Length
7.56m
Installation Space
850mm
Crane Quality
1229kg
MEASUREMENT
Wheelbase
3815mm
Length
6745mm
Width
2386mm
Height
3120mm
Front Overhang
1015mm
Rear Overhang
1915mm
WEIGHT
Gross Vehicle Weight
6485kg
Truck Payloading
2940kg
Vehicle Weight
3220kg
TRAINING
An operating and maintenance training for the buyer personnel is provided in our factory for 2 days till it’s believed all necessary details are shared.If it’s requested , our technical team (consisting 2 technician) could also travel to the buyer’s homeland in order to provide this training. In this case, all transportation and accommodation costs ( visas – plane tickets – airline fees – motorway transportation –hotel room – meals etc.) on route of “Suizhou – Buyer’s Field – Suizhou” is undertaken by the buyer. Normally, total training time doesn’t get longer than 2 days with all necessary conditions are met.
WARRANTY
This equipment is under our warranty for any fault which caused by manufacturing,material and worker errors for 1 year after date of delivery.
