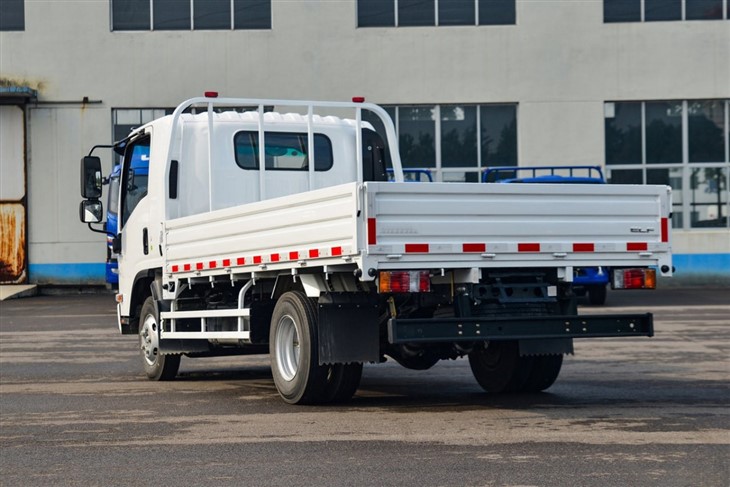

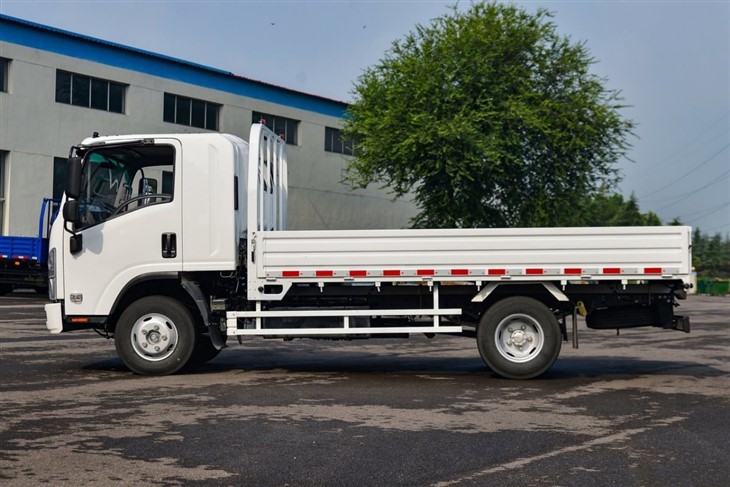

ISUZU Cargo Truck 4×4

Make & Model: CSCTRUCK/CT04QL115R3
Drive Type: 4×4 Right-Hand Drive
Overall Dimension(L x W x H): 5,995x 2,160x 2,350mm
Max. Gross Vehicle Weight: 7,300kg
Curb Weight: 2,955kg
Loading Weight: 4,070kg
Wheelbase: 3,360mm
Chassis Designed: ISUZU KV100
Engine Make/Model: ISUZU/4KH1CN5MD
Emission Standard: Euro 3

Description

BRIEF



The ISUZU cargo truck has been meticulously engineered to efficiently transport light-duty materials and goods. This utilitarian vehicle boasts an open cargo truck box, expertly mounted on the reliable and sturdy ISUZU KV100 truck chassis. The cargo box is ingeniously constructed, featuring a sub-frame connection and a box made from high-strength, wear-resistant steel plates, ensuring durability and longevity even in the face of challenging conditions.

The cargo truck‘s design prioritizes convenience and ease of use. It incorporates hinged elements on the sides, front, and rear of the cargo box, providing effortless access for loading and unloading cargo. This thoughtful arrangement allows personnel to carry out their tasks with utmost efficiency, reducing time and effort while maximizing productivity.

The use of the robust ISUZU KV100 chassis as the foundation for this cargo truck ensures exceptional performance and stability on the road. This chassis, renowned for its reliability and capability, forms the backbone of the cargo truck, providing a safe and secure platform for the transportation of various goods and materials.

See also  ISUZU Dump Truck 6 Ton

Moreover, the welded construction of the cargo box using high-strength wear-resistant steel guarantees that the transported cargo remains secure and protected throughout the journey. This not only safeguards the goods from external elements but also offers reassurance to drivers, knowing that their valuable cargo is in safe hands.

Beyond its durability and functionality, the ISUZU cargo truck showcases an eye-catching design that exudes professionalism and modernity. Its sleek appearance is both appealing and versatile, making it suitable for a wide range of businesses and industries that require dependable transportation solutions.

Whether it’s for urban deliveries, construction sites, or any other light-duty transportation needs, the ISUZU cargo truck stands out as an optimal choice. With its intelligent design, robust construction, and ease of use, this vehicle sets the standard for excellence in the realm of cargo transportation. Embracing the heritage of ISUZU‘s reliability and innovation, this cargo truck is the perfect companion for businesses seeking an efficient and reliable means of moving goods.



FEATURES





1. 4×4 Off-Road Capability: The ISUZU cargo truck 4×4 boasts impressive off-road capabilities, thanks to its advanced four-wheel-drive system. Whether navigating through rugged terrains, steep inclines, or challenging weather conditions, this truck provides exceptional traction and stability, making it ideal for off-road transportation and deliveries.

See also  Dongfeng Catering Truck

2. Spacious Cargo Capacity: With its robust design and efficient space utilization, the ISUZU cargo truck 4×4 offers a generous cargo capacity. Businesses can transport large quantities of goods, equipment, or supplies with ease, making it a reliable choice for various industries, including logistics, construction, and agriculture.

3. Durable Construction: Built to withstand demanding tasks and harsh environments, the ISUZU cargo truck 4×4 features durable construction. Its sturdy chassis, reinforced body panels, and high-quality materials ensure longevity and resilience, reducing maintenance costs and downtime while delivering consistent performance.

4. Enhanced Safety Features: Safety is a top priority in the ISUZU cargo truck 4×4. Equipped with advanced safety features, such as an anti-lock braking system (ABS), traction control, airbags, and reinforced cabin structure, this truck provides a secure driving experience for the driver and passengers, reducing the risk of accidents and injuries.

5. Efficient and Reliable Powertrain: The ISUZU cargo truck 4×4 is powered by a reliable and fuel-efficient engine, delivering optimal performance while keeping operational costs in check. The efficient powertrain also minimizes emissions, making it an environmentally friendly choice for businesses concerned about their ecological footprint.

See also  CSCTRUCK Bus Chassis For Customized Design



SPECIFICATION



PARTS ITEM MODEL

1) General Information





































1.1 Make & Model

CSCTRUCK / CT04QL115R3

1.2 Date of Manufacturing

2023

1.3 Country of Origin

China

1.4 Truck Unit’s Status

Brand new

1.5 CSCTRUCK’s Status

Established and reputable

1.6 Drive Type

4×4 Right Hand Drive



1.7 Overall Dimension

(L x W x H)

5,995x 2,160x 2,350mm

1.8 Max. Gross Vehicle Weight

7,300kg

1.9 Curb Weight

2,955kg

1.10 Loading Weight

4,070kg

1.11 Wheelbase

3,360mm

1.12 Air Over Hydraulic System

The chassis system is an air-over hydraulic

1.13 Rear Tow/Pintail Hook

Installed

1.14 Standard Tool Kit

Supplied

1. 15 Mud Flaps

Installed

1.16 Chassis Designed

ISUZU KV100

1.17 Cabin

Hydraulic power steering type.

1 driver+2 passengers

1.18 Drive wheel (Tires):



2+4 and one spares (total 7wheels)



2) Engine



























2.1 Make / Model

ISUZU/4KH1CN5MD



2.2 Country of Origin

China

2.3 Type

4 cylinders in line, 4 strokes direct injection, water cooling, Intercooler Turbocharged

2.4 Air Intake

Turbo-charged

2.5 Fuel

Diesel

2.6 Cooling System

Water cooling system

2.7 Displacement

2.999L (2,999C)

2.8 Nominal Power

115HP (85kw) @ 2,900rpm

2.9 Peak Torque

277N.m@1,500rpm

2.10 Emission Standard

Euro 3

2.11 Used

The engine is used to power the remaining system through a hydrostatic drive and all components through a hydrostatic drive.

2.12 Electronics

The engine electronics accept a remote variable throttle for stationary operation through transmission-mounted PTO and transfer case-driven PTO equipment. The air cleaner is to be the manufacturer’s recommended dual air. Air restriction gauge, dash-mounted or approved equal.

2.13 Included

Turbo, injectors, starter, and alternator. Automatic engine shutdown system with low oil pressure, high coolant temperature, and low coolant level.

3) Clutch and

Transmission















3.1 Operation of Transmission

Manual with synchromesh



3.2 Hydraulic, Clutch Actuation

Hydraulic operating with air assistance

3.3 Clutch Type

Dry single plate coil-spring clutch, diaphragm type clutch

3.4 Number of Speeds



5F+1R

3.5 Fuel Type of Transmission

Diesel

3.6 Model/Make of

Transmission

ISUZU/MSB



4) Brakes and Tyres

















4.1 Brakes

Air brake, hydraulically assisted, dual circuit, pressure-air, air dryer.

4.2 Brake Type

Drum brake

4.3 Tire Size

7.00R16LT

4.4 Total Number of Wheels with Spare

6 wheels and 1spare

4.5 Service Brake

Dual circuit pressure-air brake acting on wheels of all axles.

4.6 Emergency Brake

Spring type, acting on wheels of front and rear axles.

4.7 Parking Brake

Spring type, acting on wheels of front and rear axles.

4.8 Auxiliary Brake

Engine brake, flap type exhaust brake.

5) Suspension





5.1 Front Type

Semi-elliptical, leaf spring, double-acting telescopic shock absorber

5.2 Rear Type

Semi-elliptical, leaf spring, double-acting telescopic shock absorber

6) Cab











6.1 Type

4-point full-floating air suspension, with 1 sleeper

6.2 Installed

Air-conditioned, audio system

6.3 Passengers Allowed

2persons

6.4 Color

Based on requirement

6.5 Safety Belts

Installed

7) Axles





7.1 Loading Capacity of Front

2,500kg, Steering, and driving axle

7.2 Loading Capacity of Rear

4,800kg, driving axle

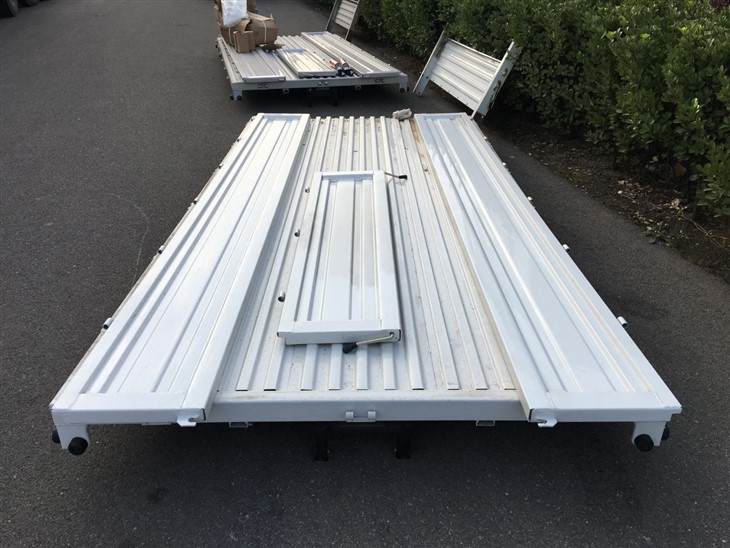

8) Cargo Box









8.1 Box Size

4,250×2,050x380mm

8.2 Structure

Corrugated structure

8.3 Thickness

Side 2mm; Bottom 3mm

8.4 Material

High-Quality Carbon Steel Q235

9) Painting







9.1 Both Painted

The exterior and interior of the tank are spray painted with high-quality painting

9.2 Exterior

Spray-painted with two coats of superior quality anti-corrosive primer and two coats of enamel metal paint of a reputed make.

9.3 Under Chassis

Coated with anti-corrosion.
