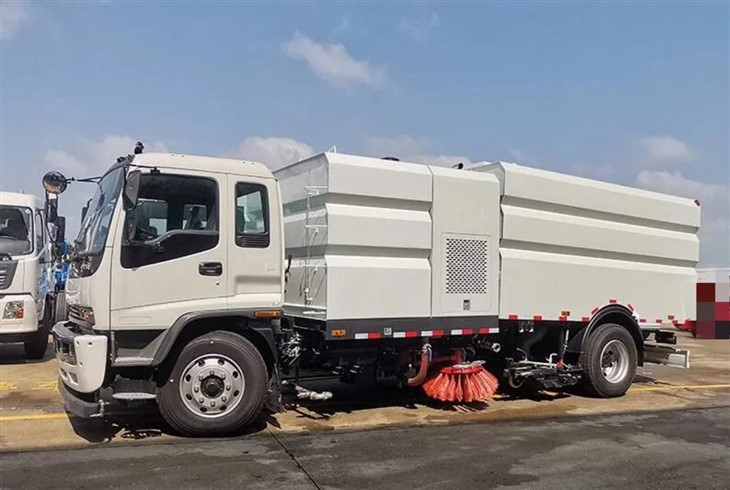

Model No.: ISUZU FTR Road Cleaning Sweeper Truck.
Water Tanker: 1.5 CBM + Garbage Tanker: 4 CBM.
Overall Dimensions(LxWxH): 6,900×2,200×2,670mm.
Chassis Brand: ISUZU FTR.
Drive Type: 4×2.
Wheelbase: 4,175mm.
Max Speed(km/h): 99.
Engine Model: 4HK1-TCG40.
Max output power/rotate speed(hp/rpm): 190/2,600.
Max torque/rotate speed(N.m/rpm): 510/1,600.
Cleaning efficiency: ≥95%.
The maximum diameter of the suction body(mm): 120.
Suction sweep width(m): 2.8-3.2.
Maximum cleaning capacity(m2/h): 60,000.
Working speed(km/h): 3-20.
Discharge door opening angle: ≥45º.
Sprinkle system model: Center 4 sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function.
 |
 |
 |
 |
Description
BRIEF
Road sweeper truck, also known as street sweeper trucks, sweeper vehicles, road cleaner trucks, street cleaner trucks, road sweeper machines, street sweeper machines, sweeping trucks, road cleaning vehicles, municipal sweeper trucks, pavement sweeper trucks, plays a vital role in today’s municipal service!
The ISUZU FTR road cleaning sweeper truck, manufactured by CSCTRUCK, stands out as a robust and efficient solution for urban cleanliness maintenance. This specialized vehicle integrates cutting-edge features tailored for comprehensive road cleaning applications.
Designed with precision, the ISUZU FTR road cleaning sweeper truck is equipped with a 1.5CBM water tanker and a 4CBM garbage tanker, ensuring optimal functionality in both wet and dry waste management scenarios. The 4×2 drive type provides maneuverability and versatility on urban roads, enabling the vehicle to navigate efficiently through diverse environments.
Under the hood, the 4HK1-TCG40 engine model powers the road sweeper truck, delivering a potent combination of performance and fuel efficiency. With a maximum speed of 99 km/h, the vehicle can cover extensive areas swiftly, enhancing productivity in urban cleaning operations.
The sweeper truck boasts an impressive cleaning efficiency of ≥95%, guaranteeing thorough and effective removal of debris, dust, and other pollutants from the road surface. The 2.8-3.2m suction sweeping width further contributes to its efficiency, allowing for swift and precise cleaning across various road dimensions.
In terms of operational capabilities, the ISUZU FTR road cleaning sweeper truck offers a working speed range of 3-20 km/h, providing operators with flexibility to adapt to different cleaning requirements. The 60,000m2/h maximum cleaning range ensures that the vehicle can cover substantial areas within a given timeframe.
One notable feature is the ≥45° discharge door opening angle, facilitating easy and efficient disposal of collected waste. This design element enhances the overall convenience and effectiveness of the waste disposal process.
In conclusion, the ISUZU FTR road cleaning sweeper truck by CSCTRUCK stands as a reliable and high-performance solution for municipalities and urban cleaning authorities, offering a perfect blend of advanced technology, efficiency, and versatility in maintaining clean and aesthetically pleasing urban environments.
FEATURES
1. Versatile Cleaning Capabilities:
The ISUZU FTR road cleaning sweeper truck by CSCTRUCK is equipped with a comprehensive cleaning system, featuring a 1.5CBM water tanker and a 4CBM garbage tanker. This combination allows the vehicle to sweep and clean road surfaces efficiently by effectively suppressing dust with water and collecting solid waste, ensuring a thorough and versatile cleaning process.
2. Efficient and Reliable Engine Performance:
Powered by the 4HK1-TCG40 engine model, the ISUZU FTR ensures reliable and efficient performance. This engine is designed to deliver optimal power and fuel efficiency, contributing to the overall effectiveness of the road-cleaning sweeper truck. The engine’s capabilities make it well-suited for the demanding tasks associated with road cleaning operations.
3. Precision and Wide Sweeping Coverage:
The road cleaning sweeper truck provides precision in cleaning operations with a suction sweeping width ranging from 2.8 to 3.2 meters. This wide coverage ensures that a substantial area is cleaned in a single pass, enhancing efficiency and reducing the time required for road maintenance. The vehicle can achieve a maximum cleaning range of 60,000m2/h, making it suitable for various urban and industrial environments.
4. Adaptable Drive Type and Speed:
The ISUZU FTR features a 4×2 drive type, offering a balance between maneuverability and load-carrying capacity. With a maximum speed of 99 km/h and a working speed range of 3-20 km/h, the vehicle is well-suited for transporting between cleaning sites and efficient cleaning operations at variable speeds. This adaptability enhances the road sweeper truck‘s utility in diverse scenarios.
5. User-Friendly Discharge Door System:
The road cleaning sweeper truck is equipped with a discharge door that opens at an angle of ≥45°, providing convenient and efficient waste disposal. This feature simplifies the unloading process, allowing for quick and easy disposal of collected garbage. The user-friendly design enhances the overall functionality of the road sweeper truck and contributes to a seamless waste management process during road cleaning operations.
SPECIFICATION
| Truck Specification | ||
| Truck model | ISUZU FTR Road Cleaning Sweeper Truck | |
| Cab | ISUZU 700P single-row cabin | |
| Driving Type | 4×2 Left-hand driving | |
| Max Speed (km/h) | 99 | |
| Overall dimension(LxWxH)(mm) | 6,900×2,200×2,670 | |
| GVW( kg) | 10,055 | |
| Mass in working order ( kg) | 7,180 | |
| Wheelbase(mm) | 4,175 | |
| F/R track base (mm) | 1,680/1,650 | |
| F/R overhang (mm) | 1,010/1,615 | |
| Approach/Departure Angle | 21/19 | |
| Tire | 8.25-20 (6+1) | |
| Clutch | Single-plate dry diaphragm spring clutch. | |
| Steering | Hydraulic steering with power assistance. | |
| Gearbox | MLD 6-speed gearbox | |
| Bridge | Front axle | 4T |
| Rear axle | 7T | |
| Engine | Model | 4HK1-TCG40 |
| Fuel Type | Diesel fuel | |
| Type | ISUZU Water-cooled four-stroke, direct injection, turbocharged. | |
| Exhaust(ml) | 5,193 | |
| Max output power/rotate speed (hp/rpm ) | 190/2,600 | |
| Max torque/rotate speed(N.m/rpm) | 510/1,600 | |
| Braking system | Service Brake | Oil brake |
| Park Brake | Spring energy | |
| Auxiliary brake | engine exhaust brake | |
| Electric system | 24v | |
| Upper-body Specification | ||
| Vice generator | ||
| Model | B140 Cummins engine | |
| Rated power (kW) | 103 | |
| Suction Sweep Operation | ||
| Cleaning efficiency | ≥95% | |
| The maximum diameter of the suction body(mm) | 120 | |
| Suction sweep width(mm) | 2.8-3.2 | |
| Maximum cleaning capacity (m2/h) | 60,000 | |
| Butterfly dish brush overhang dimension(mm) | ≥400 | |
| Working speed (km/h) | 3-20 | |
| Water Tank Body | ||
| Rated capacity (m3) | 1.0-1.5 | |
| Garbage Tank Body | ||
| Rated capacity(m3) | 3.5-4 | |
| Discharge door opening angle | ≥45º | |
| Hydraulic System | ||
| Model | Open, electrical control. | |
| The main element | Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valves. | |
| Pressure (Mpa) | 16 | |
| Hydraulic oil tank capacity (l) | 60 | |
| Hydraulic oil temperature (ºC) | 60 | |
| Electrical System | ||
| Model | DC24V | |
| voltage | 24V | |
| Battery | 24V(2 set 12 v battery series connection ) | |
| Sprinkle System | ||
| The main elements | Electric diaphragm pump, water filters, nozzles, etc. | |
| Sweeper Disk Device | ||
| Model | Center 4 sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function. | |
| Diameter (mm) | 850 | |
| Angel | Forward 4-6º roll 4-7º | |
| Sucker Device | ||
| Model | Single suction port, hydraulically controlled, spring suspension. | |
| Diameter (mm) | 200 | |
