•Working Height 12.5 m
•Height to Bottom of Platform 10.97 m
•Horizontal Reach 8.84 m
•Stowed Travel Height 3.05 m
•Platform Capacity 136.08 kg
•Non-Insulated
•Material Handling No
 |
 |
 |
 |
Description

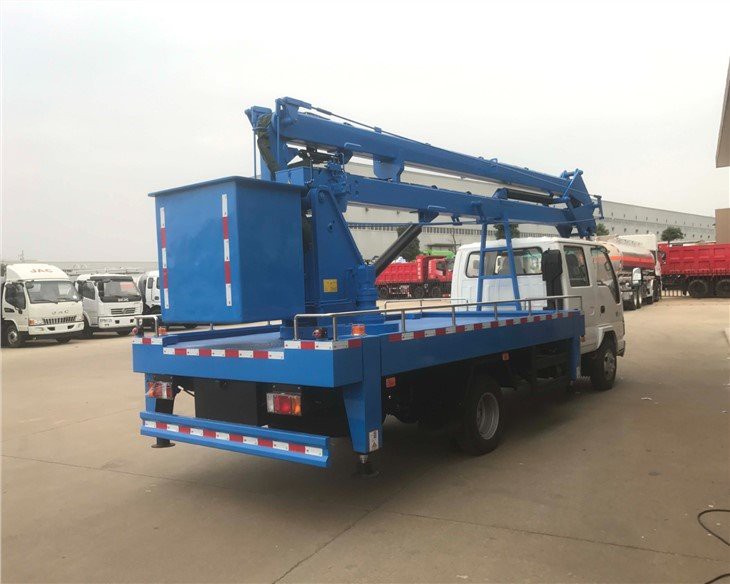

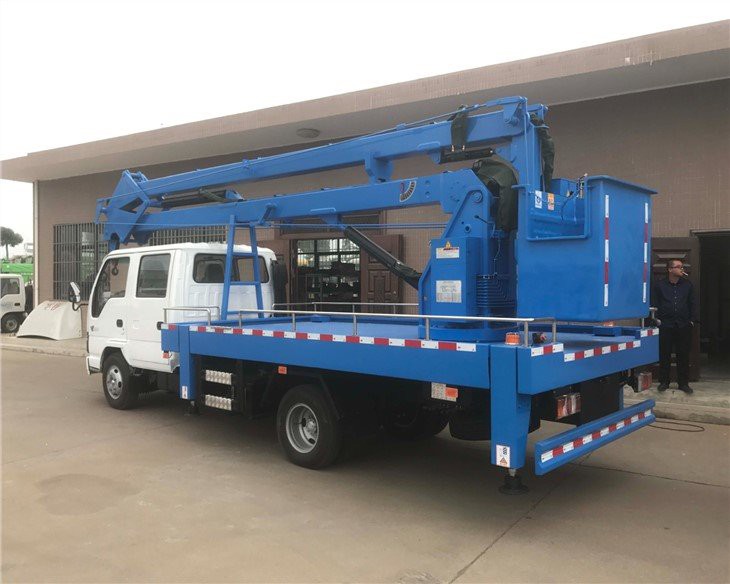

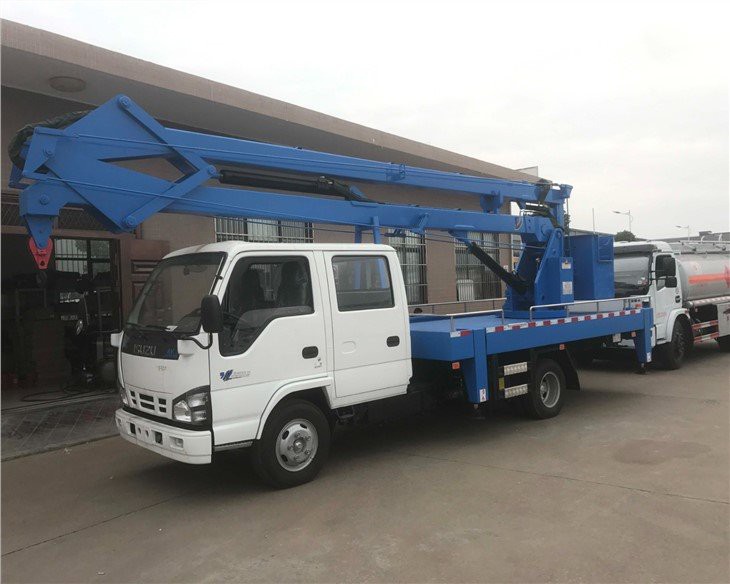

ISUZU Vehicle Mounted Articulated Aerial Lift
OVERVIEW
●Working Height 12.5 m
●Height to Bottom of Platform 10.97 m
●Horizontal Reach 8.84 m
●Stowed Travel Height 3.05 m
●Platform Capacity 136.08 kg
●Non-Insulated
●Material Handling No
CSCTRUCK Aerial Lift Trucks, also known as bucket trucks, are available in a range of insulated and non-insulated models. This model is full hydraulic articulating non-insulated. Aerial lifts by CSCTRUCK offer a lower true cost of ownership to the fleets and contractors that use them in order to maintain and manage overhead infrastructure around China and the world.
CSCTRUCK is a full service provider of aerial equipment. Beyond the design, manufacture, assembly and upfitting of new equipment for fleet and contractor customers, CSCTRUCK offers hundreds of authorized aerial lift service as:
● Design
● Manufacture
● Assembly & Upfitting
● Distribution
● Sales
● Financing
● Post-sales service
● Operator and maintenance training
● Warranty
● Parts & Maintenance
● Fleet Rental Services
SPECIFICATIONS
●HYDRAULIC SYSTEM
| Hydraulic Controls | N/A |
| Operating Pressure | 2500 psi (175.77 kg/cm2) |
| Flow Rate | 3 gpm (11.36 lpm) |
| Filtration | 10 micron return | 100 mesh suction |
| System Type | Open Center |
| Power Source | PTO Pump |
●BOOM
| Upper Boom Articulation | 190° |
| Lower Boom Articulation | 0 to +110° |
| Upper Boom Insulation Gap | 92 in (2.34 m) |
| Lower Boom Insulation Gap | 12 in (0.3 m) |
| Lower Boom Lift Eye Capacity | 1500 lbs (680.39 kg) |
| Boom Rotation | Continuous |
●VEHICLE REQUIREMENTS
| GVWR | 20000 lbs (9071.8 kg) |
| Cab to Axle (minimum) | 84 in (2.13 m) |
