Model No.: CSCFTFE032.
Max. working height: 32M.
3,500L Water Tank & 2,500L Foam Tank.
Overall Dimensions(LxWxH): 10,750×2,530×4,000mm.
Chassis Brand: SAIC-IVECO HONGYAN.
Drive Type: 6×4.
Wheelbase: 5,000+1,400mm.
Full Load Weight: 29,450kg.
Max. Speed: 90km/h.
Engine Power: 287kW.
Water Pump Flow Rate: 100L/[email protected].
Suction Height: 7 meters.
Fire Monitor on Boom Flow Rate: 950-5,700L/min.
Shoot Range: Water≥70m, Foam≥60m.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

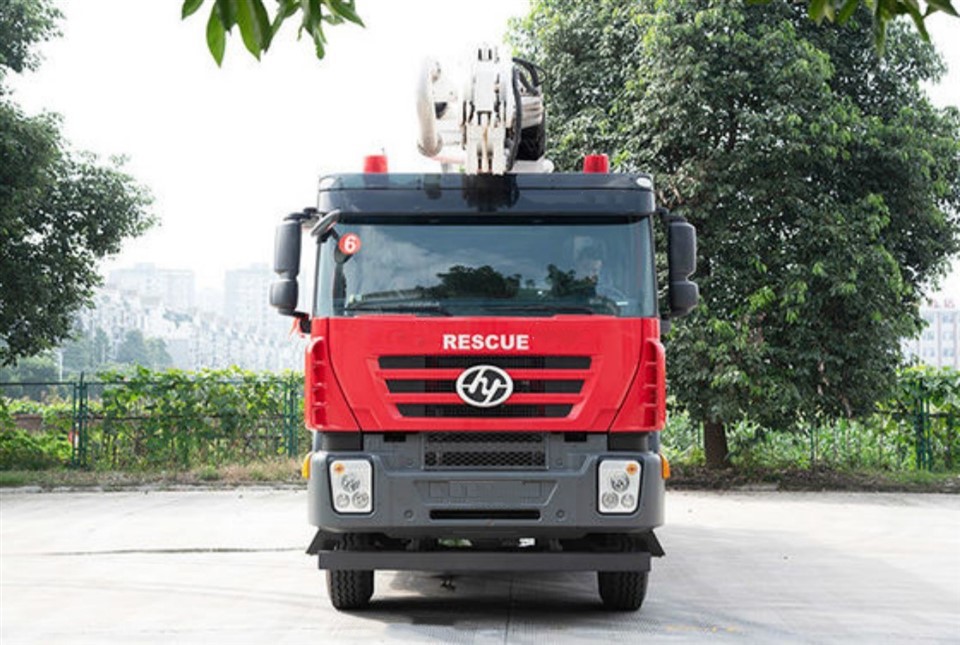

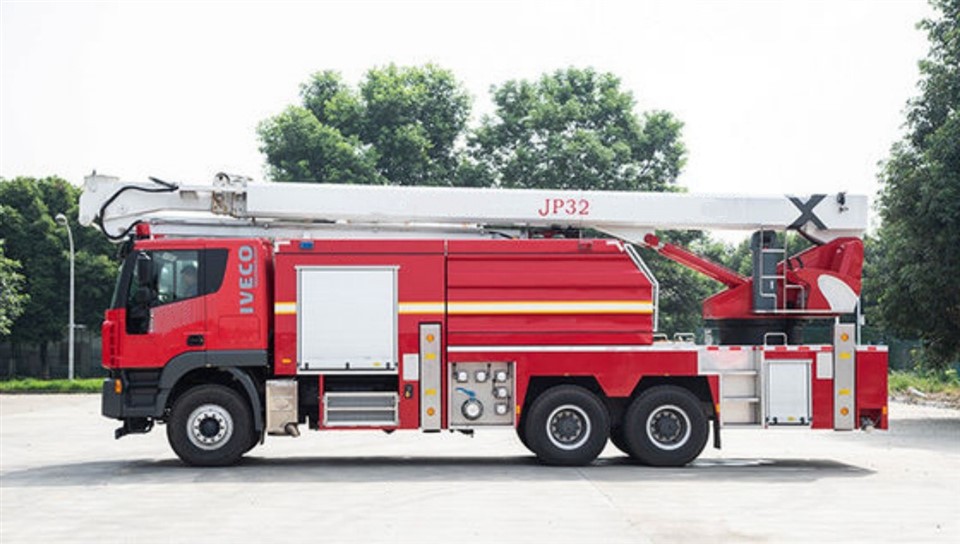

The IVECO 32M foam tower fire engine, manufactured by CSCTRUCK, is a high-performance emergency vehicle designed for advanced firefighting operations. Built on the robust SAIC-IVECO HONGYAN 6×4 chassis, it combines strength, reliability, and versatility to meet the demanding needs of modern firefighting.
This fire engine boasts a maximum working height of 32 meters, making it ideal for high-rise firefighting and rescue missions. Its integrated water and foam tanks have capacities of 3,500 liters and 2,500 liters, respectively, with tanks made of durable PP composite material for enhanced longevity and corrosion resistance.
Equipped with a powerful 287kW engine, the vehicle can reach a top speed of 90km/h and weighs 29,450kg. Its advanced water pump delivers a flow rate of 100 liters per second at 1.0 MPa, ensuring rapid and efficient water delivery. Additionally, it features a 7-meter suction height for drawing water from external sources.
The foam tower’s fire monitor, mounted on the boom, provides adjustable flow rates ranging from 950 to 5,700 liters per minute. The shooting range extends to 70 meters for water and 60 meters for foam, ensuring effective coverage of large-scale fires.
Designed with cutting-edge technology and superior engineering, the IVECO 32M foam tower fire engine is vital for tackling complex fire scenarios. Its exceptional performance and specialized features make it an indispensable asset for fire departments and emergency services worldwide.
FEATURES
1. High Working Reach: Equipped with a foam tower that can operate at a maximum working height of 32 meters, making it ideal for firefighting in high-rise buildings.
2. Large Tank Capacity: Features a 3,500L water tank and a 2,500L foam tank made from durable PP composite material, ensuring sufficient firefighting resources during operations.
3. Impressive Firefighting Performance: The fire monitor on the boom delivers a flow rate of 950-5,700L/min, with a shooting range of ≥70 meters for water and ≥60 meters for foam, enabling effective firefighting at significant distances.
4. Robust Chassis and Drivetrain: Built on a SAIC-IVECO HONGYAN chassis with a 6×4 drive type, the vehicle ensures excellent stability and off-road capabilities, even when fully loaded at 29,450kg.
5. Powerful Engine and Pump System: Powered by a 287kW engine capable of achieving a top speed of 90km/h, and equipped with a water pump that delivers 100L/s at 1.0Mpa with a 7-meter suction height, ensuring rapid water delivery during emergencies.
SPECIFICATION
The Main Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model No. | CSCFTFE032 |
| 1.2 | Overall Dimensions(LxWxH) | 10,750X2,530X4,000mm |
| 1.3 | Full Load Weight | 29,450Kg |
| 1.4 | Number of the Crew | 2 (including driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 3,500L Water & 2,500L Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 100L/s@10bar |
| 1.8 | Fire monitor | 5,700L/min. Flow rate (adjustable), 70m shoot range. |
| 1.9 | Max. working height | 32 meters |
2. Chassis of The Fire Truck
2.1 Brand: SAIC-IVECO HONGYAN
2.2 Model: Optional
2.3 Drive Type: 6×4
2.4 Wheelbase: 5,000mm+1,400mm
2.5 Engine model: Optional
2.6 Engine type: Inline 6-cylinder, turbocharged, inter-cooled diesel engine
2.7 Engine Power: 287kW
2.8 Gearbox type: Manual gearbox
2.9 PTO: Full power sandwich type
2.10 Fuel tank capacity: 200 Liters
3. Aluminum Superstructure/Upper body
| No. | Main Items | Main Technical Parameters |
| 3.1 | Standardized Sub-frame | |
| 3.1.1 | Material | High-strength rectangular tube made of special steel. |
| 3.1.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 3.2 | Aluminum Compartment | |
| 3.2.1 | Material | High-strength aluminum alloy profiles (Never Rust). |
| 3.2.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 3.3 | Aluminum Roller Shutter Door | |
| 3.3.1 | Material | Aluminum alloy profiles with anodized surface. |
| 3.3.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 3.4 | Aluminum Foot Pedals | |
| 3.4.1 | Material | High-quality aluminum alloy. |
| 3.4.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
| 3.5 | Upperbody Electric Appliance | |
| 3.5.1 | Warning Light and Siren | 2 warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 3.5.2 | Strobe Lights | Mounted on both sides of the compartment. |
| 3.5.3 | External Lighting | LED lights are mounted on both sides of the compartment. |
| 3.5.4 | Roof Lighting | LED lights are mounted on the inside of the roof. |
| 3.5.5 | Side Indicator Lights | The inline yellow warning light is mounted on the side of the compartment and the pedals. |
4. Water Pump/Fire Monitor/Liquid Tank
4.1 Water Pump
Flow Rate: 100L/[email protected]
Vacuum Pump: Electric
Priming Type: Automatic
Suction Height: 7 meters
Priming Time: ≤80 seconds
Location: In the Rear Pump Room.
4.2 Roof Fire Monitor on Boom
Flow Rate: 950-5,700 L/min.
Shoot Range: Water≥70meters, Foam≥60meters
Location: On the top of the boom
Control Manner: Remote control
Horizontal Rotation: 0°~355°
Pitch Rotation: -45°~120°
4.3 Water and Foam Tanks
Capacity: Water 3,500 Liters and Foam 2,500 Liters
Materials: PP composite material and Never in Rust
Structure: 2 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valve; 1 Water tank Drain Outlet with Valve.
