MAN 15000 Liters Water Tank Truck

Make/Model: CSCTRUCK/WT15MAN470L6.
Water Tanker Volume: 15,000L.
Overall Dimensions(LxWxH): 10,380×2,500×3,150,3,280(mm)(approx.).
Chassis Brand: MAN.
Drive Type: 6×4.
Wheelbase: 4,500+1,360mm.
Engine Make/Model: MAN/D2676LF99.
Engine Power: 470HP/2,400N·m.
Emission Standard: Euro 6.
Payload: 15,000kg.
Water Tanker Material: SS304.
Pump Make: Honda/GX390.
Flow Rate: 1,800L/min.

Description

BRIEF



The MAN 15,000 liters water tank truck, produced by CSCTRUCK, is a robust and efficient solution for large-scale water transportation needs. Built on a durable MAN chassis, this truck features a 6×4 drive type, ensuring superior traction and stability even on challenging terrains. At its core lies the powerful MAN/D2676LF99 engine, delivering an impressive 470 horsepower and 2,400 N·m of torque. This engine not only guarantees high performance but also meets the stringent Euro 6 emission standards, making it an environmentally friendly choice.

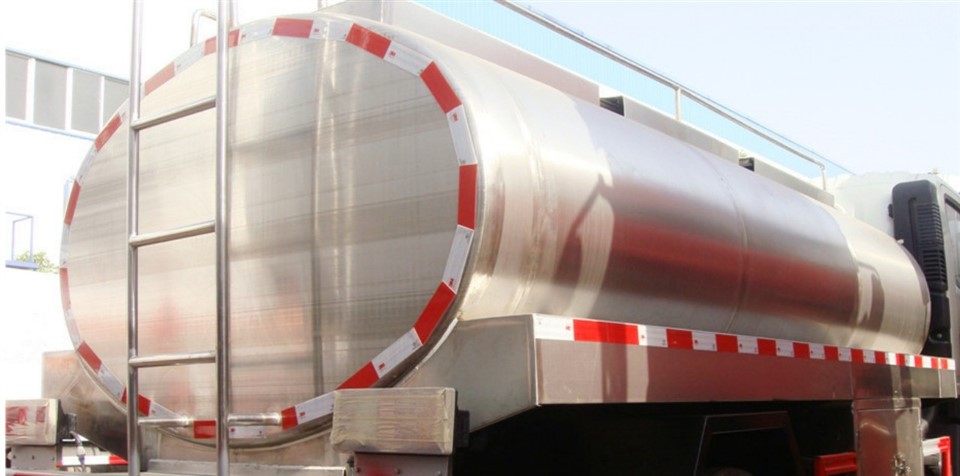

The water tank itself is constructed from SS304 stainless steel, known for its excellent resistance to corrosion and durability, ensuring a long service life. With a capacity of 15,000 liters, the tank is designed to handle substantial water loads efficiently. The water tank truck is equipped with a Honda GX390 pump, capable of delivering a flow rate of 1,800 liters per minute, providing rapid water discharge for various applications, including firefighting, construction, and agricultural use.

See also  HOWO 32000 Liters Fuel Tank Lorry

With a payload capacity of 15,000 kilograms, this MAN water tank truck is designed for heavy-duty operations, offering reliability and efficiency in demanding environments. Its combination of advanced engineering, powerful performance, and high-quality materials makes it a top choice for industries requiring large-volume water transport.



FEATURES



1. High Capacity Water Tanker: The truck is equipped with a 15,000-liter stainless steel (SS304) water tank, ensuring robust and corrosion-resistant storage for large volumes of water.

2. Powerful Engine: It features a MAN/D2676LF99 engine, delivering 470 horsepower and 2,400 N·m of torque, providing the necessary power for demanding tasks while maintaining fuel efficiency.

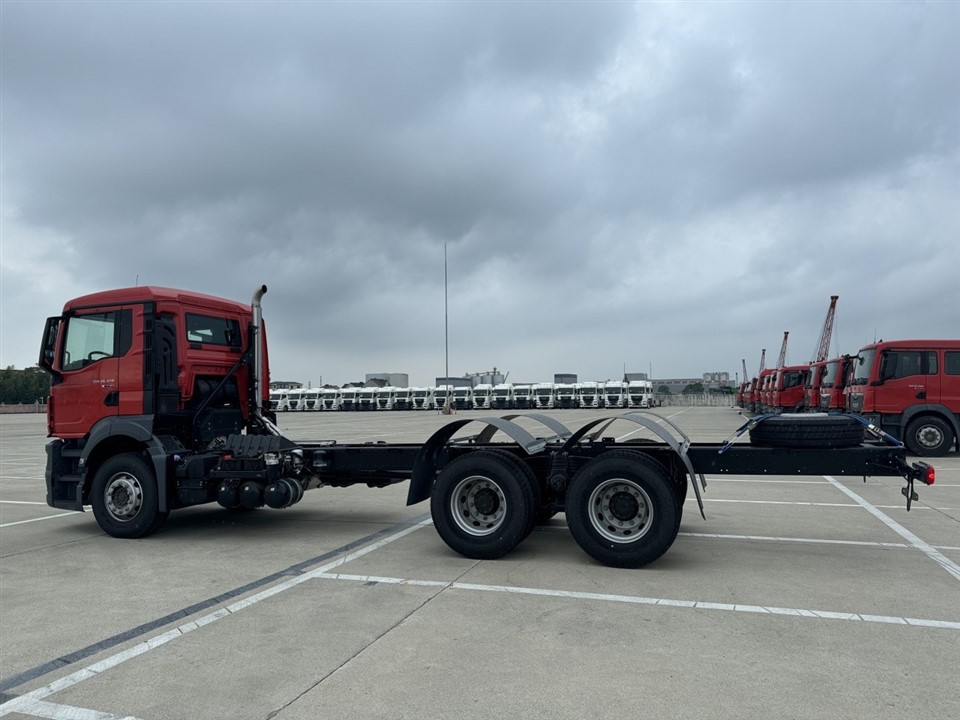

3. Durable MAN Chassis: Built on a reliable MAN chassis with a 6×4 drive type, the truck is designed for enhanced stability and performance across various terrains.

4. Efficient Pump System: The truck is fitted with a Honda/GX390 pump, capable of delivering a flow rate of 1,800 liters per minute, allowing for efficient water dispensing and firefighting applications.

5. Eco-Friendly Design: Compliant with Euro 6 emission standards, the truck minimizes environmental impact by reducing harmful emissions, making it a sustainable choice for water transportation.



SPECIFICATION



PARTS

ITEM

DESCRIPTION

General Information













Make&Model

CSCTRUCK / WT15MAN470L6

1.2 General

Brand new(2024), unused.

1.3 Scope

Heavy-duty, 6×4, water tanker used to support the fair fitting truck in case of any fair happens, for getting water from the sea or water source and refilling the fair fitting truck.

1.4 Steering

Left-hand drive

1.5 Body Volume

15,000L

1.6 Make of Truck

MAN

1.7 Drive Model

6×4

Engine

2.1 Make/Model

MAN/D2676LF99

2.2 Type

Diesel

2.3 HP

470HP/2,400N·m

2.4 Emission Standard

Euro 6 Standards

Gearbox





3.1 General

Manually operated gearbox

3.2 Make/Model

MAN/16.25OD

3.3 Gear ratio

3.36

Axles

4.1 Front Axle Loading

7.5Tons

4.2 Rear Axle Loading

9.5Tons × 2

Wheels & Tires

5.1 Specs. Of Tires

295/80R22.5

Weight and Performance





6.1 Gross Vehicle Weight

26,000kg

6.2 Curb Weight

9,500kg (approx.)

6.3 Payload

15,000kg

Major Dimension



7.1 Overall Dimension(LxWxH)

10,380×2,500×3,150, 3,280(mm)(approx.)

7.2 Wheelbase

4,500+1,360(mm)

CAB







8.1 General

Sleeper cab

8.2 Air Conditioner

Installed

8.3 Other Equipment

Radio, electric door window lifter

driver’s seat, high-comfort, with air suspension

Electrical

9.1 Electrical System l

24volts electrical system

Brake

10.1 Type l

Electronic brake system

Tank

11.1 Tank Loading Capacity

15,000L

11.2 Material

SS304

Anti-corrosion and non-reactive material-coated interior

11.3 Manhole

A top manhole for inspection

Catwalk and ladder

12.1 Model

Walkway on the top of the tanker.

Hose reel

13.1 General

A double-sided hose reel along the tanker, equipped with a non-slip surface.

Water Level meter



Installed

Tools Box



Installed

Pump

16.1 Make

Honda/GX390

16.2 Flow rate

1,800L/min

16.3 Type:

Stainless steel pump with inlet 4-inch, outlet 4-inch; Gasoline engine

Painting

17.1 General

CSCTRUCK standard Top 1. Painting

Color & LOGO on requirement.
