30Ton Boom Retracted Capacity
Boom Max Lift Height 5.5m
12Ton Underlift Retracted Capacity
25Ton Underlift Towing Capacity
2x10Ton Winch capacity
 |
 |
 |
 |
Description
Underlift
– Retracted capacity on forks 11.3 ton (25,000 lbs) / * 9.5 ton (21,000 lbs)
– Retracted distance to the forks 2135 mm (84”) / * 1701 mm (67”)
– Extended capacity on forks 6.8 ton (15,000 lbs) / * 5 ton (11,000 lbs)
– Extended distance to the forks 3773 mm (149”) / * 3657 mm (144”)
– Negative tilt angle -13°
– Tow Rating 25 ton (55,000 lbs)
Boom
– Retracted capacity (at 41°) 30 ton (66,100 lbs)
– Extended capacity (at 41°) 15 ton (33,000 lbs)
– Maximum Lift angle 41°
– Maximum Hook Height 5117 mm (217”)
– Reach Past Tailboard 1853 mm (73”)
Winch
– Quantity 2 pcs
– Pulling force (on 1st layer) 10 ton (22,000 lbs)
– Winch type Planetary
– Cable length 19 mm x 60 m (3/4″ x 200′)
Vehicle Recommendations
– Front axle(s) weight (min) 5.4 ton (12,000 lbs)
– Rear axle(s) weight (min) Single 10.4 ton (23,000 lbs) or Tandem 2 x 9 ton (2 x 20,000 lbs)
– Reccomended GVW 15 ton (33,000 lbs)
– Reccomended Tire size R22,5
– Clear CA 3489 mm (137”)
Line Drawing

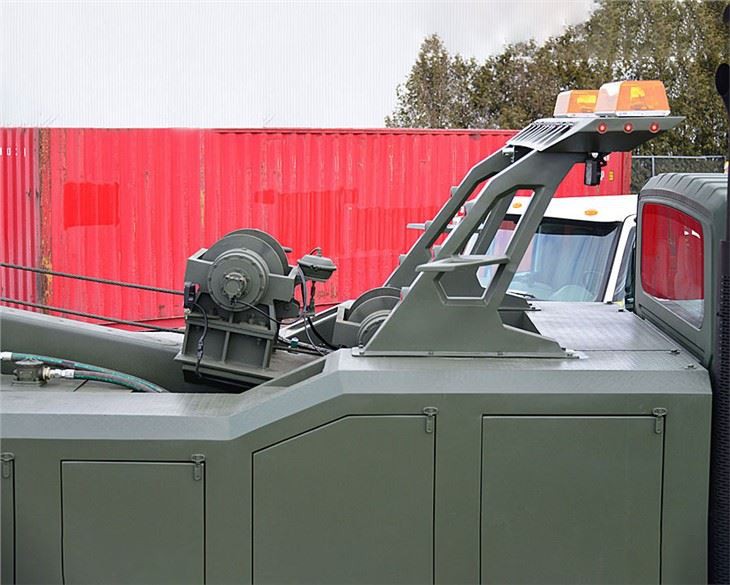

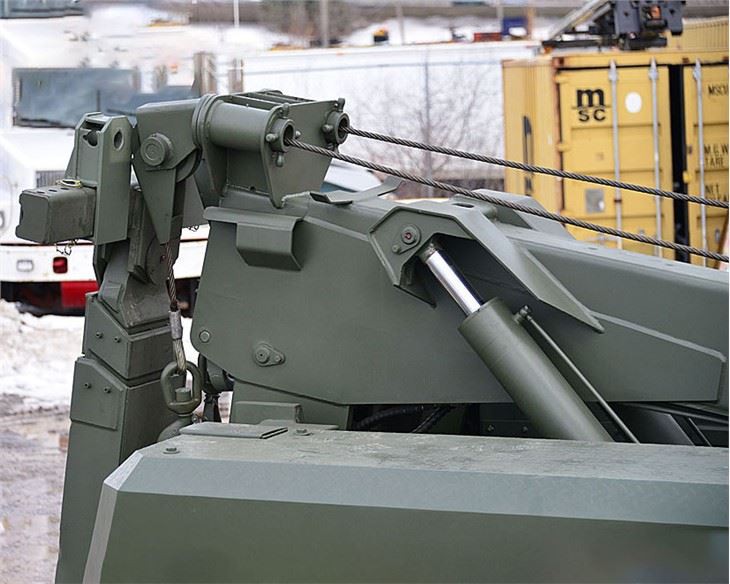

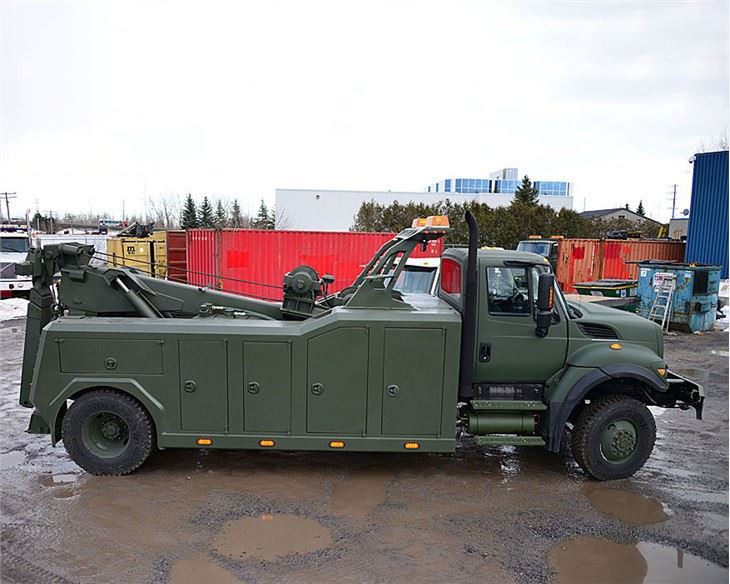

INT30 Unit Reference Photo not including chassis truck
