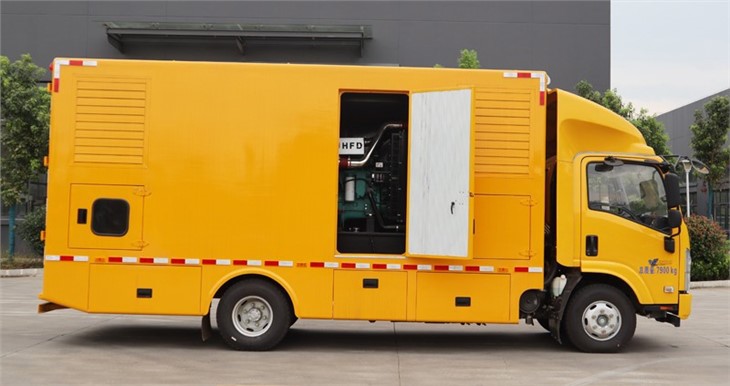

Chassis: ISUZU 700P 4X2
Engine: ISUZU/4HK1-TC51/190HP/EURO V
Transmission: ISUZU/MLD/Manual/6F+1R
Equipment: BT NETWORK MAINTENANCE TOOLS
TOOLS FOR MAINTENANCE OF POWER LINES
 |
 |
Description
|
TRANSMISSION |
ISUZU/MLD/Manual/6F+1R |
|
ENGINE |
ISUZU/4HK1-TC51/190HP/EURO V |
|
Size |
5045x2010x2160mm |
|
Wheelbase |
3815mm |
|
Body Length |
3500mm |
|
WEIGHT |
|
|
Curb Weight |
3250 kg |
|
GVW |
7900kg |
|
SECURITY |
ABS |
|
ACCESSORIES |
|
|
1* Spare wheel 2* Warning triangles 1* Hydraulic jack adapted to the vehicle and the weight transported 2* Warning triangles 1* Fire extinguisher adapted to the vehicle User and maintenance manual |
|
|
BT NETWORK MAINTENANCE TOOLS |
|
|
1 Professional 3-plane ladder with rope 1 Manual hydraulic press 16 to 630 mm². 1 Cable cutter 1 Voltage checker and LV phase rotation up to 690V 1 Toolbox with 49 to 52 insulated tools for the electrician 1 Torque spanner set and accessories |
|
|
TOOLS FOR MAINTENANCE OF POWER LINES |
|
|
– 1* Professional 3 plane ladder with rope – 1* Manual hydraulic press 16 to 630 mm². – 1* Cable cutter – 1* 30 kV MV voltage tester – 1* Toolbox with 49 to 52 insulated tools for the electrician – 1* Torque spanner set and accessories – 1* Earthling and short-circuiting device for bare overhead systems – 1* Cable preparation tool set for HV cables 50 to 630 mm² consisting of: Removal of the outer sheath and stripping of the insulation Cutting of the peel-able semi-conductor and machining of the non-peelable semi-conductor Creation of slots in the outer sheath Fold back the outer sheath on the screen socket Spreading the outer sheath on POPY and NIKOL cable Flare the outer sheath on S23 or NF C33-223 or UTE C33-226 VINYL type cable with a cross-section of 50 to 95 mm². Flare the outer sheath on S23 or NF C33-223 or UTE C33-226 VINYL cable with a cross-section of 150 to 240 mm². Flare the outer sheath on cable 2000 or UTE C33-226 VINYL of section 150 to 240 mm². Make a chamfer at the end of the insulation Create a cone at the end of the insulation – sections 50 mm², 95mm², 150 mm², 240 mm², 630 mm². Remove any trace of external semi-conductor on the insulation Ligate clamp Spare blade for OUT SCP Spare blade for POLY DT Spare blade for FENTE Spare blade for CHANFREIN Spare blade for CONE – 1 infrared thermal camera with the following characteristics: IR resolution – between 320 × 240 and 640 × 480 Object temperature range – from -20ºC to 650ºC and -40ºC to 2000ºC Accuracy – ±2ºC (±3.6ºF) or ±2% of reading to ±1ºC (±1.8ºF) or ±1% of reading Thermal sensitivity – between <30 mK at 30 ºC and <20 mK at 30 ºC Display size – between 4″ LCD and 4.3″ LCD |
|
