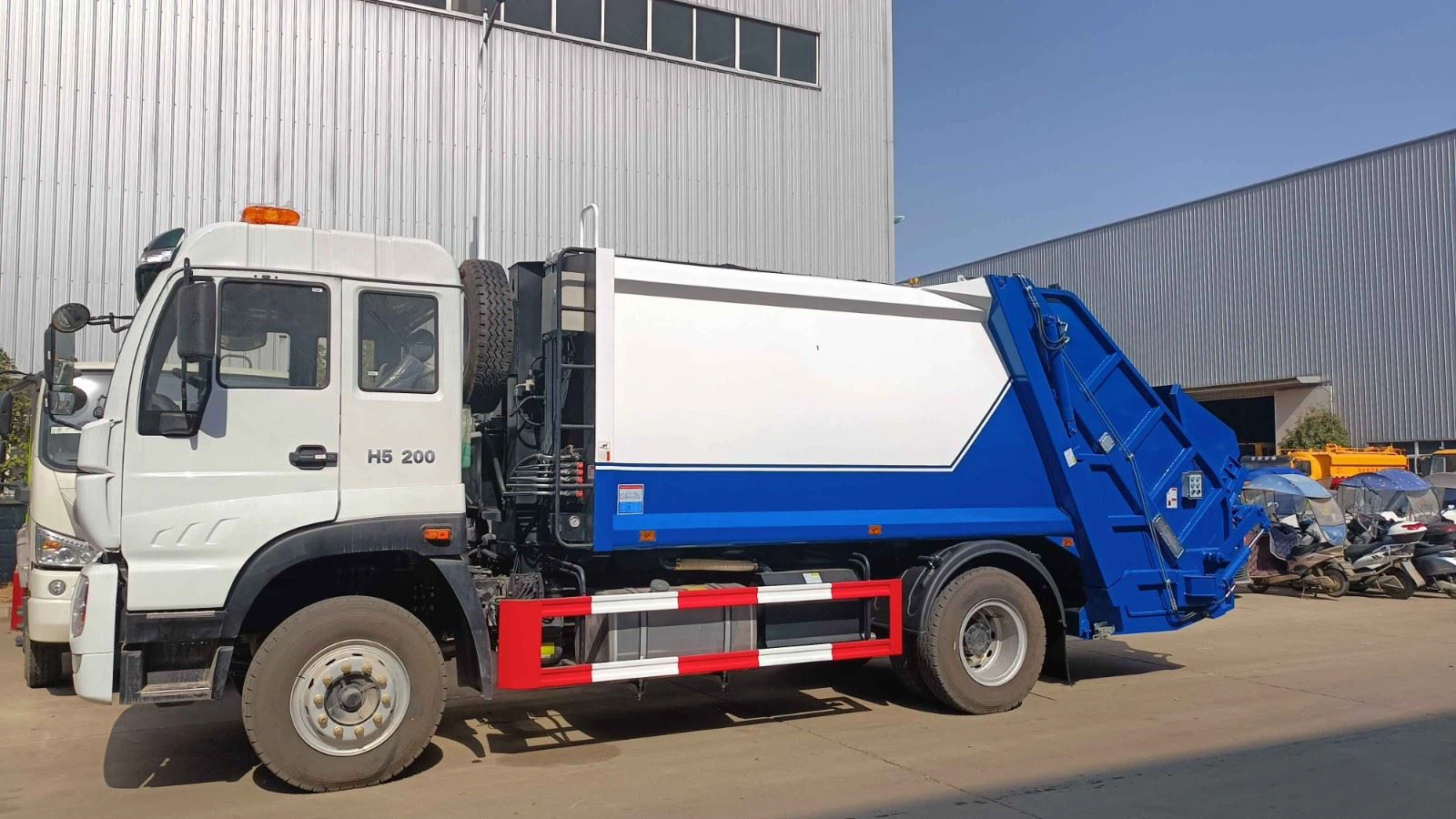

Capacity: 14CBM
Driving type: 4×2, LHD
Engine: 200hp Euro V
Size: 6750×2400×2600(mm)
G.V.W: 18000kg
Curb Weight: 7820kg
Full Payloading: 9985kg
 |
 |
 |
 |
Description
The key structural parts of the Municipal Waste Transfer Truck are all made of high-strength T420 steel plates, which are fully continuously welded by gas shielded welding to ensure that there is no deformation during the press-fitting operation.
The side plate of the box adopts an integral structure, and the top plate adopts an arc design;
The Municipal Waste Transfer Truck has good airtightness, with a large-volume sewage tank on the side of the girder and a large-volume sewage tank at the bottom of the filler, without secondary pollution such as sewage leakage and garbage spillage;
The compression ratio is not less than 2.5:1;
In the hydraulic oil circuit that lifts the filler, there is a safety circuit (inlet balance valve) to prevent the oil pipe from bursting and the filler suddenly falling down and causing a vicious accident;
With peristaltic compression function, special compression multi-way valve is adopted;
With engine throttle automatic control;
The key components and electrical components (with PLC programmable controllers) are imported from Germany; German Siemens PLC programmable controllers;
Centralized control of electricity, gas and liquid;
Double insurance system; with automatic and manual operation;

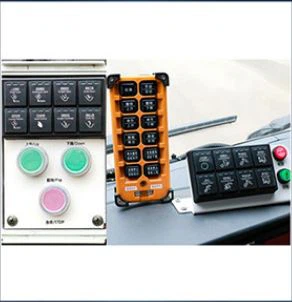

Equipped with operation control box in the cab and the rear of the vehicle;

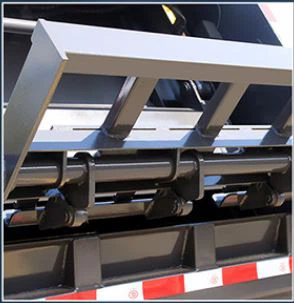

The key parts of the overturn frame and the oil cylinder mounting seat are made of high-strength cast steel, with high strength, small deformation, and durability.
The upper part of the box adopts an arc-shaped box, and the bottom plate is welded seamlessly, which eliminates the risk of leakage. Simple and beautiful, strong anti-deformation performance, good structural reliability, while effectively increasing the filling volume, exceeding similar products, the material is made of high-strength manganese steel, not easy to deformation, wear resistance, strong corrosion resistance.

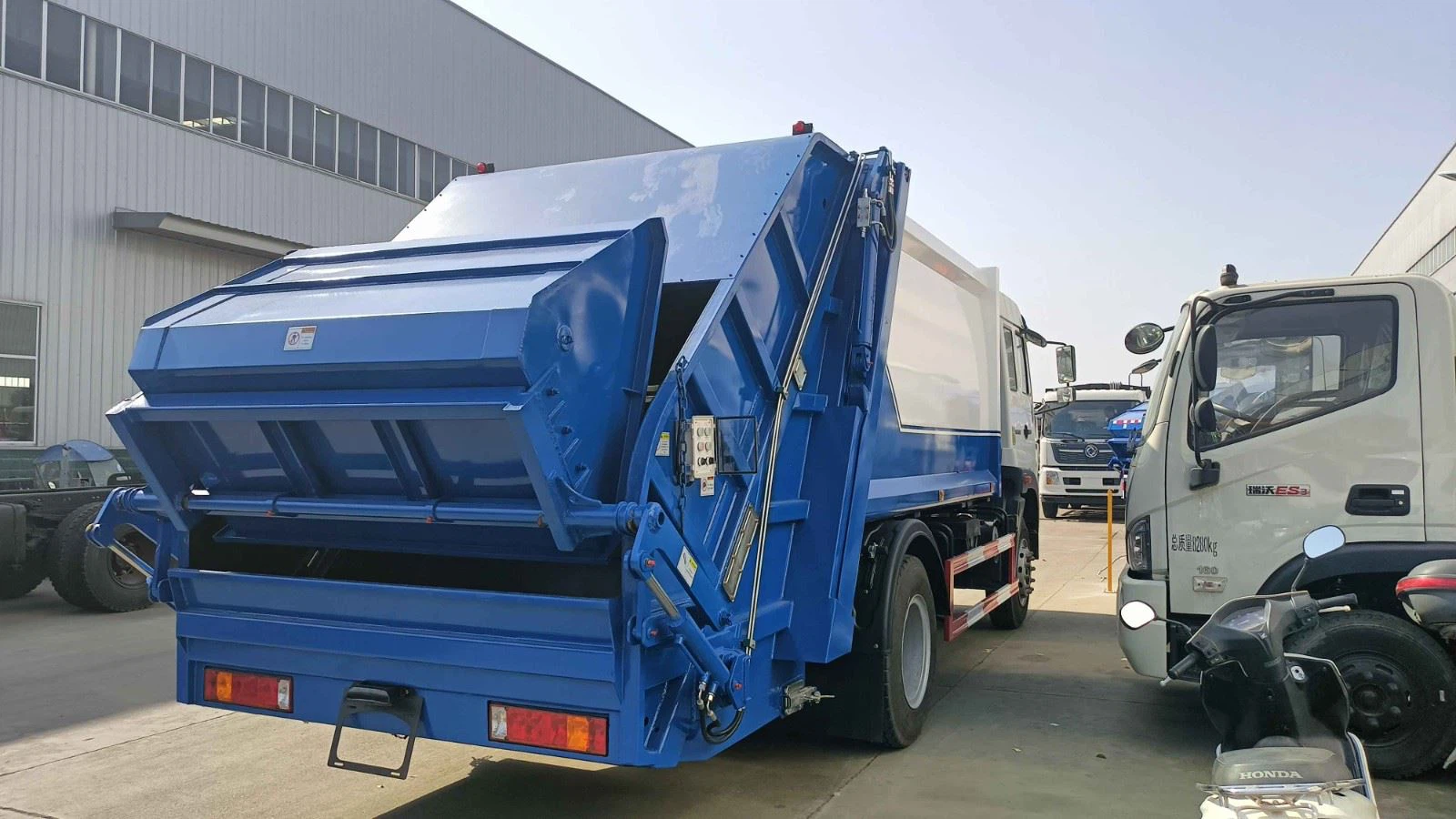

Tailgate hopper, filling of garbage, rear garbage bin tipper and loading of various garbage.
CAN bus control, with one-button unloading, with automatic lifting function, scraping garbage in sections, avoiding jamming, dual system control, with wireless remote control, remote operation.

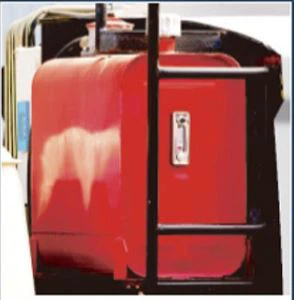

The volume of the oil tank is increased, the cooling efficiency is improved, the oil temperature and oil pressure are stabilized, and the oil return filter device is provided to prolong the service life of the oil.
Optional back pressure valve, compaction valve, two-way compression, increase the compression ratio of the loaded garbage and increase the loading capacity of the garbage.
A variety of garbage bin tipper are optional.
A large-area filter screen is installed on the top of the box to reduce clogging and ensure the smooth flow of suction. A diversion groove is set on the top of the tank to improve the dust reduction effect, make the garbage accumulation evenly, and improve the effective capacity.
First-line brand hydraulic cylinder, stable quality, durable, using external mechanism, high pressure, fast cycle speed.
Domestic first-line brand power take-off, accurate matching according to engine horsepower, stable quality and guaranteed, double pump can be selected according to the size of the vehicle.
Using a manual valve, high precision and stable performance.
