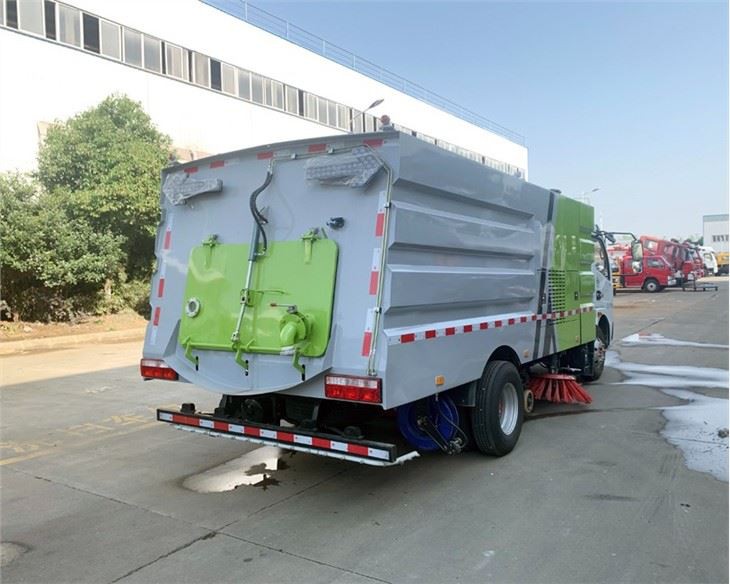

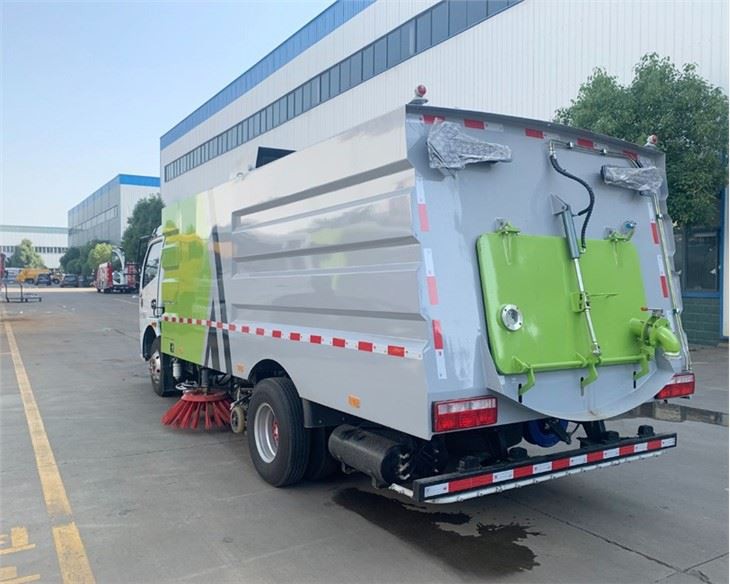

Road Sweeper Cleaning Truck

BRIEF The Road Sweeper Cleaning Truck sweeps the debris to the specified position by the disc brush , and uses the high-pressure fan of the dust suction system to generate a high-speed air flow, which forms a strong negative pressure in the hopper, and sucks the debris into the garbage hopper….

The Road Sweeper Cleaning Truck sweeps the debris to the specified position by the disc brush , and uses the high-pressure fan of the dust suction system to generate a high-speed air flow, which forms a strong negative pressure in the hopper, and sucks the debris into the garbage hopper. The whole process sprays water to reduce dust. The functions of water, sweeping, inhaling garbage and automatic unloading are widely used in cleaning and cleaning operations in urban roads, squares, airports, stadiums, docks, schools and other places.

Road sweeping, Road scouring.        Road cleaning                               Equipped high-pressure nozzle, spraying dust

STRUCTURAL

Clean Water Tank

The clean water tank is a weldment of corrugated steel structure for storing clean water. The upper tank has a water inlet, lower tank has a water outlet and a water supply channel for fire protection, and there is a water level gauge on the side to observe the water level.

Air Filter

Filter the air entering the auxiliary engine to ensure that the air entering the cylinder is clean and free of impurities.

Trash Hopper

The dustbin is a corrugated welded structure, independent dustbin, large space, and built-in stainless-steel material and inner with dust suppression system.

Hydraulic Tank

The hydraulic oil tank has a volume of 60 liters and comes with a return oil filter function. Each filling of No. 46 high temperature resistance, anti-wear and pressure hydraulic oil, hydraulic oil could not exceed 2/3 of the tank volume.

Auxiliary Engine

Suitable engines can be installed according to the model and customer requirements, usually Isuzu X4933 and Cummins B140-33. The auxiliary engine is the source of the power of the whole vehicle.

Centrifugal Fan

The fan is the significant component of the whole vehicle. It provides power through the engine to drive the fan to run at a high speed, extract the air in the dust box, and form a negative pressure, so as to absorb the debris through the suction gutter which mounted under the truck chassis.

Hydraulic Cylinder

We use famous and qualified cylinders.

Disc Sweep Broom

We use famous and qualified cylinders.

Dust Suppression System

The dust suppression of the road sweeper is divided into three parts: the sweeping disc, the suction gutter and the inside dust suppression.

The disc dust suppression is completed by the stainless-steel mist spray system on the upper side of the sweeping disc. The gutter dust suppression is completed by the water spray nozzle inside the suction gutter, and the hopper inner dust suppression in the box is completed by the circular mist spray system on the stainless-steel hopper port.

Hydraulic Motor

Using Sanyo cycloid motor imported from Japan, the maximum speed can reach 475 rpm, exquisite workmanship and reliable quality.

Gutter Sucker

The suction gutter is a self-made metal structure with a built-in dust suppression system. The suction gutter is the important part of the road sweeper, and the structure of the suction gutter directly determines its flow field distribution, thereby determining the cleaning efficiency. Its function is to suck the garbage slope on the ground into the dust collecting box under the negative pressure of the fan.

Fuel Tank

The fuel tank for truck fuel tank for auxiliary engine and hydraulic oil tank could be combined together as a supper oil tank.

Hydraulic Monoblock Valve

The hydraulic system is the fundamental guarantee for the power of the vehicle. It is composed of hydraulic pump, hydraulic cylinder, relief valve, throttle valve, hydraulic control check valve, balance valve, pressure maintaining valve, reversing valve, hand pump, hydraulic oil tank, connecting oil pipe, etc.

1. Collect garbage by means of suction and sweep, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface.

2. The auxiliary engine is used to drive the fan and hydraulic system to ensure that it can continue to work during the driving process and to ensure the continuity of the cleaning process.

3. The structure layout of “central four sweeping discs + spray dust suppression device + central partition + rear suction nozzle” is adopted, so that the sand and gravel will not splash and dust during the cleaning process. This layout is convenient for the adjustment and maintenance of the cleaning device and suction cup. The vehicle has good passability during field work.

4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan when it starts and stops without load, reduces the impact on the auxiliary engine, and improves the working reliability and use of the auxiliary engine. life.

5. The sweeper has automatic avoidance protection function and automatic reset function when encountering obstacles. It automatically retracts when encountering obstacles, and automatically returns when it crosses obstacles.

6. The rotating speed of the sweeping disc can be adjusted according to various cleaning conditions, which can ensure a good cleaning effect under various pollution conditions.

7. Adopt advanced and efficient special fan and fully floating suction nozzle that can automatically level with the road surface, with good cleaning effect and long service life.
