Model No.: CSCAFT006.
5,000L Water Tank & 500L Foam Tank.
Overall Dimensions(LxWxH): 8,550×2,600×3,950mm.
Chassis Brand: Scania P450.
Drive Type: 4×4.
Wheelbase: 4,550mm.
Engine model: SCANIA DC13 148 W02.
Rated power: 332/1,900(kW/rpm).
Emission standards: Euro VI.
Full Load Weight: 19,500kg.
Max. Speed: 100km/h.
Fire Pump Flow Rate: 120L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 100L/s@10bar.
Shoot Range: Water≥90m, Foam≥85m.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

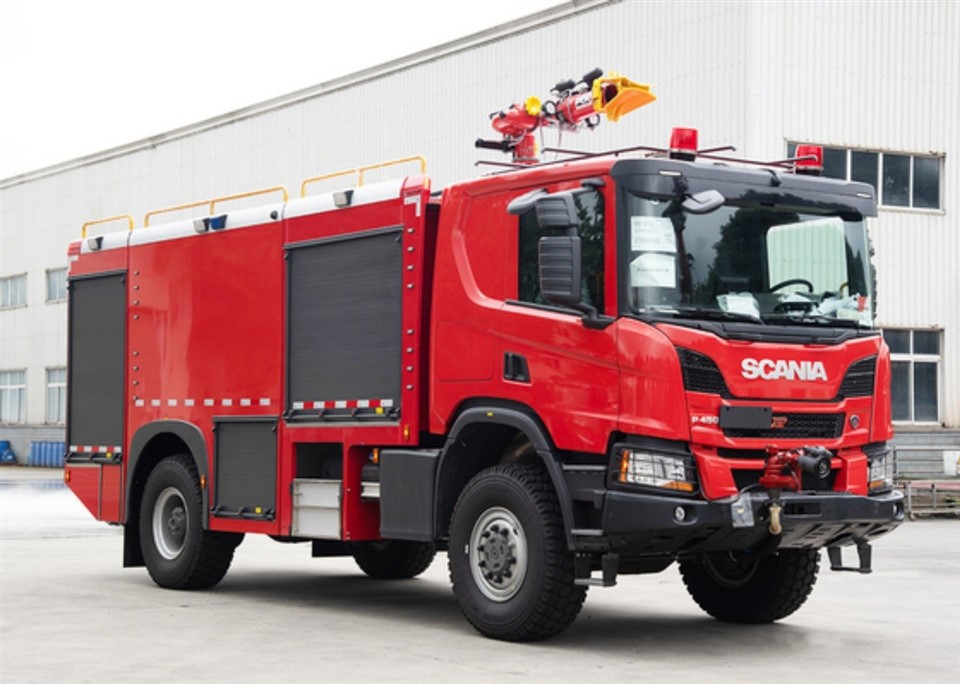

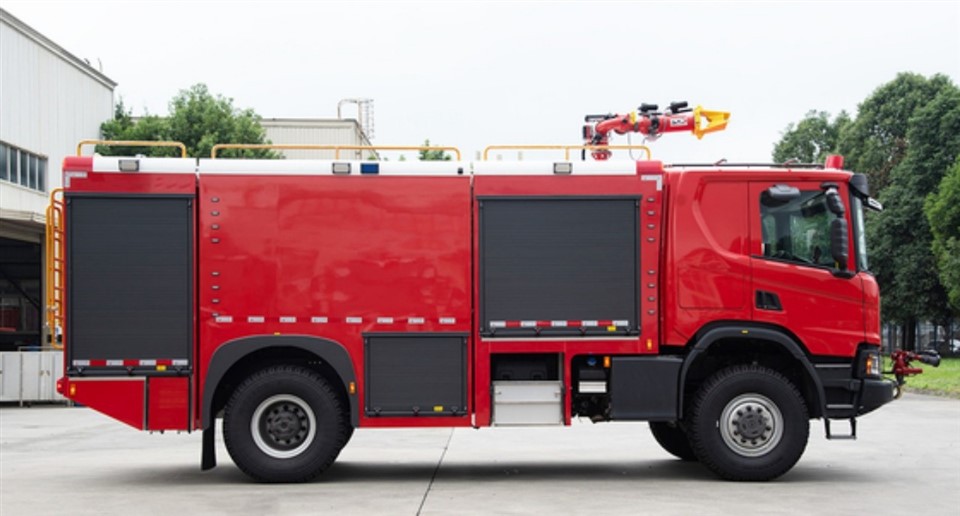

The Scania 4WD 6000 liters ARFF (Airport Rescue and Fire Fighting) fire truck, produced by CSCTRUCK, is a robust and highly capable firefighting vehicle designed to handle the most demanding emergencies at airports. Built on the Scania P450 chassis, it features a 4×4 drive system for superior mobility and off-road capability, essential for navigating rugged terrain and reaching emergencies in challenging environments.
Equipped with a SCANIA DC13 148 W02 engine, this vehicle delivers an impressive 332 kW of rated power at 1,900 rpm, ensuring optimal performance. The engine complies with the Euro VI emission standard, contributing to reduced environmental impact while maintaining high efficiency. The truck has a full loading weight of 19,500 kg and can reach a maximum speed of 100 km/h, allowing it to quickly respond to emergencies.
The fire truck‘s fire suppression systems are built for high performance, featuring a 5,000-liter water tank and a 500-liter foam tank, offering an effective means of controlling fires at airports or industrial sites. The truck is equipped with a powerful fire pump with a flow rate of 120L/s at 10 bar, capable of delivering a 7-meter suction height for drafting water from sources like lakes or hydrants. The fire monitor can achieve a flow rate of 100L/s at 10 bar, with a shooting range of 90 meters for water and 85 meters for foam, enabling effective firefighting at significant distances.
The fire truck‘s water and foam tanks are constructed from PP composite material, ensuring durability and resistance to corrosion. The Scania 4WD 6000L ARFF fire truck combines cutting-edge technology with robust design, making it a highly effective and reliable solution for airport fire services.
FEATURES
1. Powerful Engine and Chassis: The fire truck is powered by a Scania P450 chassis with a SCANIA DC13 148 W02 engine, delivering 332 kW at 1,900 rpm. This robust engine ensures high performance in emergencies.
2. High Water and Foam Capacity: The truck is equipped with a 5,000L water tank and a 500L foam tank, providing ample firefighting resources for large-scale fire suppression, especially in aviation or industrial fire emergencies.
3. Advanced Firefighting Technology: The truck features a 120L/s@10bar fire pump, capable of maintaining high flow rates for effective firefighting, alongside a 100L/s@10bar fire monitor with a long-range shooting capability of up to 90 meters for water and 85 meters for foam.
4. High Mobility and Durability: With a 4×4 drive type (4WD) and a maximum speed of 100 km/h, the Scania ARFF fire truck ensures swift response times in diverse terrains, while its 7m suction height guarantees reliable water intake even in challenging conditions.
5. Compliance with Modern Standards: The vehicle meets the Euro VI emission standard, promoting environmental responsibility while maintaining high-performance capabilities. Additionally, its 19,500kg full loading weight ensures stability and robustness, while the PP composite material tank enhances durability and resistance to harsh firefighting conditions.
SPECIFICATION
The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model No. | CSCAFT006 |
| 1.2 | Overall Dimensions(LxWxH) |
8,550×2,600×3,950mm |
| 1.3 | Full Load Weight |
19,500kg |
| 1.4 | Number of the Crew | 2(include driver) |
| 1.5 | Max. Speed | 100km/h |
| 1.6 | Capacity | 5,000L Water & 500L Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 120L/s@10bar |
| 1.8 | Fire monitor | Front mounted monitor 30L/s, roof-mounted monito100L/s |
| 1.9 | Painting | Fire Red |
2. Chassis
Manufacturer: Scania
Model: P450
Drive Type: 4×4
Wheelbase: 4,550mm
Engine model: SCANIA DC13 148 W02
Engine type: In-line 6-cylinder, 4-stroke, water-cooled, XPI high-pressure common rail injection system, with exhaust gas turbocharging and central air intake cooling system.
Rated power: 332/1,900(kW/rpm)
Gearbox form: 6-speed automatic transmission
Fuel tank capacity: 200L aluminum fuel tank
Emission standards: Euro VI
Braking system: ABS brake anti-lock braking system.
3. Superstructure / Upper Body
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Single row cabin with 2 doors. |
| 3.1.2 | Seats | 2 seats with 3-point safety belt. |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel. |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 4.3 | Compartment | |
| 4.3.1 | Material | High-strength aluminum alloy profiles. |
| 4.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 4.4 | Roller Shutter Door | |
| 4.4.1 | Material | Aluminum alloy profiles with anodized surface. |
| 4.4.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 4.4 | Superstructure Electric Appliance | |
| 4.4.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 4.4.2 | Strobe Light | Mounted on both sides of the compartment. |
| 4.4.3 | External Lighting | LED lights are mounted on both sides of the compartment. |
| 4.4.4 | Roof Lighting | LED lights are mounted on the inside of the roof. |
| 4.4.5 | Side Indicator Light | The inline yellow warning light is mounted on the side of the compartment and the pedals. |
5. Fire Extinguishing System
5.1 Fire Pump
Flow Rate: 120L/s@10bar
Vacuum Pump: Electric vacuum pump.
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤100s
Location: Rear-mounted.
5.2 Fire Monitor
Flow Rate: 100L/s@10bar
Shoot Range: Water≥90m, Foam≥85m
Location: On the top of the tank.
Control Manner: Electric remote control.
Horizontal Rotation Angle 0°~330°
Pitch Rotation Angle: -7°~45°.
5.3 Liquid Tank
Capacity: Water 5,000L, Foam 500L.
Material: PP composite material and Never Rust.
Structure: 2 Tank Manholes; 2 Overflow Devices/Pressure Relief Devices; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves.
5.4 Control Panel
It adopts advanced CANBUS 2.0 bus control technology and is equipped with a pump room operation control panel and a handheld wireless operation terminal, which can realize functions such as one-click water dispensing, stable flow and pressure, and automatic adjustment of foam ratio.
