Model No.: CSCTRUCK Self Loader Truck Mounted Crane 5t.
Function: 4 in 1(Crane work, Delivery, Extra valves, Self-Loader)
Max. Lifting Capacity: 5,050kg at 2.5m.
Max. Hook Height: 15.1m.
Max. Working Radius: 13.14m.
Max. Boom Length: 13.38m.
Min. Boom Length: 3.78m.
Boom Sections: 5.
Boom Raising Angle: Min.1°to Max.78°.
Slewing Angle: 360°Continuous.
Chassis Brand/Engine Brand: Optional.
 |
 |
 |
 |
Description
BRIEF

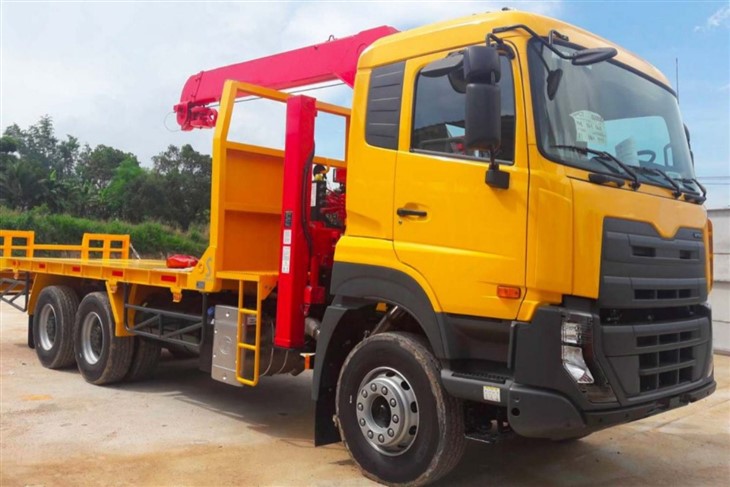

The CSCTRUCK Self-loader Truck Mounted Crane 5t is a versatile and efficient solution for various lifting and construction needs. This 4-in-1 crane can be installed on selected chassis and the engine is optional.
With a maximum lifting capacity of 5,050kg at 2.5m, the crane ensures robust performance for lifting heavy loads. It boasts a maximum hook height of 15.1m, providing ample reach for diverse lifting tasks. The impressive maximum working radius of 13.14m and a boom length ranging from 3.78m to 13.38m ensure flexibility and adaptability to different job site requirements.
Featuring 5 boom sections and a boom raising angle from 1° to 78°, the crane offers precise control and maneuverability, enabling operators to tackle various lifting challenges with ease. Additionally, its 360° continuous slewing angle enhances operational efficiency by allowing seamless rotation and positioning of loads.
Equipped with a 4-in-1 functionality, including crane work, delivery, extra hydraulic use, and self-loading capabilities for construction machinery, this Self-loader Truck Mounted Crane offers comprehensive solutions for a wide range of applications. Whether it’s lifting heavy materials, transporting goods, or loading construction equipment, the CSCTRUCK Self-loader Truck Mounted Crane 5t delivers exceptional performance and reliability, making it an indispensable asset for construction and logistics operations.
Crane work
Delivery
Extra valve for extra hydraulic use

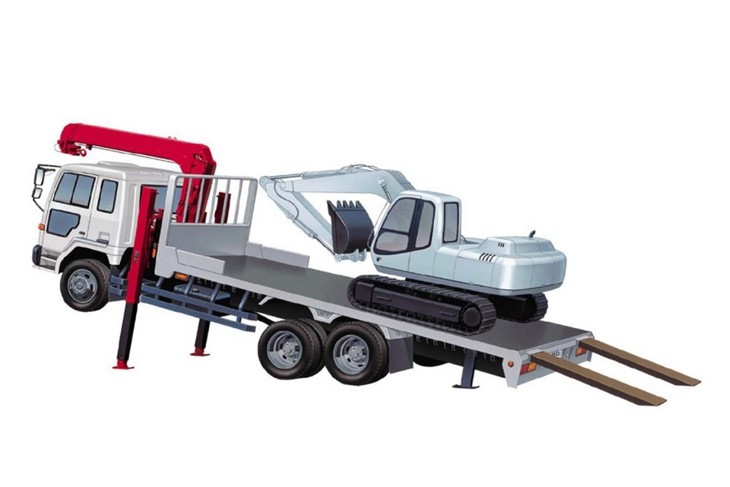

Self-loader for construction machinery
FEATURES
1. 4 in 1
Truck-mounted cranes are versatile cargo-handling machines renowned for their ability to lift, load, transport, and perform various operations seamlessly with the aid of both the crane and the truck it’s mounted on.
By combining the functionalities of 2 distinct mobile cranes, a single truck-mounted crane can undertake tasks typically requiring separate loading and transporting equipment. Traditionally, loading and unloading tasks are carried out by truck cranes, while cargo transportation is managed by dedicated cargo trucks.
The integration of these functions into a single unit offers substantial cost advantages, diminishing expenses associated with purchasing, renting, and fueling 2 separate mobile crane types.
2. Swift
Truck-mounted cranes affixed atop cargo trucks, are authorized to travel at the same legal speeds as their carrier vehicles. Unlike some cranes restricted from public roads or mandated to travel below speed limits, truck-mounted cranes enjoy freedom from such constraints. This flexibility not only minimizes driver fatigue and cuts transportation expenses but also enhances efficiency by hastening arrival at construction sites, ultimately shortening project durations. It’s important to adhere to relevant local regulations governing travel speeds.
3. Compact Enough For Constrained Areas
Truck-mounted cranes boast a reduced turning radius compared to their larger mobile counterparts.
In densely populated residential and urban centers, the abundance of buildings and narrow roads often necessitates lengthy detours for large cranes or the closure of roads adjacent to construction zones.
Yet, truck-mounted cranes offer the flexibility to operate in spaces where parking a cargo truck is feasible.
STANDARD EQUIPMENT
Load Indicator
Hydraulic Load Meter
Alarm for Overwinding
Auto Stop for Overwinding
Auto Hook Stowing
Level
Auto Mechanical Brake for Slewing
OPTIONAL EQUIPMENT
Radio Remote Control (Only model)
Overload Protection (Only model)
Rear Outrigger
Hydraulic Horizontal Outrigger
Wide Outrigger
SPECIFICATIONS
| MODEL | TBC05-3 | TBC05-4 | TBC05-5 |
|---|---|---|---|
| Max. Lifting Capacity | 5,050kg at 2.5m | 5,050kg at 2.5m | 5,050kg at 2.5m |
| Max. Hook Height | 10.2m | 12.7m | 15.1m |
| Max. Working Radius | 8.13m | 10.63m | 13.14m |
| Max. Boom Length | 8.37m | 10.87m | 13.38m |
| Min. Boom Length | 3.54m | 3.60m | 3.78m |
| Boom Sections | 3 | 4 | 5 |
| Boom Raising Angle | Min. 1° to Max. 78° | Min. 1° to Max. 78° | Min. 1° to Max. 78° |
| Slewing Angle | 360° Continuous | 360° Continuous | 360° Continuous |
