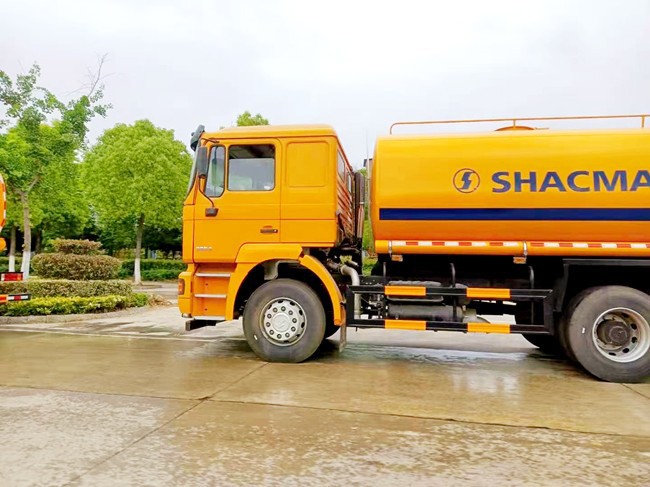

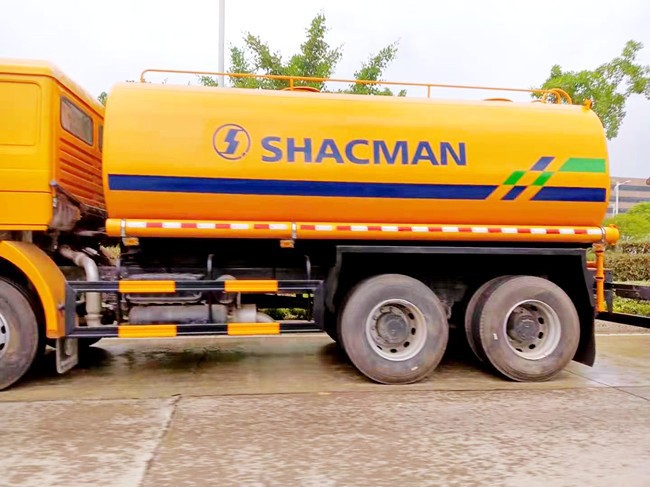

The SHACMAN Fuel Tanker Truck can carry about 20, 000 liters of liquid fuel. The tanker is separated into 4 or 5 compartments, so it can transport both gasoline and diesel at the same time.
The tanker body is made of high-quality carbon steel, and the material of aluminum alloy for the tanker body is optional.
 |
 |
 |
Description
|
Dimension
|
10000X2550X3450MM
|
Drive Type
|
6×4
|
|
Chassis No.
|
SX1269MB4WZ1
|
Wheelbase
|
3775+1400
|
|
Gross Weight
|
26000kgs
|
Curb Weight
|
12870kgs
|
|
Engine Model
|
WD610.336E22
|
Net Power
|
336HP
|
|
Fuel Type
|
Diesel
|
Emission Standard
|
Euro 3
|
|
Transmission system
|
10JSD180
|
Brake System
|
Air brake
|
|
Tire Quantity
|
10pcs + spare wheel
|
Tire Specification
|
12.00R20 18PR
|
|
Cabin
|
F3000 model, driver’s cabin of 3 persons (including driver), ABS, electric glass, air conditioner, adjustable headlights, USB, etc.
|
||
Specifications
|
Tank Body
|
Capacity
|
20,000 liter
|
|
Material
|
Carbon steel and aluminum alloy is optional
|
|
|
Filling Medium
|
Gasoline or Diesel
|
|
|
Equipment
|
a. It can be equipped with a tax-controlled computer refueling machine (mass flow), equipped with a 10-15 meters automatic retractable reel, with a refueling gun
b. Bottle loading system. c. There is a container indicator that can indicate the tank volume when filling or discharging.
d. In order to ensure the pressure in the tank is basically the same as the atmospheric pressure during the working process. A breathing valve is installed on the large cover of the tank. When the internal pressure of the tank is higher than 8KPa, the value plate on the breathing valve is open, and when the internal pressure is lower than 3PKa, the valve under the breathing valve is open. |
|
|
Coating
|
a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has an anti-corrosion effect but also has anti-seepage and plugging effects.
b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customized if necessary |
|
