Capacity: 14CBM
Driving type: 4×2, LHD
Engine: 210hp Euro 3
Size: 8150×2500×3230(mm)
G.V.W: 18000kg
Curb Weight: 11030kg
Wheelbase: 4700mm
 |
 |
 |
 |
Description

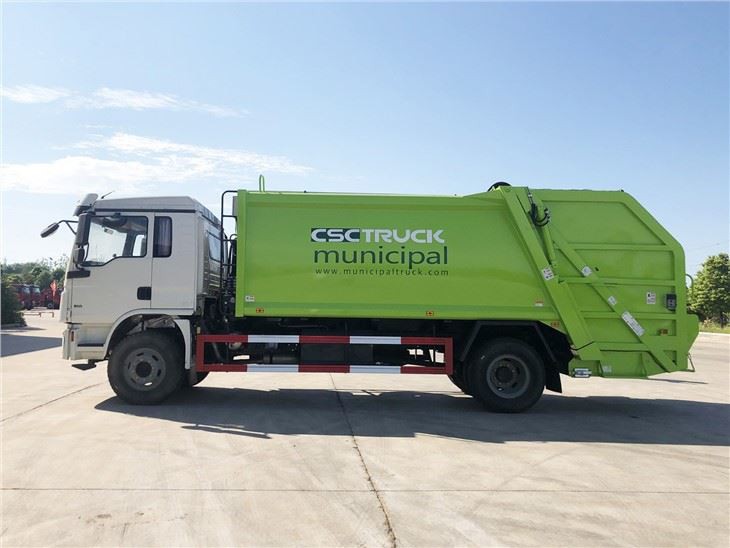

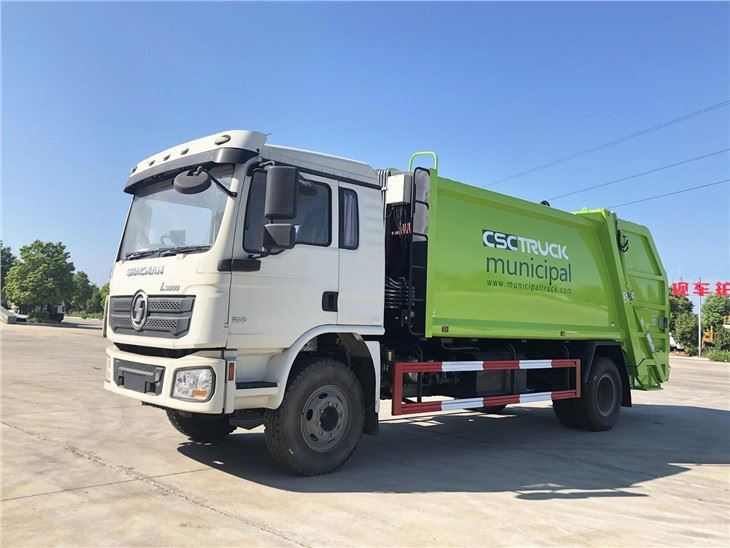

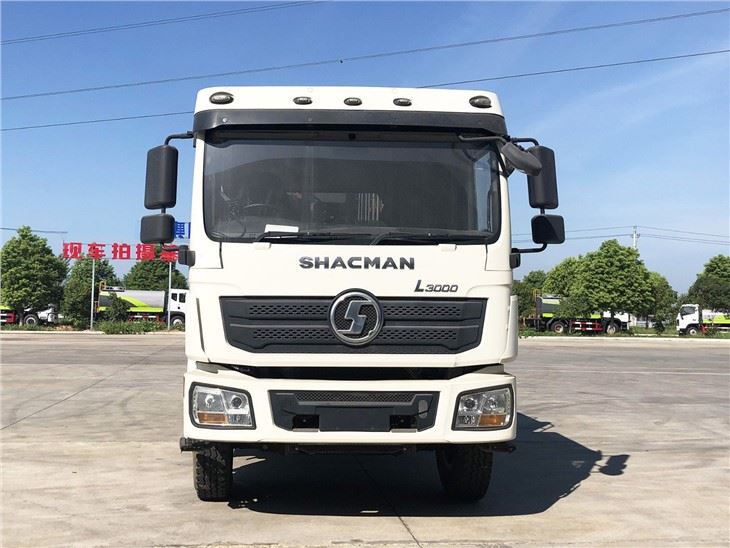

The SHACMAN L3000 Garbage Compactor Truck is specially designed to compress or compact trash into a more manageable size. The compactor garbage truck body is mounted based on the SHACMAN L3000 truck chassis, and the container floor is fabricated from NM450 (similar to HARDOX) wear-resistant steel. The hydraulic system of the cylinder, hydraulic control valve, and hydraulic pipe adopts top brand, reliable, and long service life. Installed back pressure valve, two-way compression, the compression ratio can reach 0.6~0.8t/m3.
CSCTRUCK VS Other Suppliers

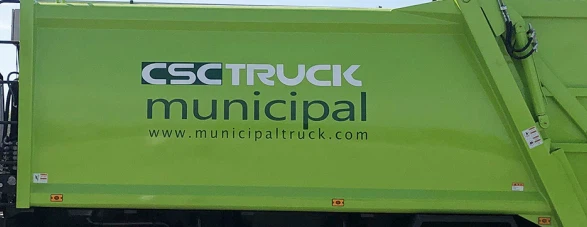

Garbage Container
CSCTRUCK: One-piece construction welded seamlessly. The container floor is fabricated from NM450 (similar to HARDOX) wear-resistant steel.
Other Suppliers: Common steel plate

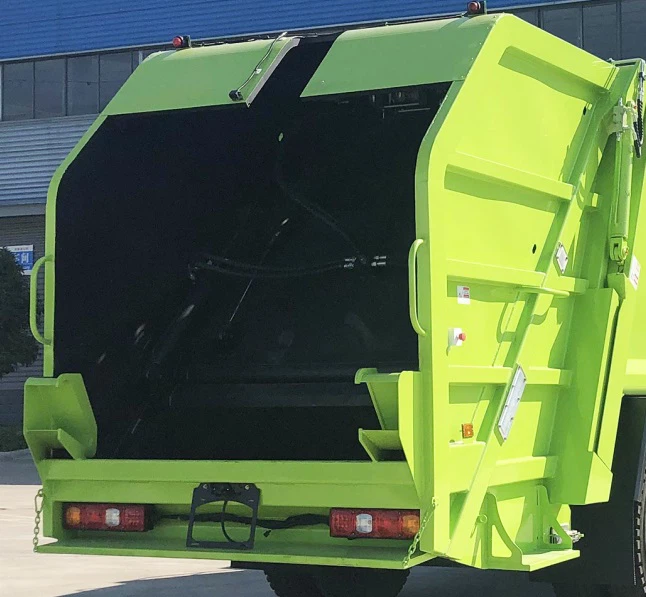

Hopper
CSCTRUCK: Large hopper, high-strength, abrasion-resistant steel, anti-corrosion.
Other Suppliers: Common steel plate
Hopper Cylinder
CSCTRUCK: Reinforced external cylinder, maintenance-free. High precision, sealing rings are imported parts, with no oil leakage, pressure instability, and other problems. Blasting and anti-dust painting.
Other Suppliers: Common cylinder, oil leakage, pressure instability, simple painting.
Hydraulic Control Valve
CSCTRUCK: Top brand hydraulic valve, high precision, and stable performance.
Other Suppliers: Unknown brand, short working time.
Hydraulic Pipe
CSCTRUCK: Galvanized steel hydraulic pipe, reliable and long service life.
Other Suppliers: Inexperienced steel pipe
Compression Ratio
CSCTRUCK: Installed back pressure valve, two-way compression, the compression ratio can reach 0.6~0.8t/m3.
Other Suppliers: One-way compression, not up to standard compression ratio.
Control System
CSCTRUCK: CAN Bus smart control system, water dust resistant control box equipped.
Other Suppliers: PLC control system, work slow, steel control box, rusty.
Electrical Control Box
CSCTRUCK: Top brand, reliable, waterproof.
Other Suppliers: One button control, unknown brand, not responsive or waterproof.
Safety Devices
CSCTRUCK: Standard Balance Valve, ensure the stability and safety of oil cylinder operation.
Other Suppliers: No balance valve.
