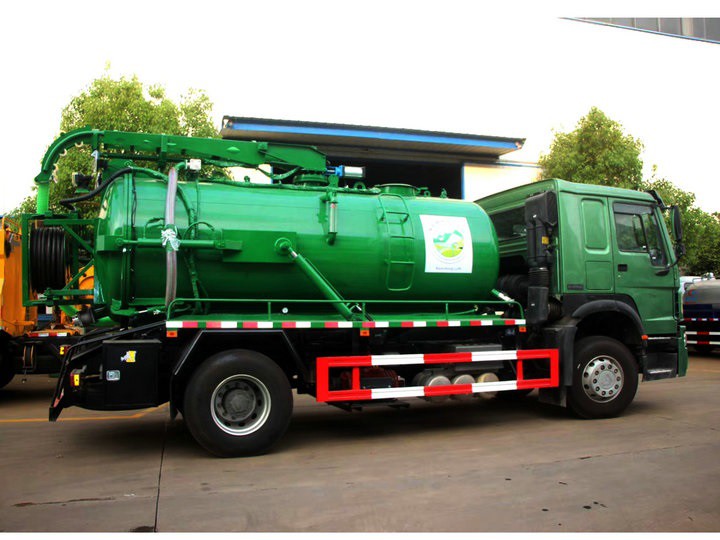

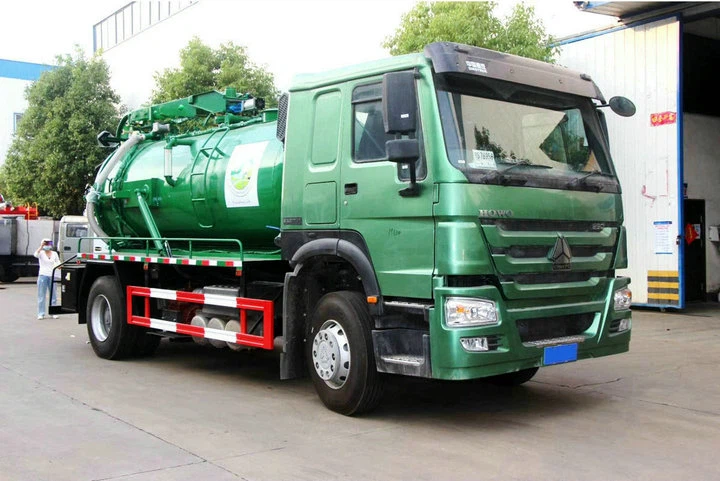

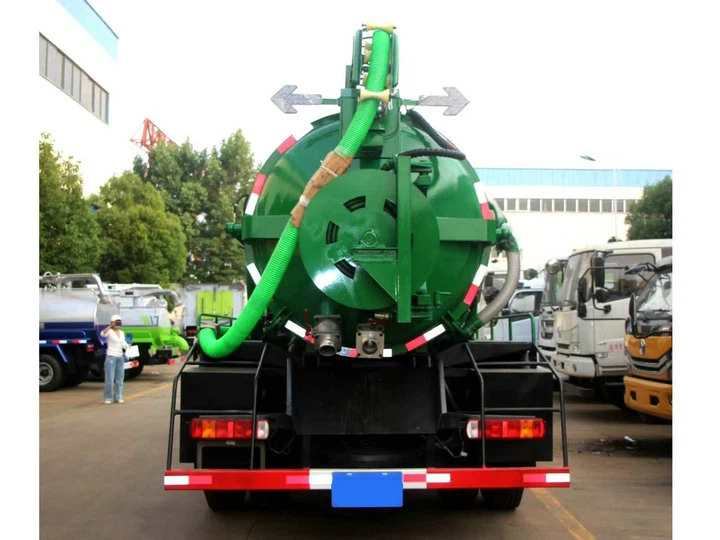

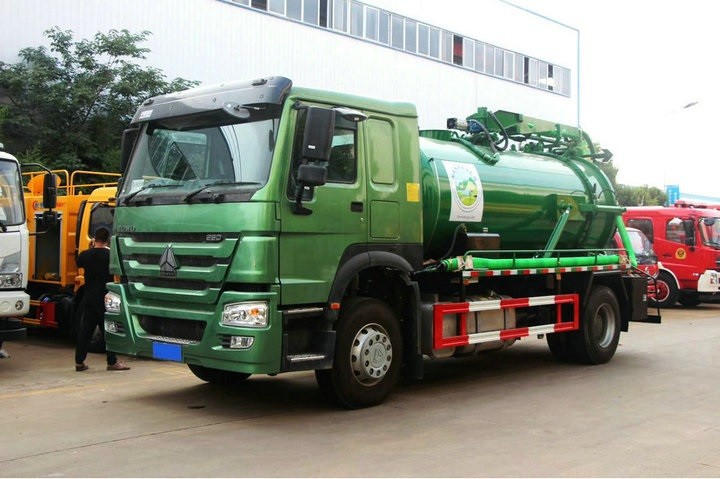

SINOTRUK Combined Jetting Vacuum Truck

SINOTRUK HOWO 4×2 Chassis Truck
SINOTRUK 290HP Diesel Engine
10F+2R Manual Transmission
12,000L Capacity Tank
Weilong/JUROP/MORO/BP Vacuum Pump

Description

DESCRIPTION

The CSC Combined Vacuum Unit Tanker is a vehicle that combines the functions of a jetting truck and sewer tanker. It can integrate washing, dredging, sewage suction, etc. It can effectively reduce the number of vehicles and personnel and the number of round trips, which can greatly improve work efficiency and save time and cost; mainly used for the suction, transportation, and unloading of sewage, sludge, sand, and gravel, and large blocks of various underground sewage pipes, rainwater wells and manholes in the city. Combined Vacuum Unit Tankers can also be used for sewage and industrial waste of large factories and mines. The suction and transportation of oil and wastewater and the dredging and dredging of small rivers.

FEATURES

  • The truck is safe and reliable, effectively reducing the labor intensity of the operators.
  • Hose Reel: The jetting hose is retracted and released hydraulically, which can repeatedly dredge and clean the sewer to improve the cleaning effect.
  • The truck is equipped with a low water level protection system: When the water level in the tank is low, the tank alarm will automatically alarm and reduce the engine speed to prevent the high-pressure pump from working out of the water and protect the jetting pump.
  • Fashion design: The appearance of the truck is stylish, and the design of humanization and visual details reflects unique ingenuity. It has high-cost performance and a perfect after-sales service guarantee system.
See also  12CBM 6x4 Combination Sewer Cleaner



product-720-481

product-720-540

product-720-540

Chassis
Size 8,130×2,500×3,320mm
GVW/Curb Weight 23,000kg/8,575kg
Wheelbase 4,600mm
Front/Rear Axle 7T/16T
Tire 295/80R22.5 6+1 tires
Engine
Type Diesel
Make/Model SINOTRUK/WD615.87/290hp/Euro 2
Transmission
Make/Model SINOTRUK/HW13710
Gears 10F+2R
Operation Manual
Cabin
Driving SINOTRUK HOWO 4×2 Day Cab, Left/Right-hand Drive
Type Steel construction, Single Row, Flat
Passenger No. 3
Body System
Capacity 12,000L
Shape Cylindrical
Material Q235B Carbon Steel
Thickness Shell Cover 8mm, Tank Body 6mm
Vacuum Pump
Type Water Cooling or Air Cooling
Brand Weilong, JUROP, MORO, BP
Flow Rate 6,000~35,000LPM
Ultimate Pressure -97000Pa
Suction Hose Length 8 meters + optional 4 meters
High-Pressure Jetting Pump
Drive-By PTO
Working Pressure 16-24Mpa
Water Flow Rate 75~275LPM
Reel Hose 80 meters + optional 40 meters
Water Tank Front or side installed
Basic Equipment

Vacuum pump, ball valve, suction pipe, pressure

meter, inspect windows, cleaning systems, hoist base, oil-water separators, overflow valves, etc.

Optional Equipment Tanker material: stainless steel.
Vacuum pump: Italy or Spain vacuum pumps.
Anti-rust coating inside tankAnti-flow devices
