Model No.: CSCALFT018.
Max. working height: 18M.
Water 2800L, Type A Foam 500L Tank.
Overall Dimensions(LxWxH): 8,430×2,500×3,620mm.
Chassis Brand: Sinotruk Sitrak.
Drive Type: 4×2.
Full Load Weight: 18,000kg.
Max. Speed: 90km/h.
Engine Power: 225kW.
Fire Pump Rated Flow Rate: 60L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 30L/s.
Shoot Range: 55m.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

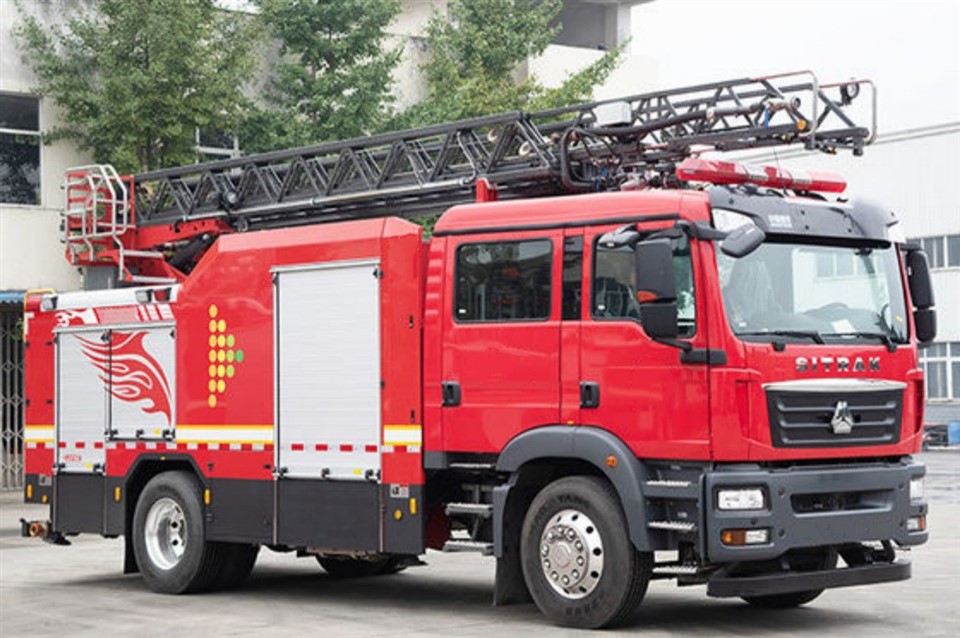

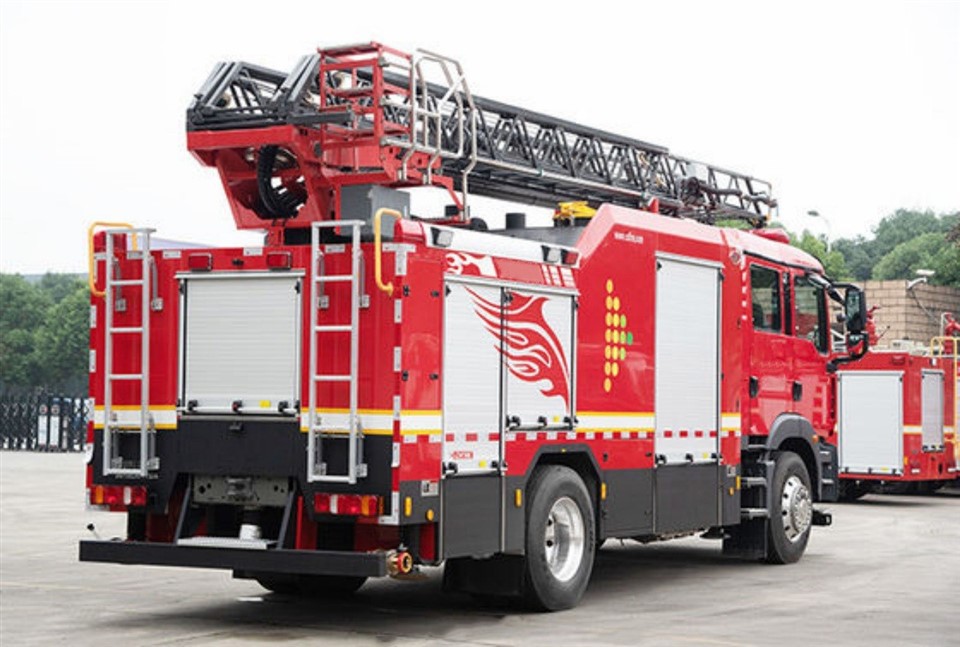

The SITRAK 18M aerial ladder fire truck, manufactured by CSCTRUCK, is a compact and highly capable firefighting vehicle designed for versatile urban and industrial applications. Built on a robust Sinotruk Sitrak chassis with a 4×2 drive configuration, this fire truck ensures reliability and maneuverability even in challenging conditions. It boasts a maximum driving speed of 90 km/h and is powered by a 225 kW engine, providing the performance needed for rapid response.
With an 18,000 kg full loading weight, the vehicle accommodates a range of firefighting equipment while maintaining stability and efficiency. Its aerial ladder reaches a maximum working height of 18 meters, making it ideal for mid-rise building operations and complex rescue missions.
The SITRAK fire truck features a 2,800-liter water tank and a 500-liter Type A foam tank, constructed from durable PP composite material, ensuring lightweight durability and resistance to corrosion. Its onboard fire pump delivers an impressive flow rate of 60 L/s at 10 bar, complemented by a suction height of 7 meters for versatile water access. Additionally, the fire monitor provides a flow rate of 30 L/s and a shooting range of up to 55 meters, enabling effective firefighting from a safe distance.
The vehicle’s advanced design combines practicality and efficiency, making it an excellent choice for fire departments requiring reliable equipment for diverse scenarios. Its compact size, high-performance engine, and effective water delivery system make the SITRAK 18M aerial ladder fire truck a versatile asset in emergency response operations.
FEATURES
Sitrak 18m Aerial Ladder Fire Truck with CAFS Extinguishing System
| No. | Main Items | Technical Parameters |
| 1.1 | Model No. | CSCALFT018 |
| 1.2 | Overall Dimensions(LxWxH) |
8,430X2,500X3,620mm |
| 1.3 | Full Load Weight | 18,000kgs |
| 1.4 | Number of the Crew | 2+4 (include driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 2,800L Water & 500L Type A Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 60L/s@10bar |
| 1.8 | Compressed Air Foam Flow | 100L/s |
| 1.9 | Max. working height | 18 meters |
2. Superstructure
2.1 Original Cabin
Structure: Double-row cabin with 4 doors.
Seats: 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats.
2.2 Standardized Sub-frame
Material: High-strength rectangular tube made of special steel.
Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.
2.3 Aluminum Compartment
Material: High-strength aluminum alloy profiles (Never Rust).
Structure: Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear.
2.4 Aluminum Roller Shutter
Material: Aluminum alloy profiles with anodized surface.
Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, 2-point fixed seat, LED light, and sensors.
2.5 Foot Pedals
Material: High-quality aluminum alloy.
Structure: 50cm width, bearing more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment.
3. Fire Extinguishing System
| No. | Main Items | Technical Parameters |
| 3.1 | Fire Pump | |
| 3.1.1 | Brand | Optional |
| 3.1.2 | Model | Optional |
| 3.1.3 | Rated Flow Rate | 60L/s@10bar |
| 3.1.4 | Vacuum Pump | Electric vacuum pump |
| 3.1.5 | Priming Manner | Automatic |
| 3.1.6 | Suction Height | 7m |
| 3.1.7 | Priming Time | ≤80s |
| 3.1.8 | Location | Rear-mounted |
| 3.2 | Fire Monitor | |
| 3.2.1 | Brand | Optional |
| 3.2.2 | Model | Optional |
| 3.2.2 | Flow Rate | 30L/s |
| 3.2.3 | Shoot Range | 55m |
| 3.2.4 | Location | On the top of the boom. |
| 3.2.5 | Control Manner | Manual |
| 3.2.6 | Horizontal Rotation Angle | 0°~360° |
| 3.2.7 | Pitch Rotation Angle | -15°~60° |
| 3.3 | Liquid Tank | |
| 3.3.1 | Capacity | Water 2,800L, Type A Foam 500L. |
| 3.3.2 | Material | PP composite material and Never Rust. |
| 3.3.3 | Structure | 2 Tank Manholes; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves. |
| 3.4 | Control Panel | |
| 3.4.1 | Structure | Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level. |
| 3.4.2 | Location | Rear pump room. |
