Commercial Chassis make DONGFENG Classic
Reliable Dongfeng Cummins Make Engine
Turbocharged and intercooled diesel engine
Forward tilt , Sleeper cab , 3 seats , A/C
Air brake, exhausted brake, ABS optional
Single plate, air assisted hydraulic control
 |
 |
 |
 |
Description
Truck Mounted with Telescopic Crane
Model Number: CSC5250JSQEQ
1. OVERVIEW
The 10 Ton truck mounted crane is designed to be installed on a GVW 25-ton Dongfeng CLASSIC commercial vehicle. The operator could control this truck mounted crane with high precision proportional levers in every position and doing so, can supervise the loading and unloading operations. That means a great time saving a higher safety.
2. FEATURES
● Chassis
– Commercial Chassis make DONGFENG Classic
– Reliable Dongfeng Cummins Make Engine
– Turbocharged and intercooled diesel engine
– Forward tilt , Sleeper cab , 3 seats , A/C
– Air brake, exhausted brake, ABS optional
– Single plate, air assisted hydraulic control
– Power assistance steering, left hand operated
– Dongfeng transmission 8 speed forward 1 speed reverse manual control
– Mechanism leaf spring suspension system
– Front multi leaf spring double acting shock absorbers, front stabilizer bar
– Rear leaf multi leaf main spring helper spring
– Full air brake system, front drum brake, rear parking brake, exhaust brake
● Crane
– XCMG 4 Section Telescopic boom Crane
– High tensile strength extension booms
– Optimized boom length and outreach
– Best lift moment in the industry
– Wide stabilizer supports safe lifting
– 2 working lights ensure night operation
– Over-load protection system
– Best reliability, performance, and safety in the industry
– Optimized for installation on a rear tandem axle truck
– Optional for Safety Package available
3. SPECIFICATIONS
|
Measurement |
Overall Size |
10000×2500×3900 mm |
|
Wheelbase |
4350+1300 mm |
|
|
Cab front to front axle |
1,450 mm |
|
|
Rear axle to truck end |
3,050 mm |
|
|
G.V.W |
25,000 kg |
|
|
Truck Weight |
10,800 kg |
|
|
Loading |
14,850 kg |
|
|
Truck Chassis |
Chassis Model |
EQ1250 |
|
Drive Mode |
6×4 |
|
|
Cab Tilt |
45° |
|
|
Clutch |
380 mm |
|
|
Front Axle Rating |
6,500 kg |
|
|
Rear Axle Rating |
11,500 kg |
|
|
Rear Axle Ratio |
4.44 |
|
|
Maximum Speed |
90 km/h |
|
|
Gradeability |
34.59 % |
|
|
Subframe |
100mm |
|
|
Tires |
11.00R20 10+1 spare |
|
|
Powertrain |
Engine Model |
B210 33 |
|
Rated Horsepower @ Speed |
155kw (210 hp) @ 2400 RPM |
|
|
Torque @ Speed |
700 N.m @ 1500RPM |
|
|
Displacement |
5.9 L |
|
|
Emission Standard |
Euro 3 |
|
|
Engine Type |
Diesel, Turbocharged, Turbocharged intercooled, EGR |
|
|
Truck Mounted Crane |
Crane Model |
SQS10SK3Q |
|
Max. Lifting Moment |
25 T.M |
|
|
Max. Lifting Load |
10000kg/2.5m |
|
|
Max. Outreach |
12 m |
|
|
Slewing Angle |
360° |
|
|
Outrigger Spread |
5580mm |
|
|
Rated Working Pressure |
26MPa |
|
|
Pump Capacity |
63l/min |
|
|
Crane Weight |
3765kg |
|
|
Hydraulic System |
Controls |
Electric / Hydraulic |
|
Flow Rate |
55 LPM |
|
|
Operating Pressure |
34 MPa |
|
|
Reservoir |
160 L |
|
|
Cargo Box |
Box Size |
6800×2300×600 mm |
|
Side Thickness |
2 mm Corrugated steel |
|
|
Floor Thickness |
3 mm diamond plate |

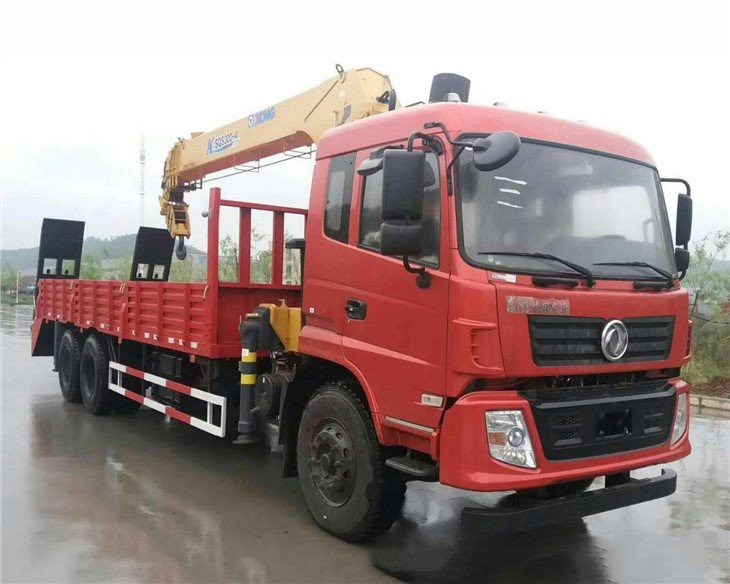

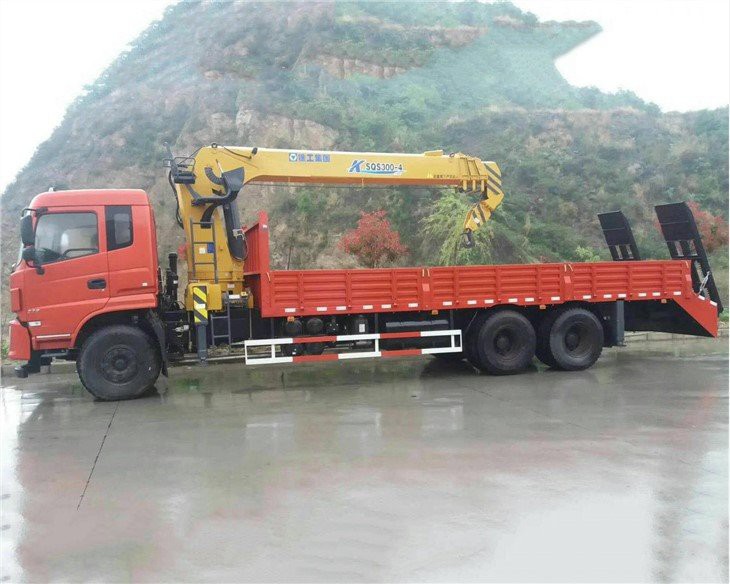

4. REFERENCE PHOTOS
