Truck With 5Ton Hoist Crane

Chassis Make Dongfeng Model KINGRUN
Truck with Crane CSCTRUCK Make
GVW.18000kg inclusive of payload
Right Hand Drive 4×2 ,4 wheels, RWD Chassis
Wheelbase (Distance between axles) 4700mm

Truck with 5Ton Hoist Crane

BRIEF

·       Chassis Make Dongfeng Model KINGRUN

·       Truck with Crane CSCTRUCK Make

·       GVW.18000kg inclusive of payload

·       Right Hand Drive 4×2 ,4 wheels, RWD Chassis

·       Wheelbase (Distance between axles) 4700mm

·       Forward Control steel Sleeper Cab

·       CUMMINS 210hp Euro 3 Diesel Engine

·       Power assistance Steering, Collapsible type, telescopic and tilt steering column with locking device

·       Transmission make Dongfeng configuration 6 speed forward, 1 speed reverse

·       Brakes air over hydraulic , dual circuits with parking, emergency brake.

·       Tires Radial all weather tread with 01 nos spare wheel same specs of vehicles installed tires along  with rim.

·       Haulage / Load Carrier Bay, 4000mm × 2300mm × 800mm

·       High Tensile Steel Box, floor thickness 8mm checked steel plate, side board 6mm corrugated steel.

·       Workshop repair manual, maintenance manual offered with truck.

·       Safety belts for cabin crew,

·       Front protection guard for light radiator

·       Spare wheel with holder

·       Front hook shock less

·       Font hook 3500kg

·       Trailer braking and elect plug sockets

·       Inside outside rear view mirror

·       Fire extinguisher provided inside the drivers cabin

·       Fully powered synchronized straight telescopic boom

·       5-Ton Telescopic Typed 4-stage Crane

·       Crane Make XCGM, Model SQ5SK3Q

·       04 nos of sections 01 fixed boom, 03 telecopic

·       Retracted length 3.62m

·       Extended Length 10.85m

·       Max. Lifting Height 12.8m

·       Max. Working Radius 11 m

·       Elevation by double -acting hydraulic cylinders

·       Hydraulic Motor Driven Winch

·       Steel Wire rope

·       Slewing hydraulic motor driven worm gear speed reduction contiguous 360° rotation

·       Automatic swing lock.

·       Crane Hook Block with hook drive and sheaves

·       Outrigger Hydraulically extendable sliders and jacks integral with crane.

·       Hydraulic System with oil cooler, filer and oil sump.

·       Crane Controls, operated from both side of the truck without cab support.

·       Wireless Remote control optional.

·       Safety Device as following

·       Load meter, over load alert with load indicator

·       PTO indicator lamp

·       Hook Safety Latch

·       Hydraulic Safety Valves, check and holding valves

·       Winch Over-winding alarm

·       Level Gauge

·       Anti-two-block with alarm

·       Audible Warning

·       External Warning Lamp for option

DETAILS

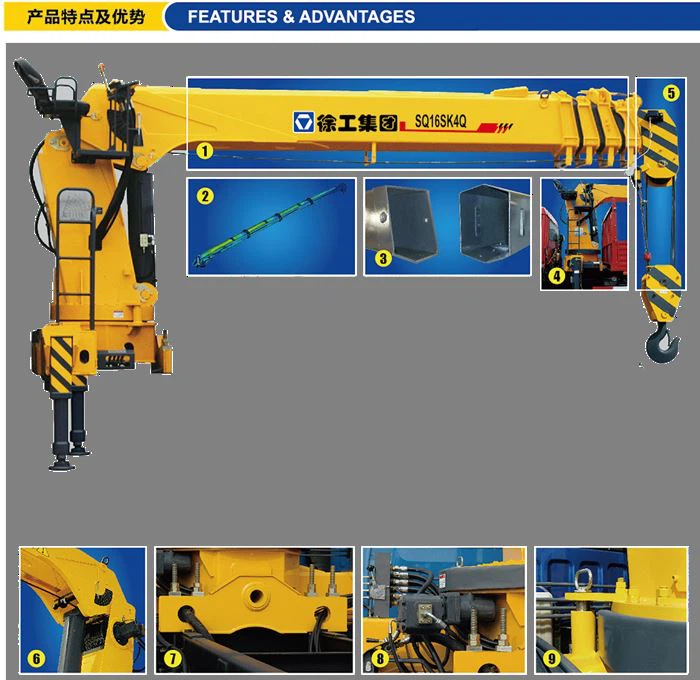

CRANE MECHANISM

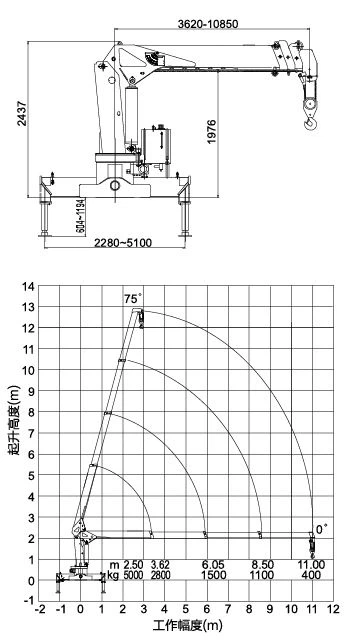

SPECIFICATIONS

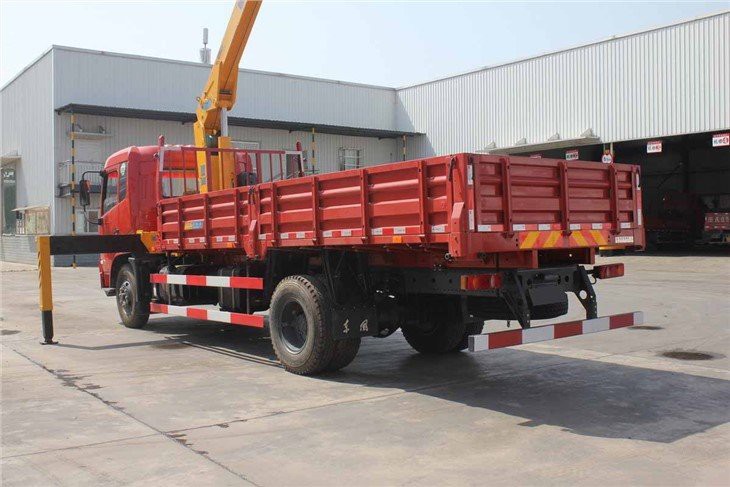

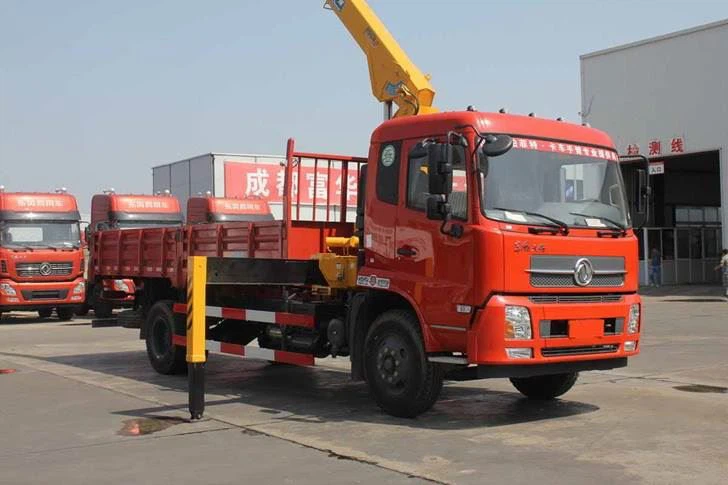

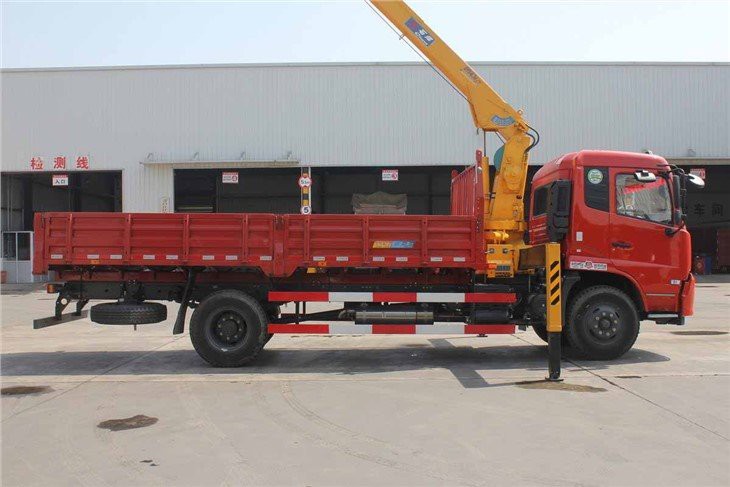

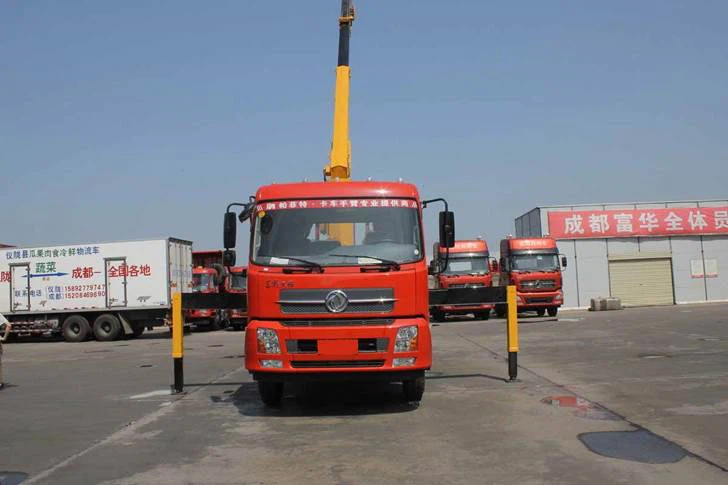

REFERENCE PHOTOS
