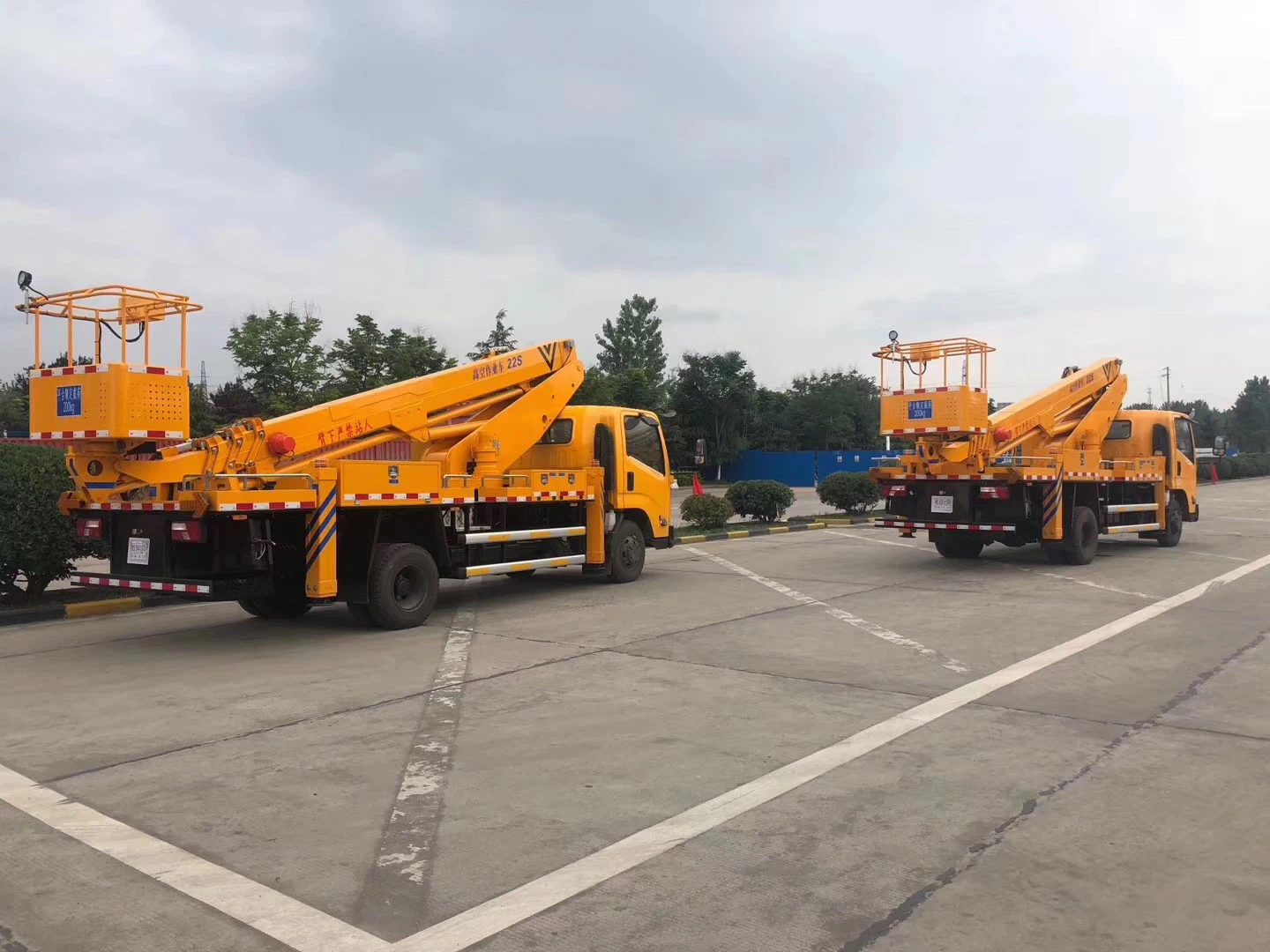

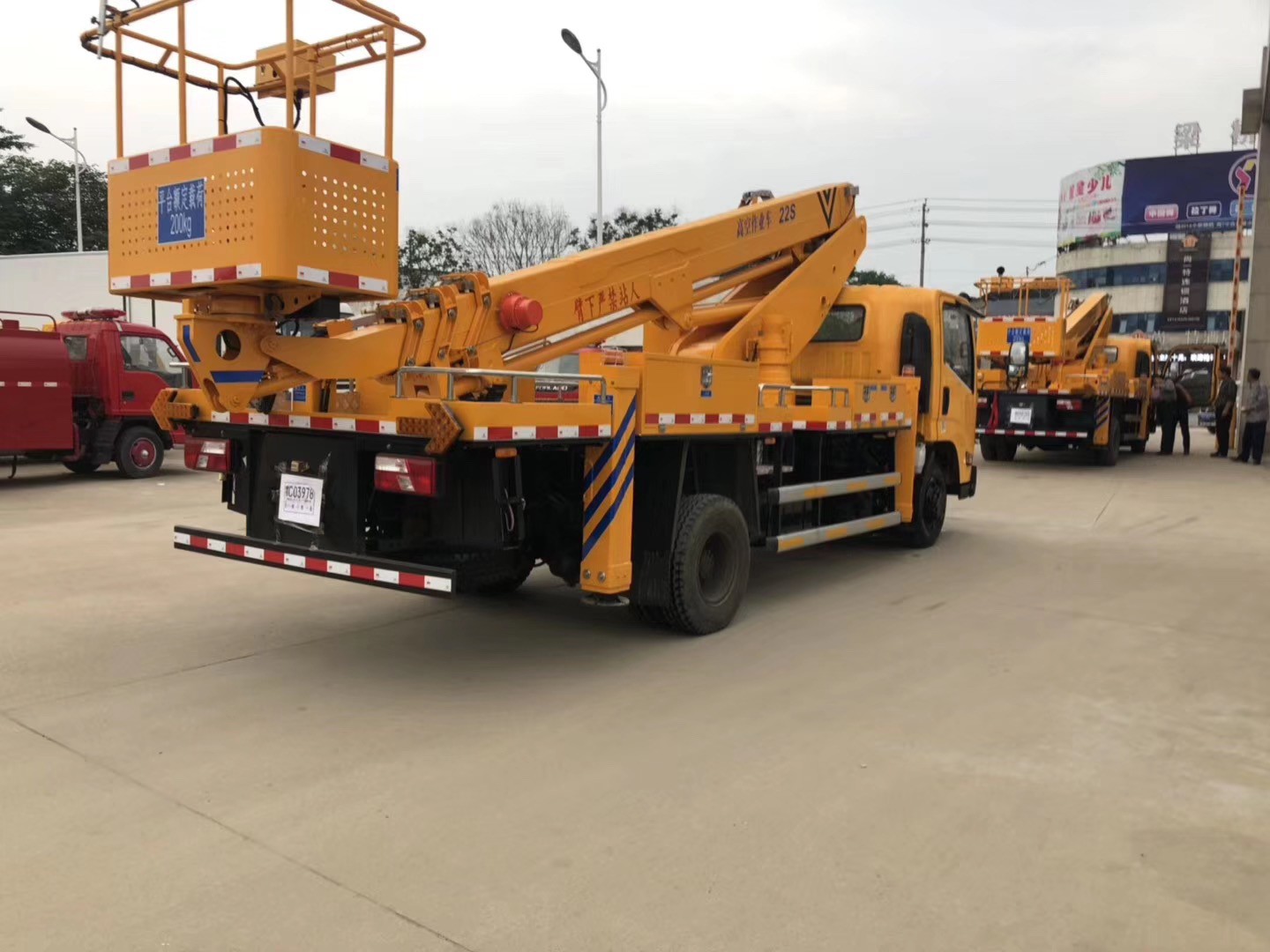

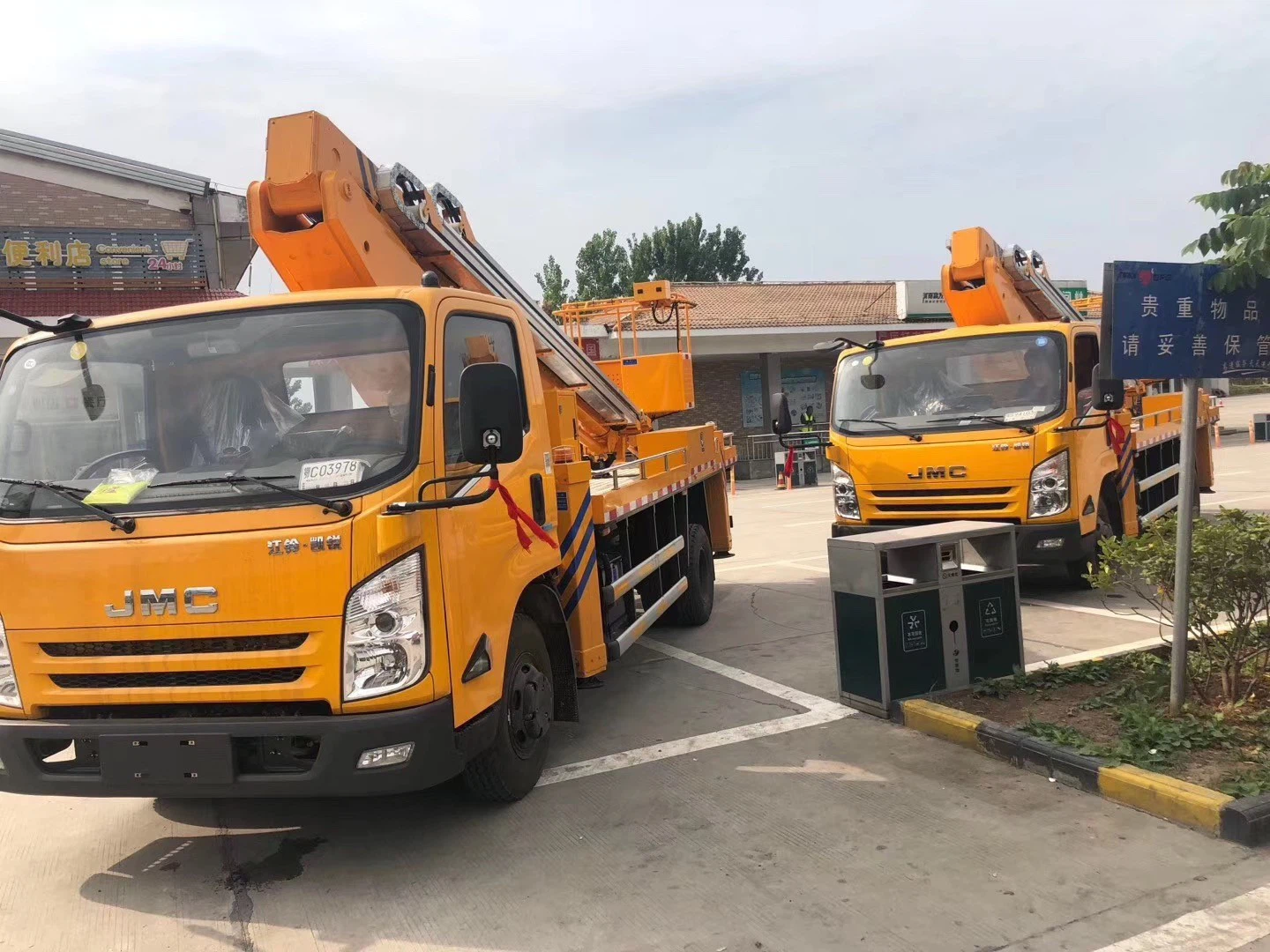

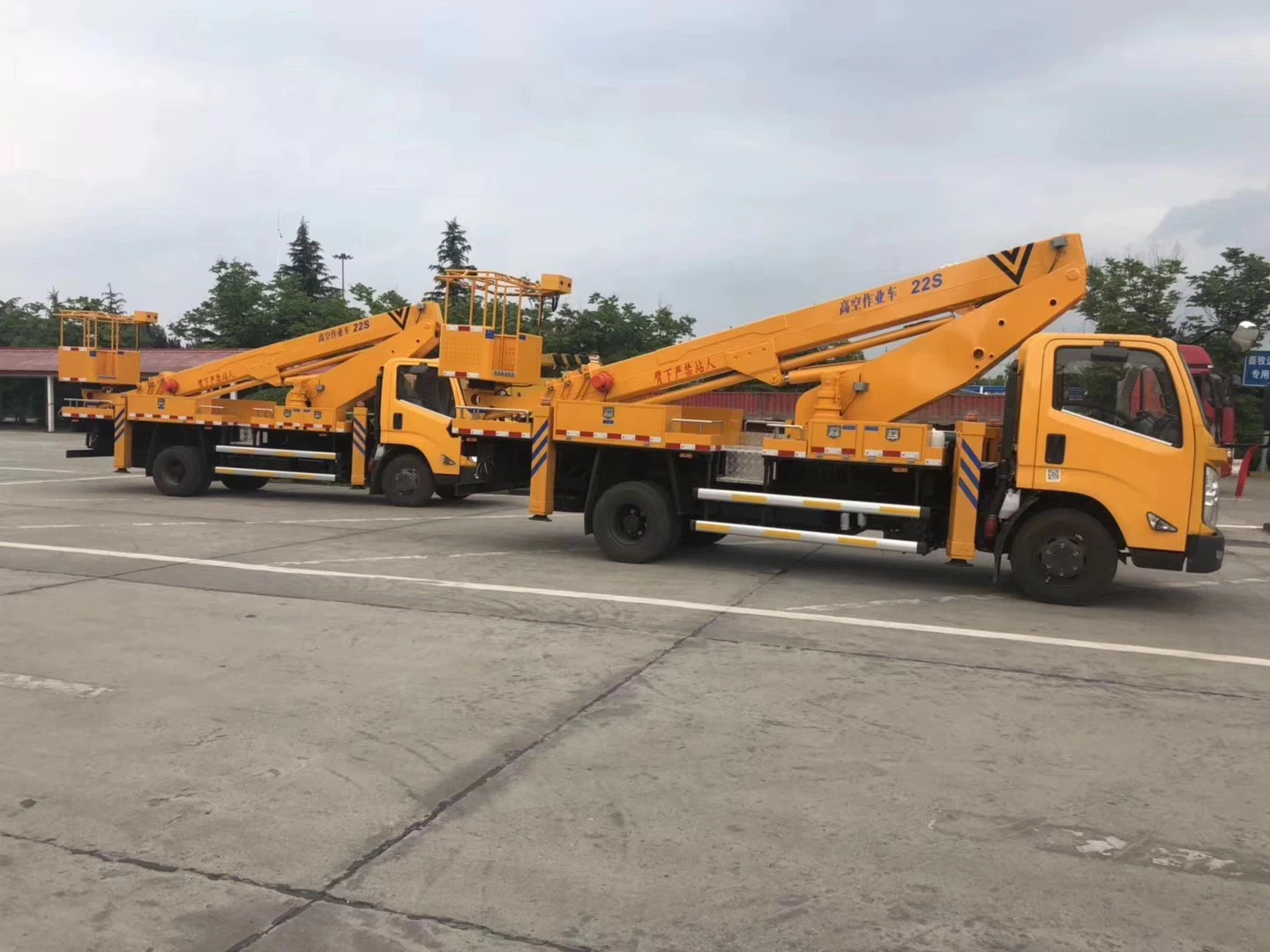

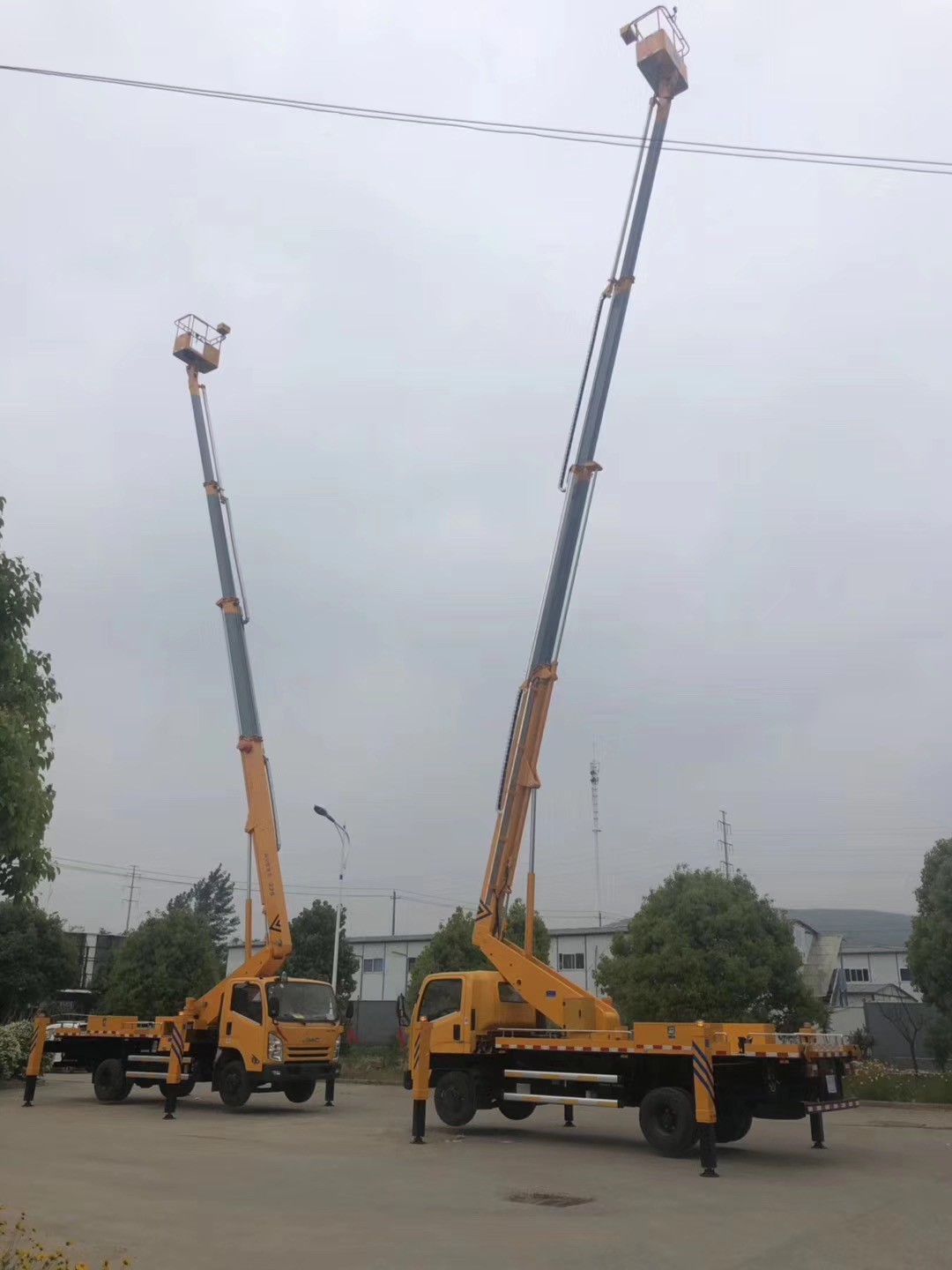

JMC 4×2 Day Cab Truck
160hp Euro 3 Engine

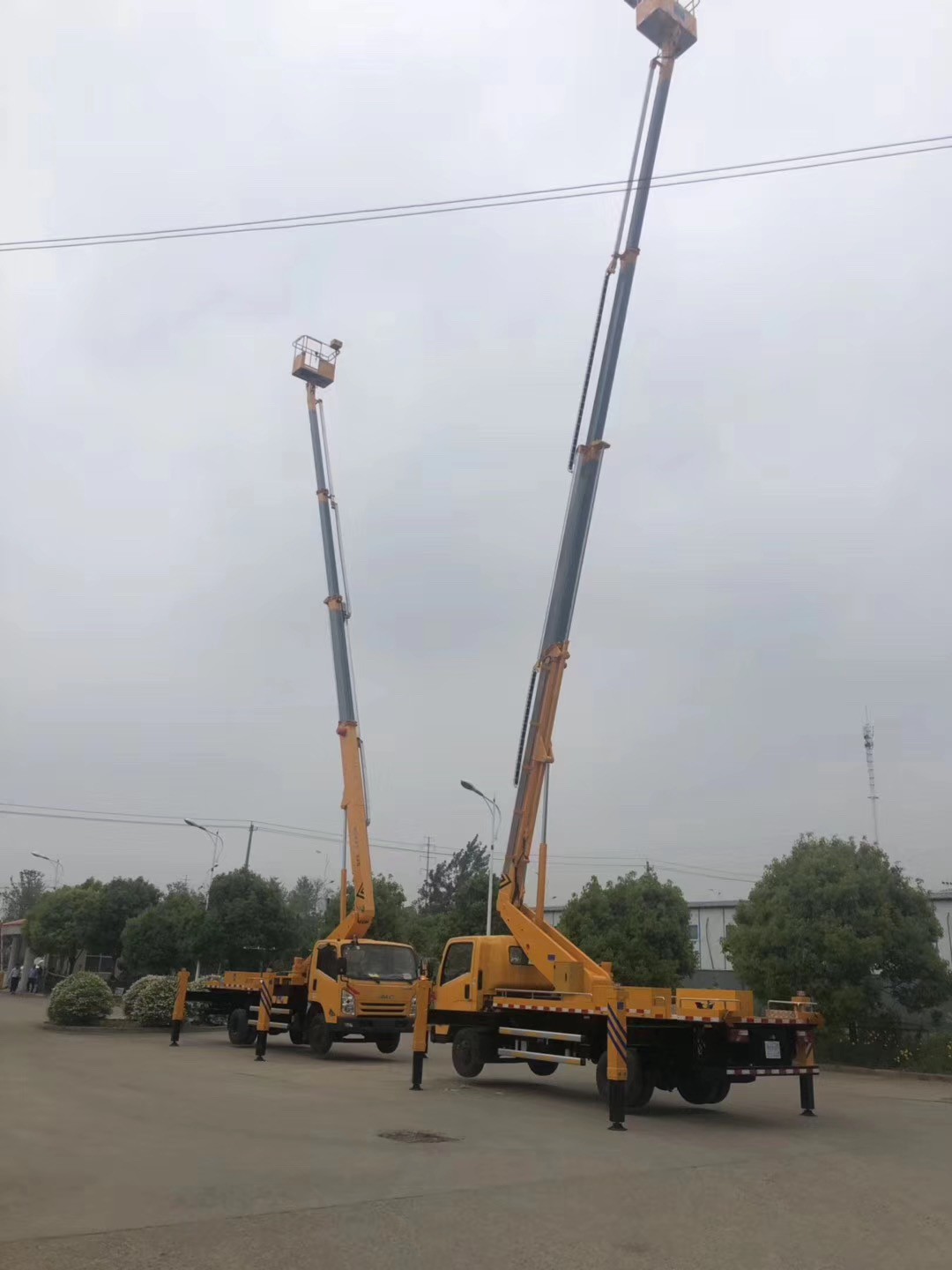

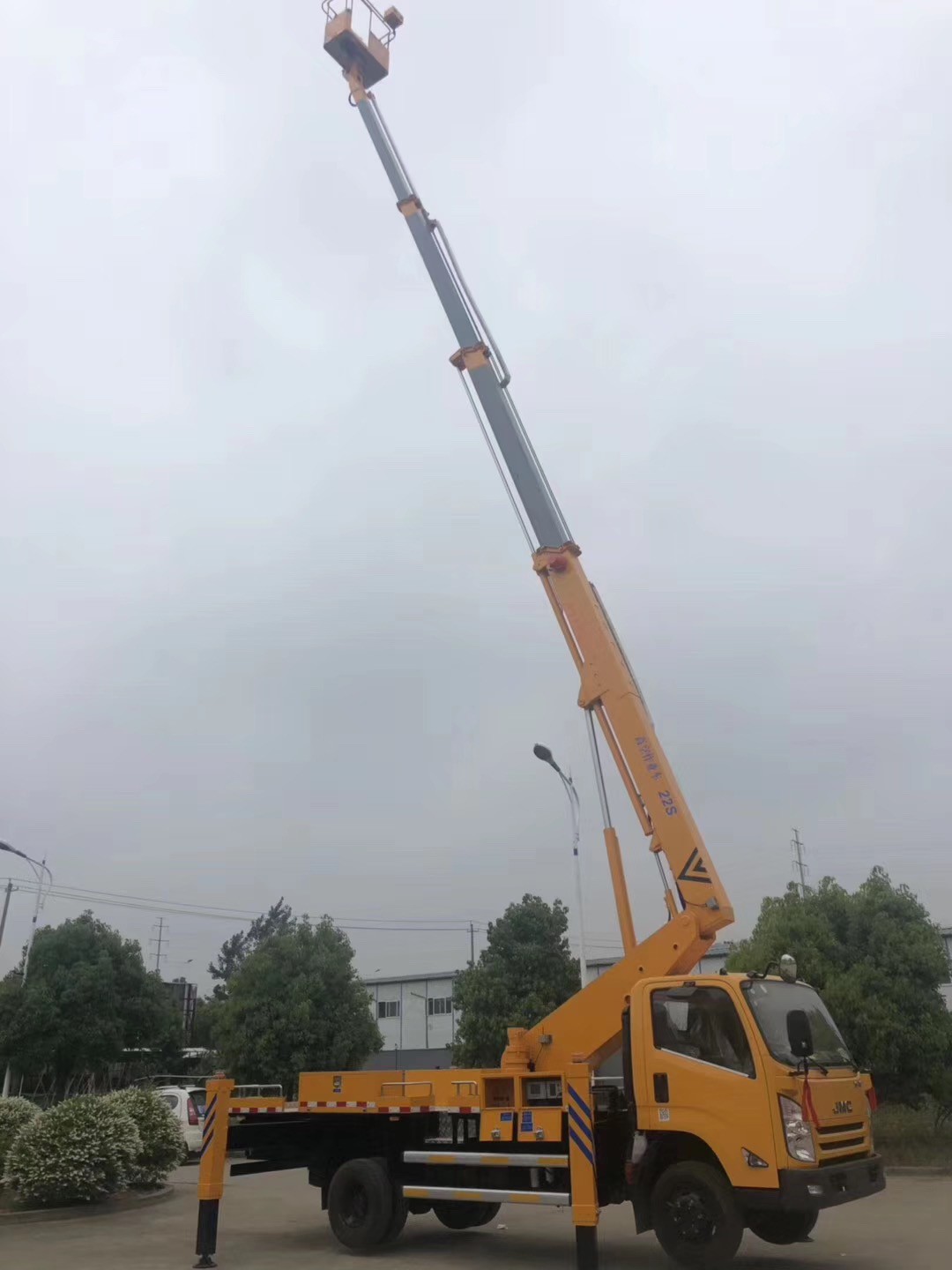

Max. Height 24 m
Max Outreach 14m

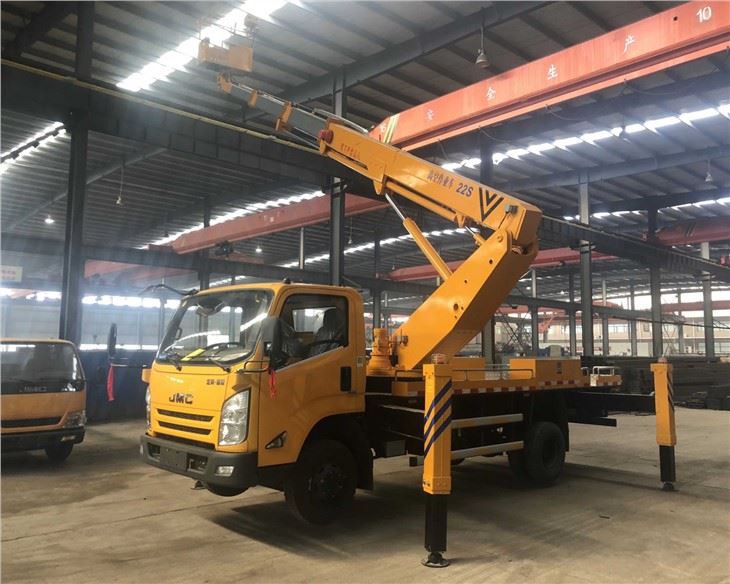

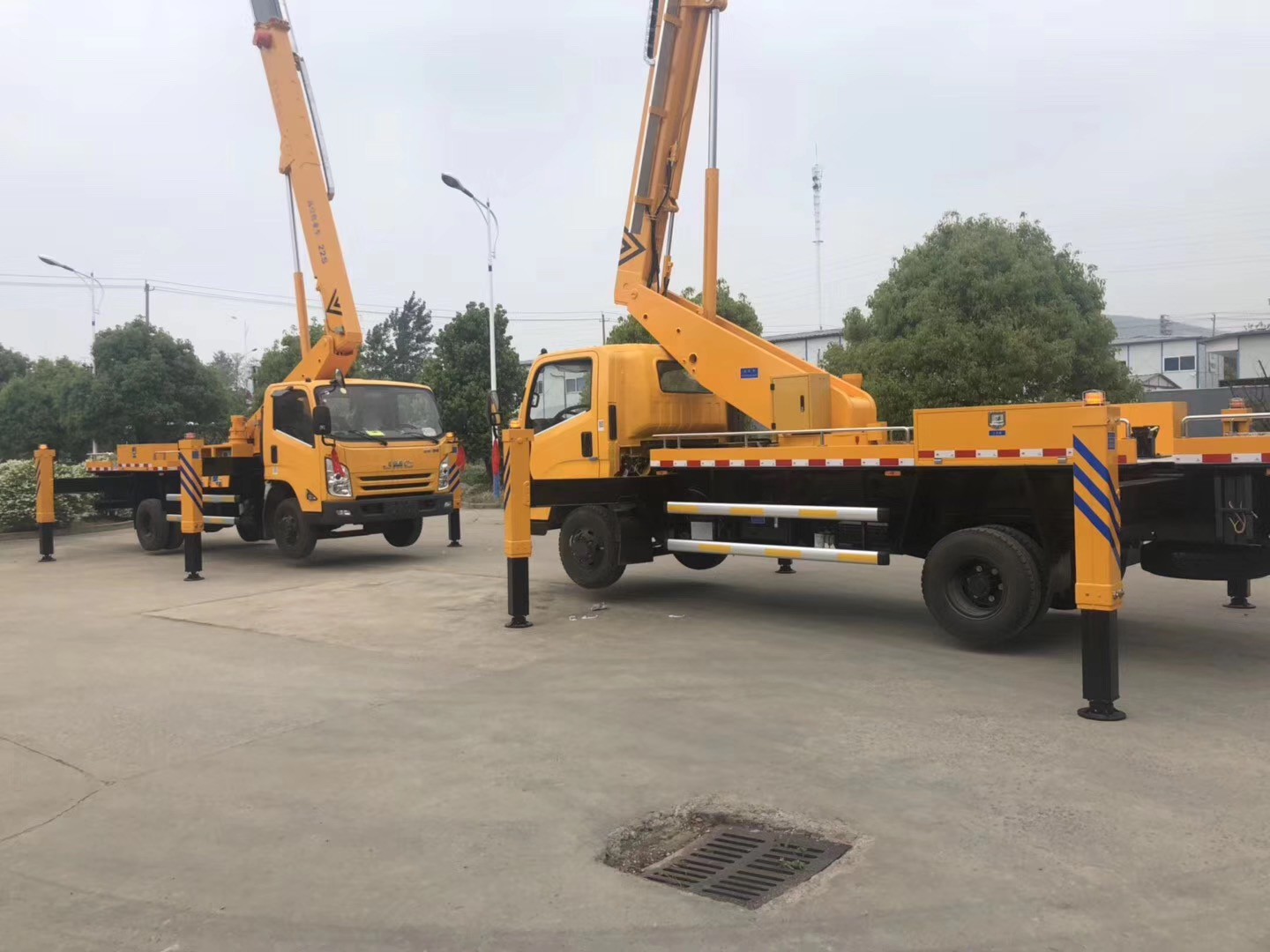

H style Stabilizers
Bucket Loading 200 kg
360°all rotation Slewing Turret
Hexagonal high tensile steel boom
 |
 |
 |
 |
Description
| Standard Features | ||||||
| Telescopic Boom Nos | 4 | |||||
| Max. Height /Outreach | 24 m /14m | |||||
| Outreach at max Height | 5 m | |||||
| Cross-section Boom Style | Hexagonal,Constructed from BS700 high tensile steel | |||||
| Slewing Turret | Hydraulic powered,360°all rotation | |||||
| Stabilizers | H style,independent operation on different outriggers | |||||
| Span Length | Transverse Directions 4000 mm,Longitudinal Directions 4000 mm | |||||
| Bucket Loading/Size | 200 kg /1.4×0.75×1.1m | |||||
| Controls System | *Dual Controls System (bucket control & chassis driver side ) ,*Emergency Manual Operation Control System | |||||
| Hydraulic System | *Electro-hydraulic proportional control system,*Stepless speed regulating,*Electric emergency pump,*Cylinder safety lock | |||||
| Safety Device | *Hydrostatic Leveling,*Emergency Power Unit(EPU) system,*Chain protection system for hydraulic oil pipes,*Emergency stop on all controls ,*Stabilizers Automatic Protection System,*Automatic interlocking device for getting on and off the truck. *Vehicle Level Testing device | |||||
| Power Take Off | By PTO from chassis truck transmission | |||||
| Optional Features: | □ Wireless Remote Control | |||||
| □ ECU Control System | ||||||
| □ Bucket Platform ±90°Rotating | ||||||
| □ Bucket Platform ±90°Rotating | ||||||
| □ Danfoss® Load Sensing Proportional Multiple Directional Valve | ||||||
| □ Full set of Danfoss® control assembly | ||||||
| □ Honeywell® Limit switch | ||||||
| □ Omron® Anti-rollover sensor | ||||||
