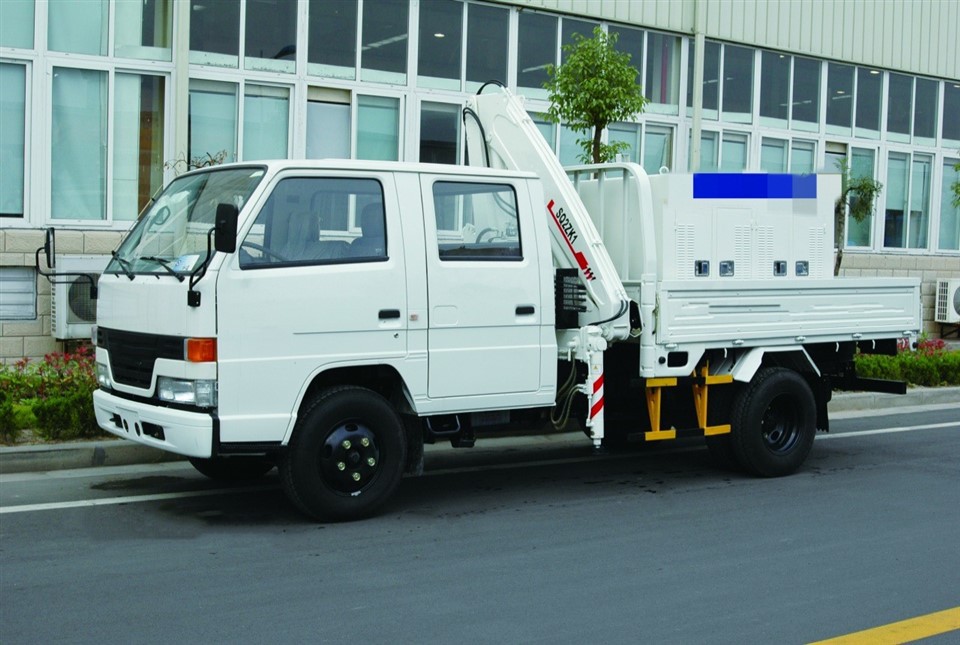

XCMG 2 Ton Knuckle Boom Crane

Model No.: CSCKBC002.
Extending Boom Nos: 3 sections.
Max Lifting Weight: 2,000kg.
Crane Weight: 670kg.
Lifting Moment: 32Kn·m.
Max Outreach: 4.78m.
Rotation Angle: 370°.
Hydraulic Pump: 20L/min.
Pressure: 20Mpa.

BRIEF

The XCMG 2-ton knuckle boom crane, manufactured by CSCTRUCK, is a robust and versatile lifting solution designed to meet demanding lifting requirements with precision and efficiency. This crane features a 3-section extending boom, providing a maximum outreach of 4.78 meters, enabling it to handle tasks requiring extended reach and flexibility.

With a maximum lifting capacity of 2,000 kg and a lifting moment of 32 kN·m, the crane ensures stable and reliable performance for a wide range of applications, from construction projects to industrial material handling. Its 370° rotation angle enhances operational flexibility, allowing smooth and precise positioning of loads in tight or confined spaces.

The XCMG knuckle boom crane operates efficiently thanks to its hydraulic system. It is powered by a 20 L/min hydraulic pump with a working pressure of 20 MPa, ensuring consistent power delivery and smooth control during lifting operations. This hydraulic configuration provides the necessary force for lifting heavy loads while maintaining energy efficiency.

Durability and reliability are key features of this crane, making it suitable for prolonged use in various environments. The crane’s compact design and advanced knuckle boom configuration enable it to adapt to tasks requiring both reach and maneuverability, enhancing productivity on the job site.

Manufactured by CSCTRUCK, a trusted name in the commercial vehicle and equipment industry, this crane reflects superior engineering and build quality. The XCMG 2-ton knuckle boom crane is an ideal choice for operators seeking a dependable, high-performance lifting solution with versatile applications across industries.

FEATURES

1. Max Lifting Capacity: Can lift a maximum weight of 2,000kg, suitable for heavy-duty tasks.

2. Boom Design: Features a 3-section extending boom, allowing for versatile and extended reach.

3. Lifting Performance: Offers a 32 kN·m lifting moment, delivering robust lifting power.

4. Extended Outreach: Provides a maximum outreach of 4.78 meters, ensuring access to hard-to-reach areas.

5. Hydraulic Efficiency: Equipped with a 20 L/min hydraulic pump and operates at a 20 MPa pressure, ensuring smooth and efficient operation.

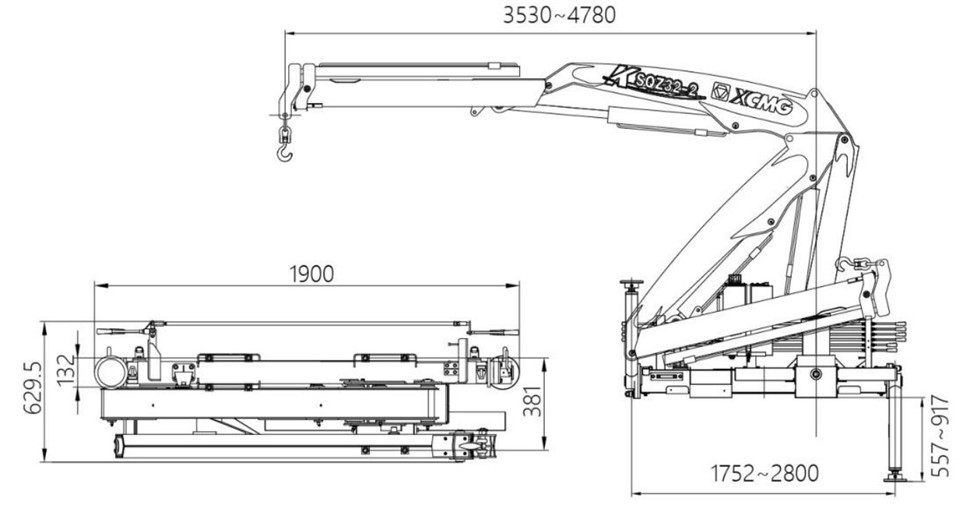

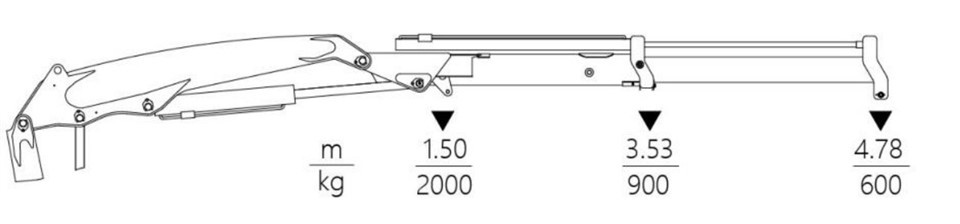

SPECIFICATION
